Datalogic PowerScan PM8300 Barcode Scanner Datalogic PowerScan PM8300 Barcode Scanner Datalogic PowerScan PM8300 Barcode Scanner Datalogic PowerScan PM8300 Barcode Scanner Datalogic PowerScan PM8300 Barcode Scanner
Datalogic Barcode Scanner and Mobile Handheld Computer

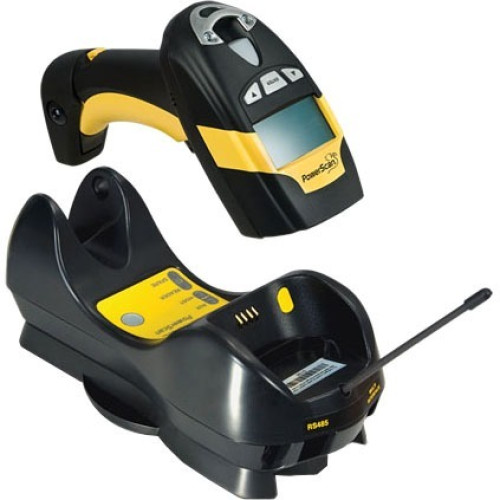

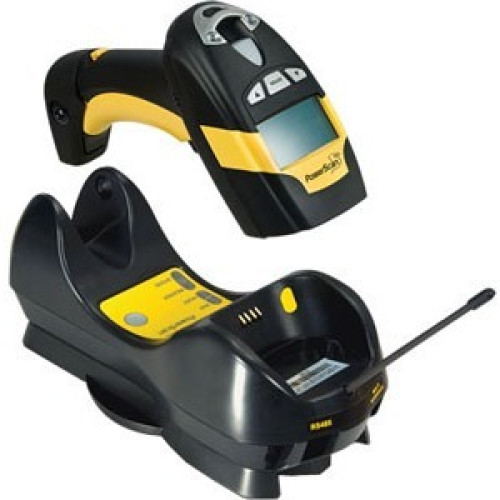

Datalogic PowerScan PM8300 Barcode Scanner
Part #: PM8300-DKAR910RK20 | SKU: 73447

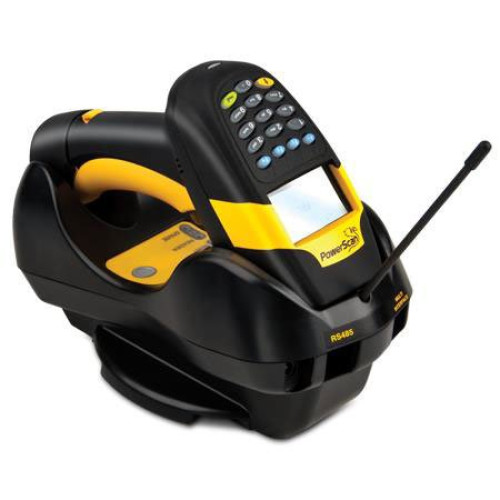

The PowerScan PM8300 series includes different models able to satisfy all customers' needs; the PM8300 is the basic cordless model; the PM8300-D intermediate model includes a display and 3-key keypad; and the ultimate PM8300-DK model features a display and a full 16-key keyboard. The PM8300- DK model significantly increases the sophistication of interaction with the host system and opens up new potential uses of the scanner, making it suitable for applications that would normally require a more expensive portable data terminal.

Datalogic PowerScan PM8300 Barcode Scanner

Part Details: 910 MHz, Kit, RS-232, Laser Scanner, Auto Range, Display/16-Key Keypad, Removable Battery (Kit inc. Laser Scanner, BC8030-910 Base Station, Cable CAB-433, Power Supply and US Line Cord)
Need a different version of the Datalogic PowerScan PM8300 Barcode Scanner? View all 48 configurations

Additional Information

Connection No
Form Factor No
Manufacturer No
Model Name PowerScan PM8300
Product Condition No
Scanner Capability 1D
Scanner Type Laser
PowerScan PM8300 Specs PowerScan PM8300 Specs (pdf)

Technical Information

  • Scan Rate: 35 scan/s
  • Connectivity Technology: Wireless
  • Light Source: Laser
  • Barcode Symbology Supported:
    • 1D / Linearcodes:
    • Autodiscriminates All Standard 1D Codes including GS1 DataBar linearcodes
    • Stacked Codes:
    • Code 16K
    • Code 49
    • GS1 DataBar Expanded Stacked
    • GS1 DataBar Stacked
    • GS1 DataBar Stacked Omnidirectional
    • 1D / Linearcodes:
    • Autodiscriminates All Standard 1D Codes including GS1 DataBar linearcodes
    • Stacked Codes:
    • Code 16K
    • Code 49
    • GS1 DataBar Expanded Stacked
    • GS1 DataBar Stacked
    • GS1 DataBar Stacked Omnidirectional
  • Maximum Scan Resolution: 7.50 mil
  • Depth of Field:
    • 2.70" - 18.30"@7.50 mil
    • 4.20" - 39.30"@10 mil
    • 5" - 58"@13 mil
    • 2.70" - 85"@20 mil
    • 6.30" - 11.15 ft@40 mil
    • 0.70" - 13.50"@55 mil

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Datalogic
  • Manufacturer: Datalogic S.p.A
  • Product Model: PM8300-DK
  • Product Name: PowerScan PM8300-DK Handheld Barcode Reader
  • Product Line: PowerScan

Physical Characteristics

  • Height: 8.3"
  • Width: 4.5"
  • Depth: 2.7"
  • Weight (Approximate): 13.90 oz

Interfaces/Ports

  • Host Interface: Serial

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • PowerScan PM8300-DK Handheld Barcode Reader
    • Base Station
    • Power Supply Cable
    • Power Cord with US Plug
    • PowerScan PM8300-DK Handheld Barcode Reader
    • Base Station
    • Power Supply Cable
    • Power Cord with US Plug

Battery Information

  • Battery Chemistry: Lithium Ion (Li-Ion)

Warranty

  • Limited Warranty: 3 Year

Network & Communication

  • Radio Frequency: Yes
Extended Details
