Datalogic PowerScan PD9530-DPM Barcode Scanner Datalogic PowerScan PD9530-DPM Barcode Scanner Datalogic PowerScan PD9530-DPM Barcode Scanner Datalogic PowerScan PD9530-DPM Barcode Scanner
Datalogic Barcode Scanner and Mobile Handheld Computer

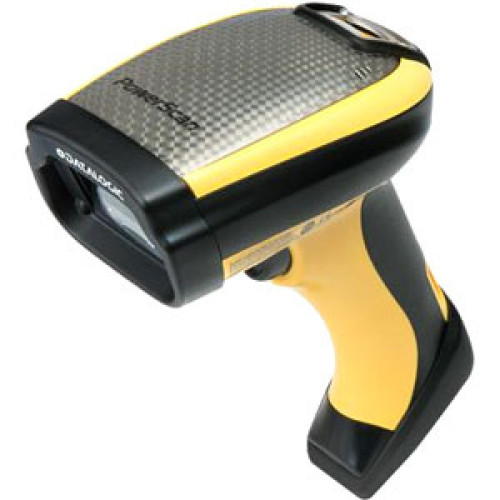

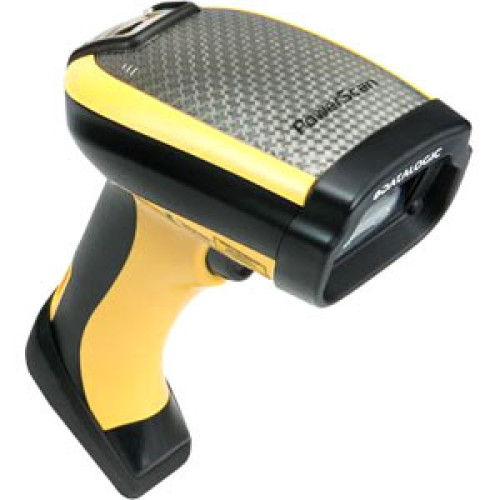

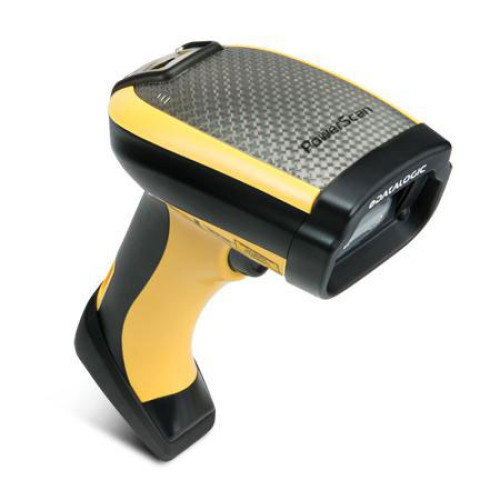

Datalogic PowerScan PD9530-DPM Barcode Scanner
Part #: PD9530-DPM | SKU: 221984

Warehouses, logistic centers and manufacturing plants depend on speed and reliability when managing goods and tracking merchandise in order to improve efficiency while reducing costs. Datalogic’s PowerScan PD9500 area imager, the latest generation of rugged 2D area imagers, is the perfect answer for these applications.

Datalogic PowerScan PD9530-DPM Barcode Scanner

Part Details: Datalogic PowerScan PD9530-DPM Handheld Barcode Scanner - Cable Connectivity - 1D, 2D - Imager - Omni-directional - Serial, USB, Keyboard Wedge - Yellow, Black
Need a different version of the Datalogic PowerScan PD9530-DPM Barcode Scanner? View all 3 configurations

Additional Information

Connectivity No
Form Factor No
Included Cables No
Manufacturer No
Model Name PowerScan PD9530-DPM
Product Condition No
Ruggedness No
Scan Pattern No
Scanner Capability 2D
Scanner Type No
PowerScan PD9530-DPM Specs PowerScan PD9530-DPM Specs (pdf)

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Scan Pattern: Omni-directional
  • Connectivity Technology: Cable
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • 1D / Linearcodes:
    • Autodiscriminates all standard 1D codes including GS1 DataBar linearcodes
    • 2D Codes:
    • Aztec Code
    • China Han Xin Code
    • Data Matrix
    • MaxiCode
    • Micro QR Code
    • QR Code
    • Postal Codes:
    • Postnet
    • Royal Mail Code (RM4SCC)
    • Stacked Codes:
    • EAN/JAN Composites
    • GS1 DataBar Composites
    • GS1 DataBar Expanded Stacked
    • GS1 DataBar Stacked GS1
    • DataBar Stacked Omnidirectional
    • MacroPDF
    • MicroPDF417
    • PDF417
    • UPC A/E Composites
    • 1D / Linearcodes:
    • Autodiscriminates all standard 1D codes including GS1 DataBar linearcodes
    • 2D Codes:
    • Aztec Code
    • China Han Xin Code
    • Data Matrix
    • MaxiCode
    • Micro QR Code
    • QR Code
    • Postal Codes:
    • Postnet
    • Royal Mail Code (RM4SCC)
    • Stacked Codes:
    • EAN/JAN Composites
    • GS1 DataBar Composites
    • GS1 DataBar Expanded Stacked
    • GS1 DataBar Stacked GS1
    • DataBar Stacked Omnidirectional
    • MacroPDF
    • MicroPDF417
    • PDF417
    • UPC A/E Composites
  • Maximum Scan Resolution: 4 mil
  • Depth of Field:
    • 1.10" - 2.40"@2 mil
    • 0.90" - 3"@2.50 mil
    • 0.40" - 3.50"@5 mil
    • 1" - 2"@4 mil - Data Matrix
    • 0.80" - 2.80"@5 mil - Data Matrix
    • 0.80" - 4.10"@10 mil - Data Matrix
    • 0.90" - 6.30"@13 mil - EAN13
    • 0.40" - 3.50"@5 mil - PDF
    • 0.40" - 4.90"@10 mil - PDF

General Information

  • Product Type: Handheld Barcode Scanner
  • Product Series: 9500
  • Brand Name: Datalogic
  • Manufacturer: Datalogic S.p.A
  • Product Model: PD9530-DPM
  • Product Name: PowerScan PD9530-DPM Handheld Barcode Scanner
  • Product Line: PowerScan

Physical Characteristics

  • Height: 8.3"
  • Width: 2.9"
  • Depth: 4.3"
  • Color:
    • Yellow
    • Black
  • Weight (Approximate): 11.60 oz

Interfaces/Ports

  • Host Interface:
    • Serial
    • USB
    • Keyboard Wedge
Extended Details

Recommended Accessories for Model: Datalogic PowerScan PD9530-DPM Barcode Scanner

  • Datalogic Gryphon I 4500 Accessory
    Part #: 90A051230 | SKU: 20153

    Cable - RS-232 - 9 Pin Female - Straight - CAB-350 (Power Supply available on pin 9 of the connector or through external power supply) - 6 ft.
    Price: $27.80

  • Datalogic Gryphon I 4500 Accessory
    Part #: 6003-0941 | SKU: 84498

    Power Cord - 110 Volt - For Datalogic Scanner - US - Standard 3 Prong
    Price: $18.68

  • Datalogic PowerScan 8000 Series Accessory
    Part #: HLD-P080 | SKU: 48472

    Mount - Datalogic PowerScan 9501 Retail Scanners - Holder - Desktop/Wall Mount
    Price: $24.20

  • Datalogic Accessories Accessory
    Part #: 90ACC1886 | SKU: 48584

    Cable - Power Cord - 2-Pin - United States
    Price: $16.34

  • Datalogic Gryphon I 4500 Accessory
    Part #: 8-0935 | SKU: 106875

    Power Adapter - 110 V AC - 220 V AC Input - AC/DC Regulated - RoHS (Requires Power Cord - 6003-XXXX)
    Price: $30.38
View All Options

Recommended Warranties for Model: Datalogic PowerScan PD9530-DPM Barcode Scanner

  • BCI True Support Service Contract
    Part #: TRUESUPPORT-BAS-SCAN-1YR | SKU: 634638

    TrueSupport Basic Plan for Scanners – 1 Year - Includes: Hardware Help Desk Support, RMA Triage, OEM Service contract mgmt.
    Price: $16.50

  • Datalogic PowerScan PD9500 Series Service Contract
    Part #: ZSC2PD95DPM51 | SKU: 401085

    Ease of Care Agreement - Datalogic - PowerScan 9501-DPM Evo Series - PD95XXDPM - 2 Days - 5 Years - Comprehensive
    MSRP: $280.00 Price: $192.23

  • Datalogic PowerScan PD9500 Series Service Contract
    Part #: ZSC2PD95DPM31 | SKU: 401084

    Ease of Care Agreement - Datalogic - PowerScan 9501-DPM Evo Series - PD95XXDPM - 2 Days - 3 Years - Comprehensive
    MSRP: $133.00 Price: $91.31

  • Datalogic PowerScan PD9500 Series Service Contract
    Part #: ZSC2PD95DPMR1 | SKU: 401086

    Ease of Care Agreement - Datalogic - PowerScan 9501-DPM Evo Series - PD95XXDPM - 2 Days - 1 Year Renewal - Comprehensive
    MSRP: $80.00 Price: $64.95

  • Datalogic PowerScan PD9500 Series Service Contract
    Part #: ZSN5PD95DPM31 | SKU: 401100

    Ease of Care Agreement - Datalogic - PowerScan 9501-DPM Evo Series - PD95XXDPM - 5 Days - 3 Years
    MSRP: $89.00 Price: $61.10
View All Options
