Datalogic PowerScan PBT7100 Barcode Scanner Datalogic PowerScan PBT7100 Barcode Scanner Datalogic PowerScan PBT7100 Barcode Scanner Datalogic PowerScan PBT7100 Barcode Scanner Datalogic PowerScan PBT7100 Barcode Scanner Datalogic PowerScan PBT7100 Barcode Scanner
Datalogic Barcode Scanner and Mobile Handheld Computer

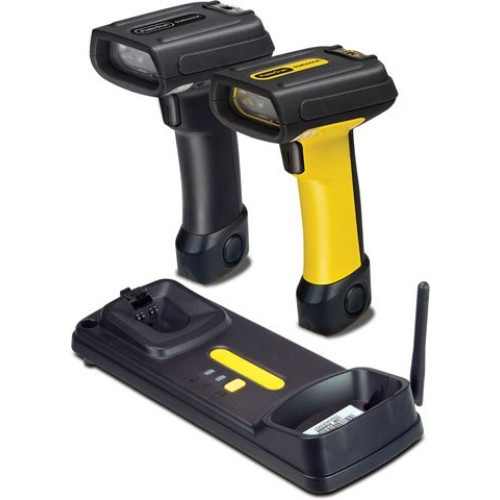

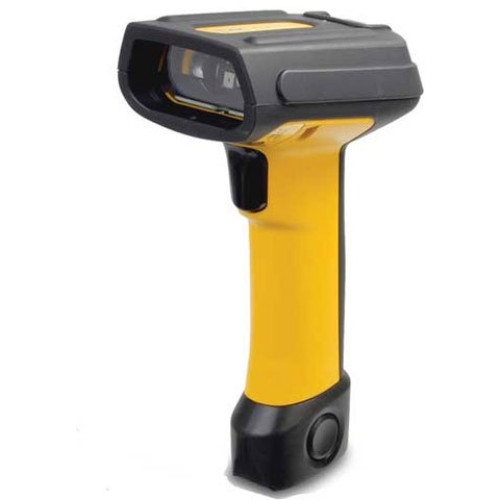

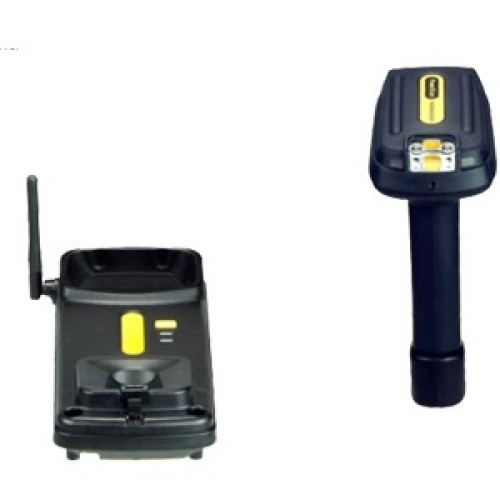

Datalogic PowerScan PBT7100 Barcode Scanner
Part #: PBT7100-YB-PTR | SKU: 66400

The Datalogic PowerScan PBT7100 features the fastest speed-to-read on the market - 390 scans/second. The PowerScan PBT7100 also features the Datalogic "Green Spot" and loud beeper for good read feedback, Bluetooth Wireless Technology with up to 100 m / 328 ft range and connectivity through the Base Station or directly to other Bluetooth devices. Durability is paramount, with water and particulate sealing rating of IP65, a drop resistance to 2.0 m / 6.5 ft and a 25kV electrostatic protection (air discharge), making the PowerScan PBT7100 ideal for tough environments.

Datalogic PowerScan PBT7100 Barcode Scanner

Part Details: Datalogic PowerScan PBT7100 Bar Code Reader - Wireless - Imager
Need a different version of the Datalogic PowerScan PBT7100 Barcode Scanner? View all 13 configurations

Additional Information

Color No
Communication Type No
Connectivity No
Form Factor No
Included Cables No
Manufacturer No
Model Name PowerScan PBT7100
Product Condition No
Ruggedness No
Scanner Type No
Specialty Encoding None
PowerScan PBT7100 Specs PowerScan PBT7100 Specs (pdf)

Technical Information

  • Scan Pattern: Linear
  • Scan Rate: 390 scan/s
  • Connectivity Technology: Wireless
  • Scanning Distance: 118.11"
  • Light Source: Laser
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • 1D / Linearcodes:
    • Auto discriminates all standard 1D codes including GS1 DataBar linearcodes
    • Postal Codes:
    • China Post
    • Stacked Codes:
    • GS1 DataBar Expanded Stacked
    • GS1 DataBar Stacked
    • GS1 DataBar Stacked Omni directional
    • 1D / Linearcodes:
    • Auto discriminates all standard 1D codes including GS1 DataBar linearcodes
    • Postal Codes:
    • China Post
    • Stacked Codes:
    • GS1 DataBar Expanded Stacked
    • GS1 DataBar Stacked
    • GS1 DataBar Stacked Omni directional
  • Maximum Scan Resolution: 3 mil
  • Depth of Field:
    • 0.60" - 5.50"@5 mil
    • 0 mil - 17.30"@7.50 mil
    • 0 mil - 23.60"@10 mil
    • 0 mil - 31.50"@13 mil
    • 0 mil - 46.90"@20 mil
    • 0.80" - 94.50"@40 mil
    • 2" - 118.10"@55 mil - Reflective
    • 5.10" - 17.39 ft@100 mil - Reflective

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Datalogic
  • Manufacturer: Datalogic S.p.A
  • Product Model: PBT7100
  • Product Name: PowerScan PBT7100 Barcode Reader
  • Product Line: PowerScan

Physical Characteristics

  • Height: 8"
  • Width: 3"
  • Depth: 4.5"
  • Color:
    • Yellow
    • Black
  • Weight (Approximate): 12.50 oz

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: China RoHS

Battery Information

  • Battery Chemistry: Lithium Ion (Li-Ion)

Network & Communication

  • Bluetooth: Yes

Warranty

  • Limited Warranty: 3 Year
Extended Details
