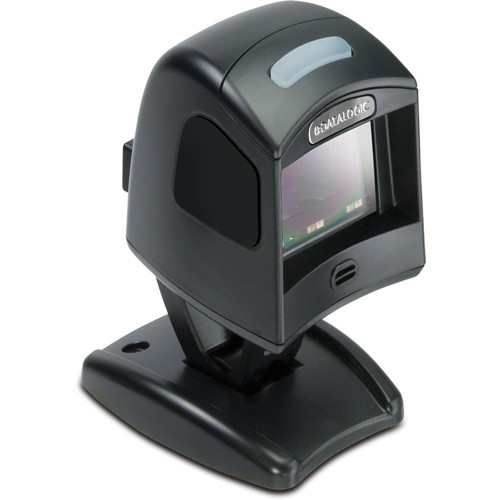

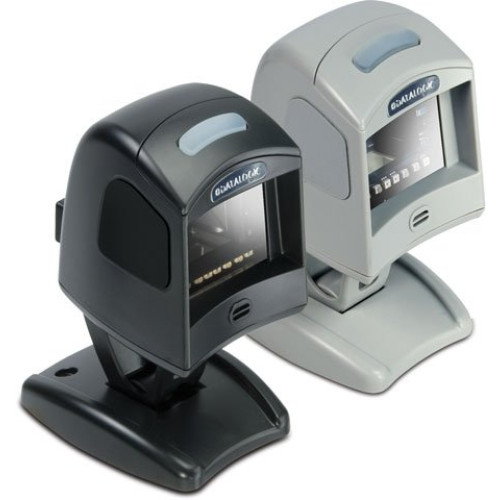

Datalogic Magellan 1000i Barcode Scanner

Datalogic Barcode Scanner and Mobile Handheld Computer

Datalogic Magellan 1000i Barcode Scanner
Part #: MG10-2041-000-411R | SKU: 240813

The Magellan 1000i is designed for small-counter retail environments incorporates several new design wins for the user. Our design objectives were simple: improve checkout productivity while protecting the customer's investment by adding capabilities that would extend the typical life of the scanner. We developed a new bar code scanner that is faster at capturing of hard-to-read labels, has outstanding ergonomics especially when handheld use is required, and has an excellent price to value ratio. The Magellan 1000i will also be very effective at protecting the user's investment by potentially extending the useful life of the scanner. Datalogic's new imaging technology has no moving parts providing excellent reliability and durability. This new technology also has a significant software component that will make adding new features and enhancements much easier. Features such as RFID coupling and new code symbologies can be enabled via software changes. And, like the entire Magellan family, the Magellan 1000i has multi-interface support built into each scanner that allows a new interface with a simple program parameter change and a cable switch.

Datalogic Magellan 1000i Barcode Scanner

Part Details: Usb Kit, Black 5V With Targeting Mode, 12 Ft Usb Cable

Need a different version of the Datalogic Magellan 1000i Barcode Scanner? View all 115 configurations

Additional Information

Connection	USB
Included Cables	USB
Manufacturer	No
Model Name	Magellan 1000i
Product Condition	No
Specialty Encoding	None

Magellan 1000i Specs (pdf)

Technical Information

Connectivity Technology: Cable
Barcode Symbology Supported:
- Retail Codes:
- UPC Versions A&E
- UPC Supplementals (Bookland & Coupon Code)
- UPC Add-ons (sub 2 or P2, sub 5 or P5 & C128)
- Dual Barcodes for Japan (2 label read)
- Reduced Space Symbology (RSS) RSS-14, RSS expanded, and RSS Stacked Omni-directional)
- EAN 8 & 13 with full expansion 8 to 13
- JAN 8 & 13 with full expansion 8 to 13
- EAN/JAN two label
- UCC/EAN 128
- Italian Pharmacode
- Supports GTIN
- Industrial Codes:
- Code 39 (with full ASCII)
- Code 128 (Up to 80 characters, including Code 39 conversions)
- Code 93
- Interleaved 2 of 5
- Standard 2 of 5
- Codabar
- MSI/Plessey
- Retail Codes:
- UPC Versions A&E
- UPC Supplementals (Bookland & Coupon Code)
- UPC Add-ons (sub 2 or P2, sub 5 or P5 & C128)
- Dual Barcodes for Japan (2 label read)
- Reduced Space Symbology (RSS) RSS-14, RSS expanded, and RSS Stacked Omni-directional)
- EAN 8 & 13 with full expansion 8 to 13
- JAN 8 & 13 with full expansion 8 to 13
- EAN/JAN two label
- UCC/EAN 128
- Italian Pharmacode
- Supports GTIN
- Industrial Codes:
- Code 39 (with full ASCII)
- Code 128 (Up to 80 characters, including Code 39 conversions)
- Code 93
- Interleaved 2 of 5
- Standard 2 of 5
- Codabar
- MSI/Plessey
Maximum Scan Resolution: 5 mil

General Information

Product Type: Desktop Barcode Scanner
Brand Name: Datalogic
Manufacturer: Datalogic S.p.A
Product Model: 1000i
Product Name: Magellan 1000i Barcode Reader
Product Line: Magellan

Physical Characteristics

Height: 3.3"
Width: 2.8"
Depth: 3.7"
Color: Black
Weight (Approximate): 7 oz

Interfaces/Ports

Host Interface: Multi-interface

Other

Green Compliant: Yes
Green Compliance Certificate/Authority: RoHS
Package Contents:
- Magellan 1000i Barcode Reader
- 12' USB POT Cable
- Magellan 1000i Barcode Reader
- 12' USB POT Cable

Warranty

Limited Warranty: 2 Year
