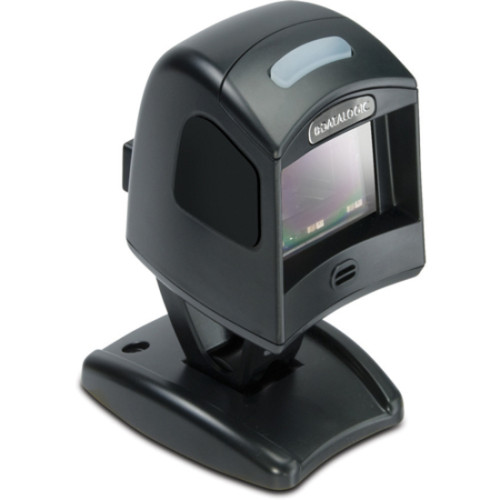

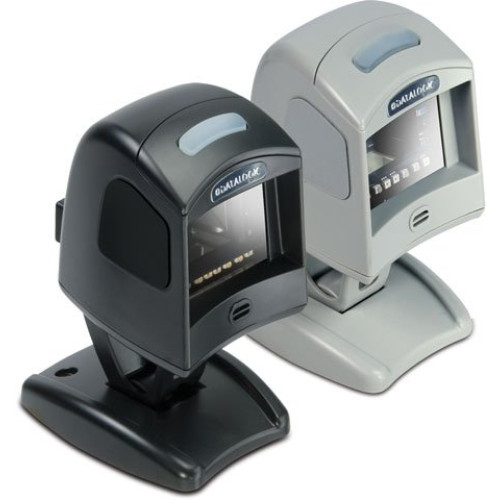

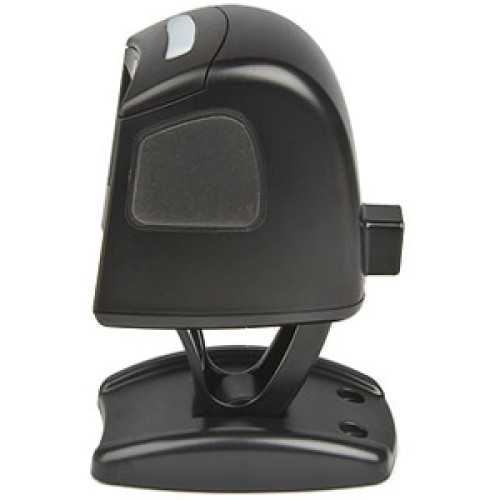

Datalogic Magellan 1000i Barcode Scanner

Datalogic Barcode Scanner and Mobile Handheld Computer

Datalogic Magellan 1000i Barcode Scanner
Part #: MG10-0010-101-106 | SKU: 23225

The Magellan 1000i is designed for small-counter retail environments incorporates several new design wins for the user. Our design objectives were simple: improve checkout productivity while protecting the customer's investment by adding capabilities that would extend the typical life of the scanner. We developed a new bar code scanner that is faster at capturing of hard-to-read labels, has outstanding ergonomics especially when handheld use is required, and has an excellent price to value ratio. The Magellan 1000i will also be very effective at protecting the user's investment by potentially extending the useful life of the scanner. Datalogic's new imaging technology has no moving parts providing excellent reliability and durability. This new technology also has a significant software component that will make adding new features and enhancements much easier. Features such as RFID coupling and new code symbologies can be enabled via software changes. And, like the entire Magellan family, the Magellan 1000i has multi-interface support built into each scanner that allows a new interface with a simple program parameter change and a cable switch.

Datalogic Magellan 1000i Barcode Scanner

Part Details: RS-232, EZ Kit, No Button, POT Cable, US Power supply, Stand, Color: Black

Need a different version of the Datalogic Magellan 1000i Barcode Scanner? View all 115 configurations

Additional Information

Included Cables	USB
Manufacturer	No
Model Name	Magellan 1000i
Product Condition	No
Specialty Encoding	None

Magellan 1000i Specs (pdf)

Technical Information

Barcode Dimension: 1D
Scan Pattern: Omni-directional
Connectivity Technology: Cable
Barcode Symbology Supported:
- UPC Versions A&E
- EAN 8 & 13 with full expansion 8 to 13
- Dual Barcodes for Japan (2 label read)
- UPC Add-ons sub 2 or P2
- UPC Add-on sub 5 or P5
- UPC Supplementals (Bookland & Coupon Code)
- RSS-14
- RSS-14 Expanded
- RSS-14 Stacked
- JAN 8 & 13 with full expansion 8 to 13
- EAN/JAN Two Label
- UCC/EAN 128
- Italian Pharmacode
- Code 39 Full ASCII
- Code 128
- Code 93
- Interleaved 2 of 5
- Standard 2 of 5
- Codabar
- MSI/PLESSEY
- UPC Versions A&E
- EAN 8 & 13 with full expansion 8 to 13
- Dual Barcodes for Japan (2 label read)
- UPC Add-ons sub 2 or P2
- UPC Add-on sub 5 or P5
- UPC Supplementals (Bookland & Coupon Code)
- RSS-14
- RSS-14 Expanded
- RSS-14 Stacked
- JAN 8 & 13 with full expansion 8 to 13
- EAN/JAN Two Label
- UCC/EAN 128
- Italian Pharmacode
- Code 39 Full ASCII
- Code 128
- Code 93
- Interleaved 2 of 5
- Standard 2 of 5
- Codabar
- MSI/PLESSEY
Maximum Scan Resolution: 5 mil
Depth of Field:
- 0.50" - 1.75"@5 mil
- 0.25" - 2.25"@7.50 mil
- 0 mil - 5"@10 mil
- 0 mil - 6"@13 mil - UPC
- 0 mil - 6.75"@20 mil

General Information

Product Type: Desktop Barcode Scanner
Brand Name: Datalogic
Manufacturer: Datalogic S.p.A
Product Model: 1000i
Product Name: Magellan 1000i Barcode Reader
Product Line: Magellan

Physical Characteristics

Height: 3.3"
Width: 2.8"
Depth: 3.7"
Color: Black
Weight (Approximate): 7 oz

Interfaces/Ports

Host Interface: Multi-interface

Other

Package Contents:
- Magellan 1000i Barcode Reader
- 12ft.RS-232 Cable and Stand
- Magellan 1000i Barcode Reader
- 12ft.RS-232 Cable and Stand
Certifications & Standards:
- Electrical:
- Gost R
- TÜV
- UL
- cUL
- NOM
- Emissions:
- Complies to FCC
- EN 55022
- AS/NZS CISPR 22
- VCCI
- CNS 13438
- ICES-003
- Restriction of Hazardous Substances:
- Complies to EU RoHS
Additional Information:
- Supported Interfaces:
- RS-232
- USB
- IBM USB
- Keyboard Wedge
- Wand emulation
- IBM 46xx / RS-485
- Input Voltage:

Warranty

Limited Warranty: 2 Year
