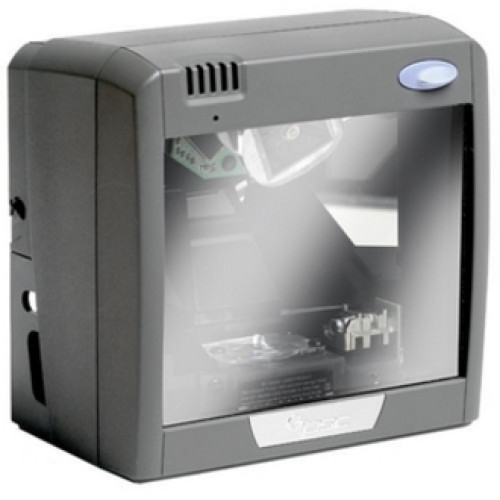

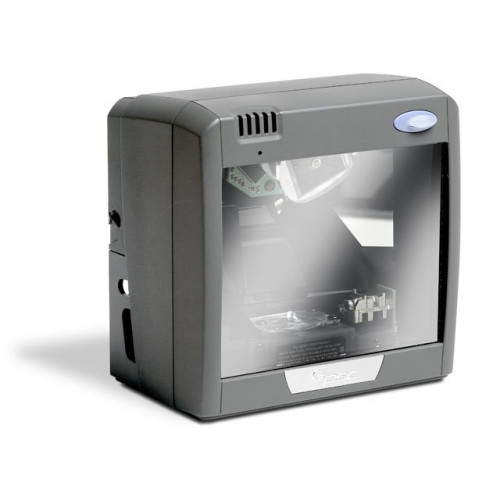

Datalogic Magellan 2200VS Barcode Scanner Datalogic Magellan 2200VS Barcode Scanner Datalogic Magellan 2200VS Barcode Scanner
Datalogic Barcode Scanner and Mobile Handheld Computer

Datalogic Magellan 2200VS Barcode Scanner
Part #: M2200-00111-0104 | SKU: 48219

The Magellan 2200VS vertical scanner from Datalogic was designed specifically to optimize performance for medium to high throughput applications in grocery, drug, variety, and convenience stores. Unlike competitive vertical scanners, the Magellan 2200VS offers category leading scanning performance, unique value added software features like Productivity Index Reporting, and our advanced FirstStrike decoding software. And because it's based on the Magellan platform, it does so much more.

Datalogic Magellan 2200VS Barcode Scanner

Part Details: RS-232 serial interface. Includes US Power Supply and serial DB9 cable.
Need a different version of the Datalogic Magellan 2200VS Barcode Scanner? View all 48 configurations

Additional Information

Included Cables USB
Manufacturer No
Model Name Magellan 2200VS
Product Condition No
Specialty Encoding None
Magellan 2200VS Specs Magellan 2200VS Specs (pdf)

Technical Information

  • Scan Pattern: Linear
  • Connectivity Technology: Cable
  • Light Source: Laser
  • Barcode Symbology Supported:
    • UPC-A
    • UPC-E
    • UPC Supplementals
    • Bookland
    • Coupon Code
    • UPC P5 Add-ons
    • UPC P2 Add-ons
    • C128
    • RSS-14
    • RSS-Stacked
    • RSS-Expanded
    • EAN-8
    • EAN-13
    • JAN-8
    • JAN-13
    • EAN/JAN Two Label
    • UCC/EAN 128
    • Code 39 Full ASCII
    • Code 128
    • Code 93
    • Interleaved 2 of 5
    • Standard 2 of 5
    • Italian Pharmacode
    • Codabar (NW7)
    • MSI/PLESSEY
    • UPC-A
    • UPC-E
    • UPC Supplementals
    • Bookland
    • Coupon Code
    • UPC P5 Add-ons
    • UPC P2 Add-ons
    • C128
    • RSS-14
    • RSS-Stacked
    • RSS-Expanded
    • EAN-8
    • EAN-13
    • JAN-8
    • JAN-13
    • EAN/JAN Two Label
    • UCC/EAN 128
    • Code 39 Full ASCII
    • Code 128
    • Code 93
    • Interleaved 2 of 5
    • Standard 2 of 5
    • Italian Pharmacode
    • Codabar (NW7)
    • MSI/PLESSEY
  • Depth of Field: 8"@

General Information

  • Product Type: Desktop Barcode Scanner
  • Brand Name: Datalogic
  • Manufacturer: Datalogic S.p.A
  • Product Model: 2200VS
  • Product Name: Magellan 2200VS Barcode Reader
  • Product Line: Magellan

Physical Characteristics

  • Height: 6"
  • Width: 6"
  • Depth: 3.8"
  • Weight (Approximate): 2.50 lb

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Package Contents:
    • Magellan 2200VS Barcode Reader
    • Standard Counter Mount
    • 15ft. RS-232 9-pin Cable
    • US/Canada/Puerto Rico Power Supply
    • Magellan 2200VS Barcode Reader
    • Standard Counter Mount
    • 15ft. RS-232 9-pin Cable
    • US/Canada/Puerto Rico Power Supply
  • Certifications & Standards:
    • Electrical:
    • EN60950 (TÜV Europe)
    • PSE-Mark (Japan)
    • UL 60950 (USA)
    • CSA 60950 (Canada)
    • Emissions:
    • CISPR22-B (World)
    • FCC part 15 Class B (USA)
    • VCCI-B (Japan)
    • EN 55022-B (Europe)
    • NOM (Mexico)
    • Laser Safety:
    • CDRH Class IIa (USA/Canada)
    • EN 60825-1 Class 1 (Europe)
    • IEC 60825-1 Class 1 (World)
    • IEC 60825 Class 1 (Europe)
  • Additional Information:
    • Supported Interfaces:
    • SerialIBM 46XXUSBKeyboard Wedge

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Warranty

  • Limited Warranty: 1 Year
