Datalogic Gryphon I GD4400 2D Barcode Scanner Datalogic Gryphon I GD4400 2D Barcode Scanner Datalogic Gryphon I GD4400 2D Barcode Scanner Datalogic Gryphon I GD4400 2D Barcode Scanner
Datalogic Barcode Scanner and Mobile Handheld Computer

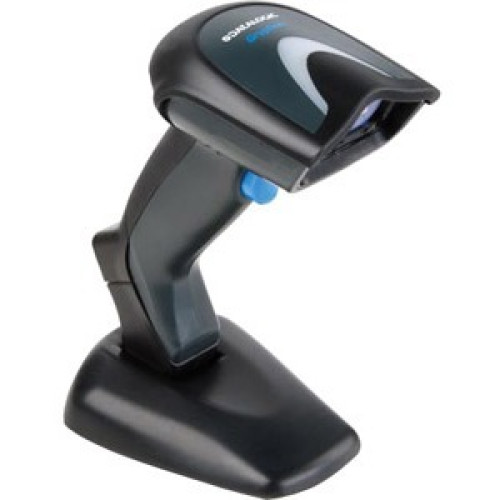

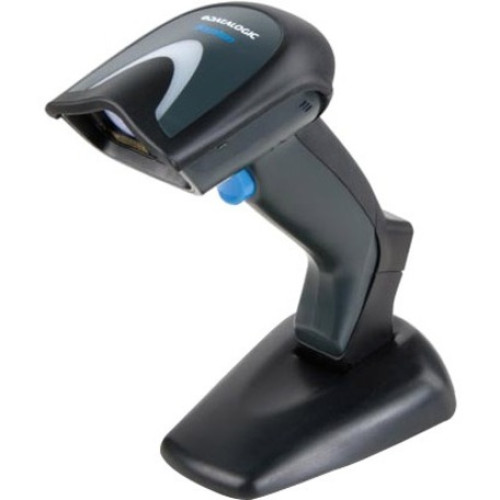

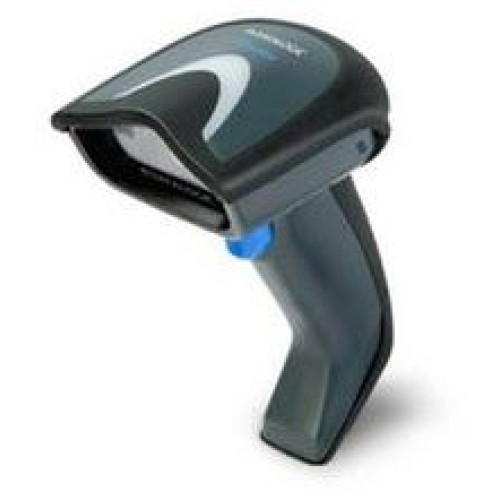

Datalogic Gryphon I GD4400 2D Barcode Scanner
Part #: GD4430-BKK3 | SKU: DAT172672

The Gryphon 4000 series represents the premium level of data collection devices from Datalogic Scanning for general purpose applications. Designed with people in mind, the Gryphon I GD4400-B All-in-One imager blends advanced 2D decoding with motion sensing technology, producing a user-friendly device with outstanding performance.

Datalogic Gryphon I GD4400 2D Barcode Scanner

Part Details: Kit, KBW, 2D Imager, USB/RS-232/KBW Multi-Interface, Black (Incl. Scanner and Cable 90G001010)
Need a different version of the Datalogic Gryphon I GD4400 2D Barcode Scanner? View all 66 configurations

Additional Information

Form Factor Handheld
Included Cables USB
Manufacturer Datalogic
Model Name Gryphon I GD4400 2D
Product Condition No
Scan Pattern No
Scanner Capability 2D
Scanner Type Imager
Specialty Encoding None
Datalogic Gryphon I GD4400 2D Specs Datalogic Gryphon I GD4400 2D Specs (pdf)

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Scan Pattern: Omni-directional
  • Connectivity Technology: Cable
  • Light Source: Laser
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • 1D / Linearcodes:
    • Autodiscriminates All Standard 1D Codes Including GS1 DataBar Linearcodes
    • 2D Codes:
    • Aztec Code
    • China Han Xin Code
    • Data Matrix
    • MaxiCode
    • Micro QR Code
    • QR Code
    • Postal Codes:
    • Australian Post
    • British Post
    • China Post
    • IMB
    • Japanese Post
    • KIX Post
    • Korea Post
    • Planet Code
    • Postnet
    • Royal Mail Code (RM4SCC)
    • Stacked Codes:
    • EAN/JAN Composites
    • GS1 DataBar Composites
    • GS1 DataBar Expanded Stacked
    • GS1 DataBar Stacked
    • GS1 DataBar Stacked Omnidirectional
    • MacroPDF
    • MicroPDF417
    • PDF417
    • UPC A/E Composites
    • 1D / Linearcodes:
    • Autodiscriminates All Standard 1D Codes Including GS1 DataBar Linearcodes
    • 2D Codes:
    • Aztec Code
    • China Han Xin Code
    • Data Matrix
    • MaxiCode
    • Micro QR Code
    • QR Code
    • Postal Codes:
    • Australian Post
    • British Post
    • China Post
    • IMB
    • Japanese Post
    • KIX Post
    • Korea Post
    • Planet Code
    • Postnet
    • Royal Mail Code (RM4SCC)
    • Stacked Codes:
    • EAN/JAN Composites
    • GS1 DataBar Composites
    • GS1 DataBar Expanded Stacked
    • GS1 DataBar Stacked
    • GS1 DataBar Stacked Omnidirectional
    • MacroPDF
    • MicroPDF417
    • PDF417
    • UPC A/E Composites
  • Maximum Scan Resolution: 7 mil
  • Depth of Field:
    • 1.60" - 7.50"@5 mil - Code 39
    • 0.40" - 11.80"@10 mil - Code 39
    • 0.80" - 6.30"@10 mil - Data Matrix
    • 0 mil - 9.30"@15 mil - Data Matrix
    • 0.60" - 15.70"@13 mil - EAN-13
    • 0.20" - 8.60"@10 mil - PDF417
    • 1.20" - 4.90"@10 mil - QR Code

General Information

  • Product Type: Handheld Barcode Scanner
  • Product Series: 4000
  • Brand Name: Datalogic
  • Manufacturer: Datalogic S.p.A
  • Product Model: GD4430
  • Product Name: Gryphon GD4430 Handheld Barcode Reader
  • Product Line: Gryphon

Physical Characteristics

  • Height: 7.1"
  • Width: 2.8"
  • Depth: 3.9"
  • Color: Black
  • Weight (Approximate): 6.90 oz

Interfaces/Ports

  • Host Interface:
    • USB
    • Serial
    • Keyboard Wedge

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • China RoHS
    • RoHS
  • Package Contents:
    • Gryphon GD4430 Handheld Barcode Reader
    • Cable
    • Gryphon GD4430 Handheld Barcode Reader
    • Cable

Warranty

  • Limited Warranty: 5 Year
Extended Details

Recommended Accessories for Model: Datalogic Gryphon I GD4400 2D Barcode Scanner

  • Datalogic Gryphon I 4500 Accessory
    Part #: 90A051230 | SKU: 20153

    Cable - RS-232 - 9 Pin Female - Straight - CAB-350 (Power Supply available on pin 9 of the connector or through external power supply) - 6 ft.
    Price: $27.80

  • Datalogic Gryphon I 4500 Accessory
    Part #: 90G001092 | SKU: 31502

    Cable - Datalogic Magellan - RS-232 - 6 Foot - Grey - Serial Cable
    Price: $33.80

  • Datalogic Gryphon I 4500 Accessory
    Part #: 90A051330 | SKU: 22154

    Cable - RS-232 - 9 Pin Female - Coiled - CAB-362 - External Power - Requires Power Supply - 6 ft
    Price: $32.00

  • Datalogic Gryphon I 4500 Accessory
    Part #: 90A051710 | SKU: 71517

    Cable - RS-232 - Serial Data Transfer Cable - 9 Pin - Male - Beetle POS - Straight - CAB-389 - Power Off Terminal - 6.5 ft.
    Price: $26.60

  • Datalogic Gryphon & Heron Accessory
    Part #: STD-G040-BK | SKU: 72393

    Stand - Datalogic Gryphon GD4100 - Basic Stand - G040 - Dark Grey
    Price: $31.55
View All Options

Recommended Warranties for Model: Datalogic Gryphon I GD4400 2D Barcode Scanner

  • Datalogic QS6500BT Accessory
    Part #: 11-0360 | SKU: 76673

    Holder - Multi-Purpose - Black
    Price: $26.29

  • Datalogic Service Contracts Service Contract
    Part #: W-GD44-R | SKU: 280400

    Ease of Care Agreement - Datalogic Gryphon I GD4400 2D - 2 Day - Comprehensive - 1 Year Extended Service Renewal - Maintenance - Parts & Labor - Physical Service
    Price: $24.68

  • Datalogic Service Contract
    Part #: E-GD44-R | SKU: 418047

    Ease of Care Agreement - Datalogic Gryphon I GD4400 2D - 5 Day - 1 Year Extended Service Renewal - Carry-in - Maintenance - Parts & Labor - Physical Service
    Price: $20.68

  • Datalogic Gryphon I GD4400 2D Service Contract
    Part #: Q-GD44-R | SKU: 499228

    Ease of Care Agreement - Datalogic Gryphon I GD4400 2D - Overnight Replacement - Comprehensive - 1 Year Renewal
    Price: $27.60

  • Datalogic Service Contracts Service Contract
    Part #: Q-GD44-3 | SKU: 156437

    Gryphon 2D GD4400, Ease of Care Overnight Replacement Comprehensive
View All Options
