Datalogic Gryphon I GD4100 Barcode Scanner Datalogic Gryphon I GD4100 Barcode Scanner Datalogic Gryphon I GD4100 Barcode Scanner Datalogic Gryphon I GD4100 Barcode Scanner Datalogic Gryphon I GD4100 Barcode Scanner
Datalogic Barcode Scanner and Mobile Handheld Computer

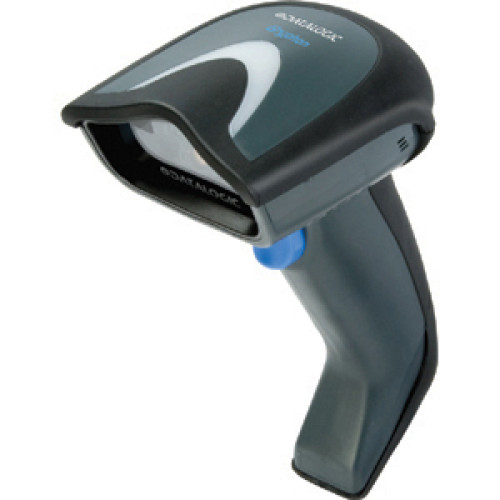

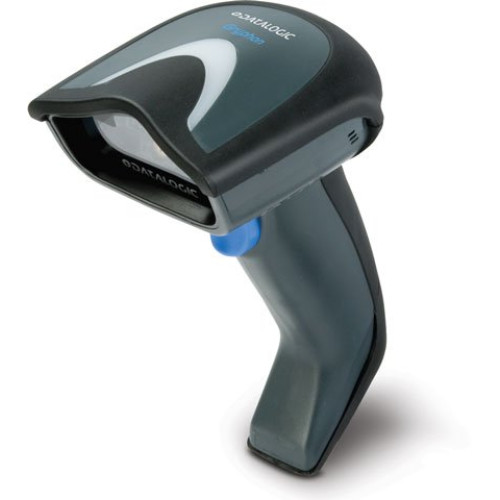

Datalogic Gryphon I GD4100 Barcode Scanner
Part #: GD4110-BKK20 | SKU: 72369

The Datalogic Gryphon I GD4100's stylish enclosures, reduced weight and physical dimensions together with a 1.8 m / 5.9 ft drop resistance and IP42 sealing rating produce a reliable, ergonomic solution with the combined excellence of ease of use and advanced reading capabilities.

Datalogic Gryphon I GD4100 Barcode Scanner

Part Details: Datalogic Gryphon GD4110 Handheld Barcode Scanner Kit - Cable Connectivity - 325 scan/s - 23.62" Scan Distance - 1D - LED - CCD - Linear - Serial - Black
Need a different version of the Datalogic Gryphon I GD4100 Barcode Scanner? View all 13 configurations

Additional Information

Connection No
Form Factor No
Included Cables USB
Manufacturer No
Model Name Gryphon I GD4100
Product Condition No
Scanner Capability 1D
Scanner Type No
Gryphon I GD4100 Specs Gryphon I GD4100 Specs (pdf)
Decoding Capability
  • 1D / Linear codes
    • Autodiscriminates all standard 1D codes including GS1 DataBar linear codes
  • Stacked Codes
    • GS1 DataBar Expanded Stacked
    • GS1 DataBar Stacked
    • GS1 DataBar Stacked Omnidirectional
Electrical
  • Current
    • Operating (Typical)
      • GD4110
        225 mA @ 5 VDC
      • GD4130
        245 mA @ 5 VDC
    • Standby/Idle (Typical)
      • 120 mA @ 5 VDC
  • Input Voltage
    • GD4110
      4.5 - 14.0 VDC
    • GD4130
      4.75 - 5.25 VDC
Environmental
  • Ambient Light
    • 0 - 100,000 lux
  • Drop Resistance
    • Withstands repeated drops from 1.8 m / 5.9 ft onto a concrete surface
  • ESD Protection (Air Discharge)
    • 16 kV
  • Humidity (Non-Condensing)
    • 0 - 90%
  • Particulate and Water Sealing
    • IP42
  • Temperature
    • Operating
      • 0 to 55 ?C / 32 to 131 ?F
    • Storage/Transport
      • -20 to 70 ?C / -4 to 158 ?F
Interfaces
  • RS-232 / IBM 46XX / USB Multi-Interface
  • RS-232 / USB / Keyboard Wedge / Wand Multi-Interface
Physical Characteristics
  • Colors Available
    • Black
    • White
  • Dimensions
    • 18.1 x 7.1 x 10.0 cm / 7.1 x 2.8 x 3.9 in
  • Weight
    • 169.0 g / 6.0 oz
Reading Performance
  • Imager Sensor
    • CCD Solid-State
  • Light Source
    • Illumination
      • Dual LED Array 630 - 670 nm
  • Print Contrast Ratio (Minimum)
    • 15%
  • Read Rate (Maximum)
    • 325 reads/sec.
  • Reading Angle
    • Pitch
      • 65?
    • Roll (Tilt)
      • 35?
    • Skew (Yaw)
      • 65?
  • Reading Indicators
    • Beeper (Adjustable Tone and Volume)
    • Datalogic 'Green Spot' Good Read Feedback
    • Good Read LED
  • Resolution (Maximum)
    • 0.076 mm / 3 mils
Reading Ranges - Typical Depth of Field
  • Minimum distance determined by symbol length and scan angle.
  • Printing resolution, contrast, and ambient light dependent.
  • 5 mils
    • 6.0 to 18.0 cm / 2.3 to 7.0 in
  • 7.5 mils
    • 3.5 to 30.0 cm / 1.4 to 11.7 in
  • 10 mils
    • 2.0 to 45.0 cm / 0.8 to 17.7 in
  • 13 mils
    • 3.0 to 60.0 cm / 1.2 to 23.4 in
  • 20 mils
    • 3.0 to 80.0 cm / 1.2 to 31.2 in
Safety & Regulatory
  • Agency Approvals
    • The product meets necessary safety and regulatory approvals for its intended use.
    • The Quick Reference Guide for this product can be referred to for a complete list of certifications.
  • Environmental Compliance
    • Complies to China RoHS
    • Complies to EU RoHS
  • LED Classification
    • IEC 60825-1 Class 1 LED Product
Utilities
  • Datalogic Aladdin
    • Datalogic Aladdin configuration program is available for download at no charge
  • OPOS / JavaPOS
    • JavaPOS Utilities are available for download at no charge
    • OPOS Utilities are available for download at no charge
  • Remote Host Download
    • Lowers service costs and improves operations
      • GD4110
Warranty
  • 5-Year Factory Warranty
