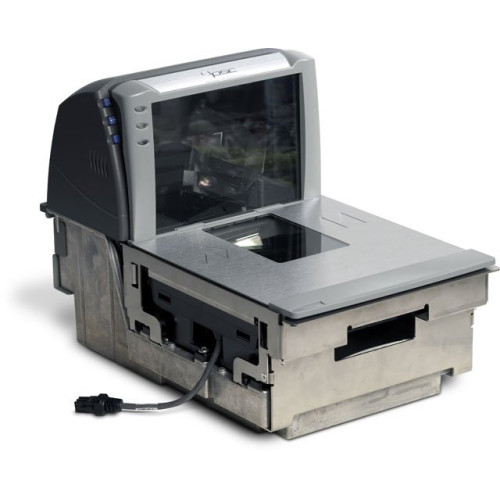

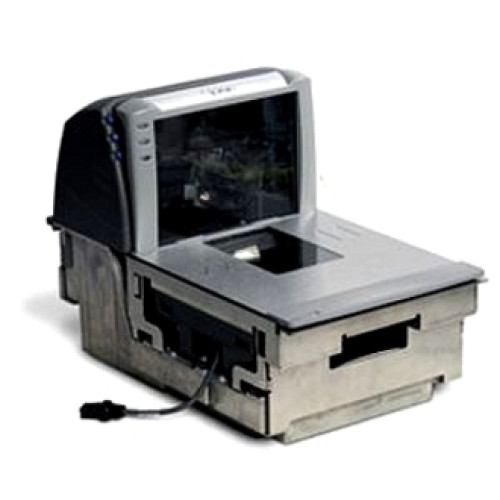

Datalogic Magellan 9500 Omega Barcode Scanner
Part #: 95303-020102-0301A | SKU: 20261

The Magellan 9500 provides retailers with the highest performing scanner/scale available for large volume point-of-sale applications combined with Sensormatic ScanMax Pro electronic article surveillance equipment in one convenient, highly effective system.

Datalogic Magellan 9500 Omega Barcode Scanner

Part Details: Datalogic Magellan 9500 Bar Code Reader - Cable Connectivity - 1D - Omni-directional - Multi-interface

Need a different version of the Datalogic Magellan 9500 Omega Barcode Scanner? View all 47 configurations

Additional Information

Included Cables	USB
Manufacturer	No
Model Name	Magellan 9500 Omega
Product Condition	No
Specialty Encoding	None

Magellan 9500 Omega Specs (pdf)

Technical Information

Form Factor: In Counter Scanner
Barcode Dimension: 1D
Symbologies Supported:
- UPC-A
- UPC-E
- UPC Coupon Code
- UPC Add-ons
- RSS-14 Expanded
- RSS-14 Stacked
- EAN-8
- EAN-13
- EAN/JAN
- Code 128
- Code 93
- Interleaved 2 of 5
- Italian Pharmacode
- Codabar (NW7)
- JAN-13
- UCC/EAN 128
- RSS-14
- Code 39 Full ASCII
- UPC Bookland
- JAN-8
- GTIN Compliant
- Sunrise 2005
Scan Rate: 6400 lps
Interface Options:
- RS-232 Serial
- IBM 46XX
- IBM USB
Interface Connectivity: Corded
Scan Pattern: Omnidirectional
Input Voltage Range: 100 to 250 V AC

General Information

Manufacturer:
- PSC Inc.
- Datalogic S.p.A
Product Line: Magellan
Product Name: Magellan 9500 Barcode Scanner

Physical Characteristics

Dimensions: 7.0" (177.8mm) x 11.5" (292.1mm) x 20.0" (508mm) x 6.5" (165.1mm)
Weight: 28.9 lb (13.11 kg) - Scanner/Scale

Agency Approvals

Agency Approvals:
- UL 60950
- EN 60950
- CSA-C22.2 no.60950
- VCCI
- EN 55022
- AS 3548 (Australia)
- ICES-0003 (Canada)
- CISPR 22 and others
- NZS 3548 (New Zealand)
- FCC part 15 subpart j, Class B (USA)
- Class IIa Laser Product
- IEC 60825 Class 1 (CAUTION: Laser Light - do not stare into beam)

Other

Package Contents:
- Magellan 9500 Barcode Scanner
- US Power Supply
- Cable (8022704)

Environmental Conditions

Temperature:
- 10Â°C (50Â°F) to 40Â°C (104Â°F) Operating
- -40Â°C (-40Â°F) to 70Â°C (158Â°F) Storage
Humidity: 5 to 95% Non-condensing

Warranty

Manufacturer Warranty: 1 Year(s)
