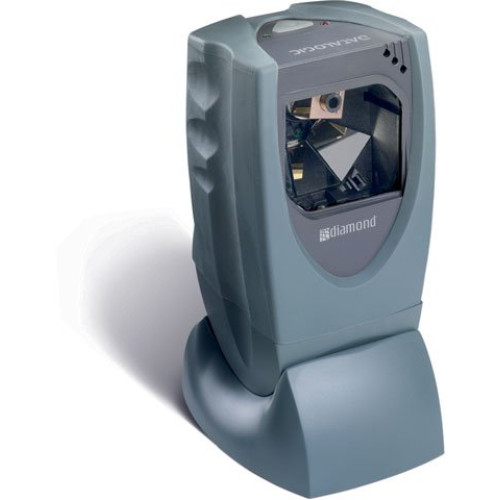

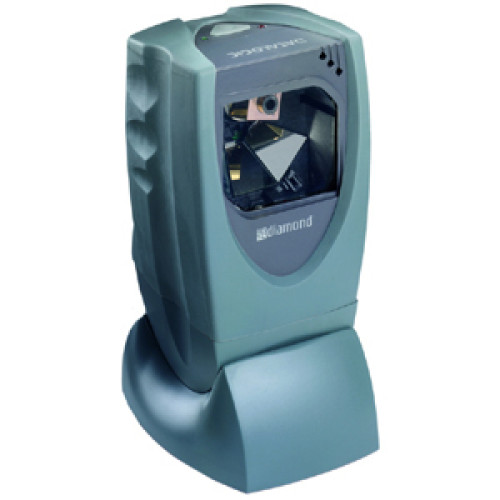

Datalogic Diamond Barcode Scanner Datalogic Diamond Barcode Scanner Datalogic Diamond Barcode Scanner
Datalogic Barcode Scanner and Mobile Handheld Computer

Datalogic Diamond Barcode Scanner
Part #: 902301030 | SKU: 7615

When it comes to efficiency for point of sale operations, the Diamond is the ideal solution as it combines a high first pass decoding rate with outstanding reliability and simplicity of use. Small, compact and flexible combined with high performance. These are the distinctive features that characterize the Diamond, Datalogic's step ahead in omni-directional scanning. In addition, the built-in protective sleeve protects the unit from shocks and prevents possible damage caused by drops from the counter. The architecture of the Diamond provides many benefits at a point-of-sale. The visible laser diode allows the product to generate a scan pattern of 16 lines for 1200 scans per second. A single line scan option is also available. This feature, combined with excellent ergonomics, allows the Diamond to be used as a hand-held scanner as well. The reduced footprint and intelligent stand allows a variety of configurations at the counter when the product needs to fit in a small space. A single multi-interface model (USB, Wedge and RS232) provides flexibility and compatibility with the former DLL2020 by simply replacing the plug-in cables. The Diamond is equipped with the Datalogic code reconstruction system that allows reading of non-oriented labels placed in various positions on objects or poorly printed or damaged codes. The reader can be also configured in sleep mode to minimize consumption when it is not active. It automatically wakes up when a code is detected.

Datalogic Diamond Barcode Scanner

Part Details: Diamond, DLL2020 Presentation scanner. Order Universal Adapter Cable, interface cables & power supply/AC adapter (for RS-232 operation) separately. See accessories.
Need a different version of the Datalogic Diamond Barcode Scanner? View all 9 configurations

Additional Information

Included Cables USB
Manufacturer No
Model Name Diamond
Product Condition No
Specialty Encoding None
Diamond Specs Diamond Specs (pdf)

Technical Information

  • Form Factor: Presentation Scanner
  • Barcode Dimension: 1D
  • Symbologies Supported:
    • Code 128
    • EAN-128
    • Code 39
    • Code 32
    • Codabar
    • EAN Add-ons
    • UPC Add-ons
    • Interleaved 2 of 5
  • Scanner Type: Laser
  • Scan Rate: 1200 scans/sec
  • Interface Options: RS-232
  • Interface Connectivity: Corded
  • Input Voltage: 5 V DC

General Information

  • Manufacturer: Datalogic S.p.A
  • Product Line: Diamond
  • Product Name: Diamond DLL2020 Barcode Scanner

Physical Characteristics

  • Dimensions: 10cm x 7cm x x 6.5cm
  • Weight: 280 g - with sleeve

Environmental Conditions

  • Temperature:
    • 0°C (32°F) to 40°C (104°F) Operating
    • -20°C (-4°F) to 70°C (158°F) Storage
  • Humidity: 0 to 95% Non-condensing

Agency Approvals

  • Agency Approvals: RoHS Compliance

Warranty

  • Manufacturer Warranty: 2 Year(s)
Extended Details
