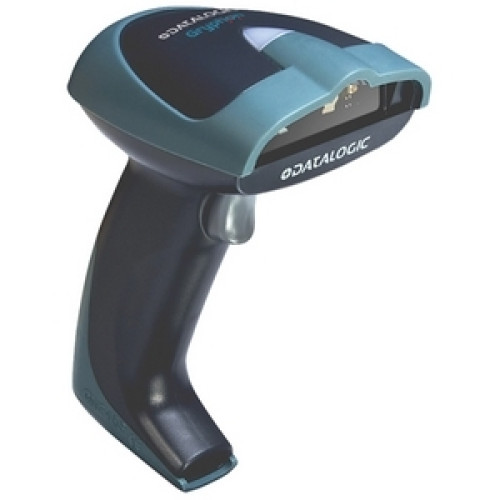

Datalogic Gryphon Barcode Scanner
Part #: 901711001 | SKU: 24609

Designed for optimal reading performance the Datalogic Gryphon has thorough feedback capabilities with an ergonomic design to provide for instinctive use and readability.

Datalogic Gryphon Barcode Scanner

Part Details: Gryphon D432, 2D High Density Scanner only with image capture. Cable not included. Color: gray

Need a different version of the Datalogic Gryphon Barcode Scanner? View all 26 configurations

Additional Information

Included Cables	USB
Manufacturer	No
Model Name	Gryphon
Product Condition	No
Scan Pattern	No
Scanner Capability	2D
Scanner Type	No
Specialty Encoding	None

Gryphon Specs (pdf)

Technical Information

Barcode Dimension:
- 1D
- 2D
Scan Pattern: Omni-directional
Scan Rate: 270 scan/s
Connectivity Technology: Cable
Light Source: Laser
Image Sensor: Linear
Barcode Symbology Supported:
- Interleaved 2 of 5
- Code 39
- Code 32
- Code 128
- EAN-128
- Code 93
- UPC/EAN/JAN
- RSS
- PDF 417
- DataMatrix (ECC 2000)
- QR Code
- Composite Code
- MacroPDF
- Micro PDF
- MaxiCode
- Postnet
- PLANET
- Japan Postal
- Australian Post
- Kix
- Royal Mail Code (RM4SCC)
- Industrial 2 of 5
- Codabar
- Interleaved 2 of 5
- Code 39
- Code 32
- Code 128
- EAN-128
- Code 93
- UPC/EAN/JAN
- RSS
- PDF 417
- DataMatrix (ECC 2000)
- QR Code
- Composite Code
- MacroPDF
- Micro PDF
- MaxiCode
- Postnet
- PLANET
- Japan Postal
- Australian Post
- Kix
- Royal Mail Code (RM4SCC)
- Industrial 2 of 5
- Codabar
Maximum Scan Resolution: 4 mil
Depth of Field:
- 1.97" - 2.95"@3 mil - Code 39
- 1.57" - 3.74"@5 mil - Code 39
- 1.97" - 3.15"@3 mil - PDF417
- 1.57" - 5.12"@10 mil - PDF417
- 1.97" - 2.95"@5 mil - Data Matrix
- 1.77" - 4.13"@10 mil - Data Matrix

General Information

Product Type: Handheld Barcode Scanner
Brand Name: Datalogic
Manufacturer: Datalogic S.p.A
Product Model: D432E
Product Name: Gryphon Desk D432 E Barcode Reader
Product Line: Gryphon Desk

Physical Characteristics

Height: 7"
Width: 3.2"
Depth: 3.9"
Weight (Approximate): 6.98 oz

Interfaces/Ports

Host Interface: Multi-interface

Other

Green Compliant: Yes
Green Compliance Certificate/Authority: RoHS
Certifications & Standards:
- RoHS Compliance
- Laser Classification
- Class 2 IEC 825-1
- Class 2 CDRH)
Additional Information:
- Supported Interfaces:
- SerialUSBWand Emulation

Warranty

Limited Warranty: 5 Year

Power Description

Input Voltage: 5 V DC

Extended Details
