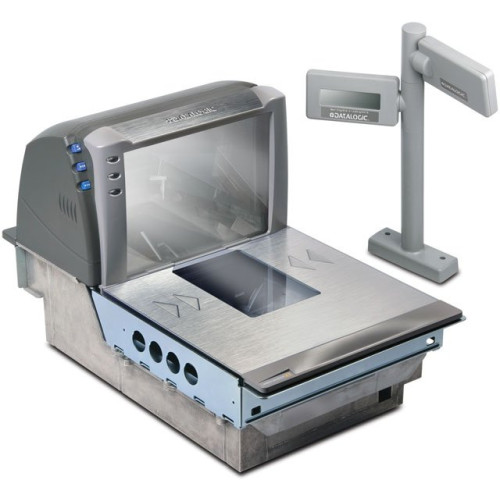

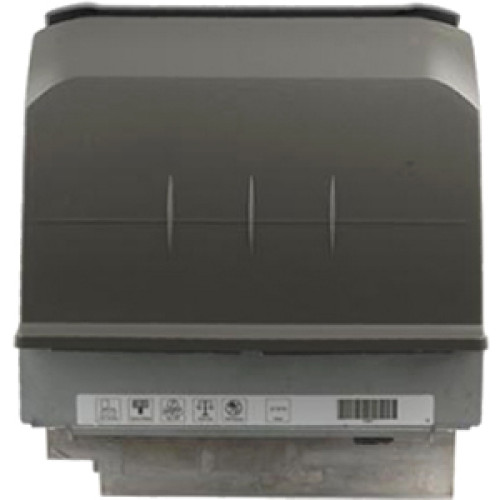

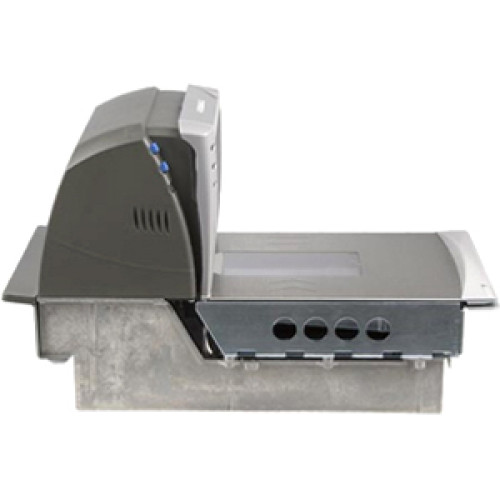

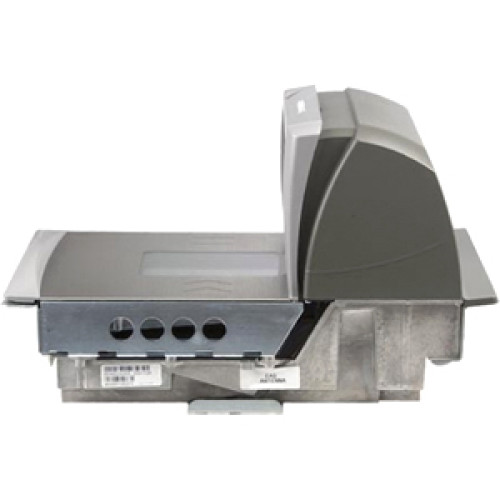

Datalogic Magellan 8500Xt Barcode Scanner
Part #: 855003201-0023010R | SKU: 240194

The Datalogic Magellan 8500Xt builds on the success of the Magellan 8500. The Magellan 8500Xt features 64 scan lines that use Datalogic's six-sided SurroundScan technology at 6400 scanns per second for fast, accurate reading. The Magellan 8500Xt comes in both DLC and Sapphire tops, short/long platter length and either scanner only or scanner/scale configurations.

Datalogic Magellan 8500Xt Barcode Scanner

Part Details: Datalogic Magellan 8504XT High Performance In-Counter Scanner and Scanner/Scale - Cable Connectivity - 6" Scan Distance - 1D - Omni-directional - USB

Need a different version of the Datalogic Magellan 8500Xt Barcode Scanner? View all 55 configurations

Additional Information

Embedded Scale	No
Form Factor	In Counter
Included Features	Embedded Scale
Manufacturer	No
Model Name	Magellan 8500Xt
Product Condition	No

Magellan 8500Xt Specs (pdf)

Technical Information

Barcode Dimension: 1D
Scan Pattern: Omni-directional
Connectivity Technology: Cable
Scanning Distance: 6"
Barcode Symbology Supported:
- 1D / Linearcodes:
- Autodiscriminates all standard 1D codes including GS1 DataBar linearcodes
- Stacked Codes:
- GS1 DataBar Expanded Stacked
- GS1 DataBar Stacked
- GS1 DataBar Stacked Omnidirectional
- 1D / Linearcodes:
- Autodiscriminates all standard 1D codes including GS1 DataBar linearcodes
- Stacked Codes:
- GS1 DataBar Expanded Stacked
- GS1 DataBar Stacked
- GS1 DataBar Stacked Omnidirectional

General Information

Product Type: In-counter Barcode Scanner
Brand Name: Datalogic
Manufacturer: Datalogic S.p.A
Product Model: 8504XT
Product Name: Magellan 8504XT High Performance In-Counter Scanner and Scanner/Scale
Product Line: Magellan

Physical Characteristics

Height: 7"
Width: 11.5"
Depth: 5"
Weight (Approximate): 26 lb

Interfaces/Ports

Host Interface: USB

Other

Green Compliant: Yes
Green Compliance Certificate/Authority:
- RoHS
- China RoHS

Warranty

Limited Warranty: 1 Year

Extended Details
