Datalogic Barcode Scanner and Mobile Handheld Computer

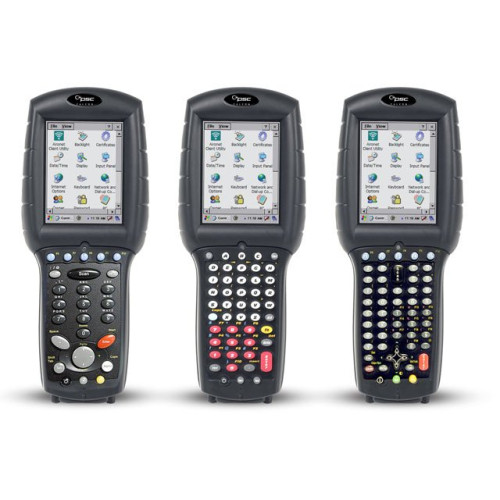

Datalogic Falcon 4420 Mobile Computer
Part #: 4423-15228-10000R | SKU: 26051

The Falcon 4410 and 4420 package the power of the latest mobile computing technology in a rugged and ergonomic mobile computer designed to master your inventory management applications. Whether in the harsh environment of a distribution center or in a fast-paced retail-in-store environment, the Falcon 4410-4420 has the feature set, accessories, and tools to meet your needs.

Datalogic Falcon 4420 Mobile Computer

Part Details: Falcon 4420 Wireless Portable Data Terminal (Overmold, 802.11g, 52-Key Keypad, 2D Standard Range, T/S and CE 5.0)

Need a different version of the Datalogic Falcon 4420 Mobile Computer? View all 76 configurations

Additional Information

Data Collection Type	Wireless
Display Resolution	No
Drop Rating	No
IP Rating	No
Manufacturer	No
Model Name	Falcon 4420
Network Connectivity	Wi-Fi 3: 802.11g
Operating System	No
Product Condition	No
RAM Memory	No
Style	No

Falcon 4420 Specs (pdf)

Technical Information

Connectivity Technology: Wireless
Image Sensor: Imager
Drop Specification: 60" To Concrete
Barcode Symbology Supported:
- Aztec
- Codabar
- Code 32
- Code 39
- Code 39 Full ASCII
- Code 93
- Code 128
- Code 128 Extensions
- DataMatrix
- EAN/JAN-8
- EAN/JAN-13
- EAN-128
- EAN-UCC Composite
- Interleaved 2 of 5
- Matrix 2 of 5
- MaxiCode
- MICR E-13B
- Micro PDF-417
- MSI/PLESSEY
- OCR-A
- OCR-B
- PDF 417
- Postnet
- QR Code
- RSS-14
- RSS-Expanded
- RSS-Limited
- Standard 2 of 5
- U.S. Currency Serial Number
- UPC-A
- UPC-E
- UPC/EAN 2 Digit Extensions
- UPC/EAN 5 Digit Extensions

General Information

Product Type: Handheld Terminal
Brand Name: Datalogic
Manufacturer: Datalogic S.p.A
Product Model: 4423
Product Name: Falcon 4423 Mobile Computer
Product Line: Falcon

Physical Characteristics

Height: 1.6"
Width: 3.5"
Length: 9"

Other

Green Compliant: Yes
Green Compliance Certificate/Authority: RoHS
Package Contents:
- Falcon 4423 Mobile Computer
- Quick Reference Guide
- CD (Manuals and Software)
- Battery Pack
- Tethered St
- Falcon 4423 Mobile Computer
- Quick Reference Guide
- CD (Manuals and Software)
- Battery Pack
- Tethered St
Certifications & Standards:
- Electrical:
- EN60950
- UL60950
- CSA60950
- Battery:
- IATA/UN
- Emissions:
- FCC Part 15C
- EN55022
- VCCI
- ICES-003
- CNS 13438
- AS/NZS 3548
- Radio:
- FCC Part 15:247, EN 300 328
Additional Information: OS Language: English

Display & Graphics

Display Screen Type: LCD
Screen Mode: QVGA
Screen Size: 3.5"
Display Color: Color
Screen Resolution: 320 x 240

Battery Information

Battery Capacity: 2000 mAh
Battery Included: Yes
Battery Chemistry: Lithium Ion (Li-Ion)

Processor & Chipset

Processor Manufacturer: Intel
Processor Speed: 400 MHz
Processor Type: XScale

Network & Communication

Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11g

Keyboard/Keypad

Keyboard Type: Alphanumeric
Number of Keys: 52

Memory

Flash Memory: 64 MB
Standard Memory: 64 MB

Touchscreen Information

Touchscreen: Yes

Software

Operating System: Windows CE .NET 5.0

Warranty

Limited Warranty: 1 Year

I/O Expansions

Expansion Slot Type: PC Card Type II

Extended Details
