Datalogic Barcode Scanner and Mobile Handheld Computer

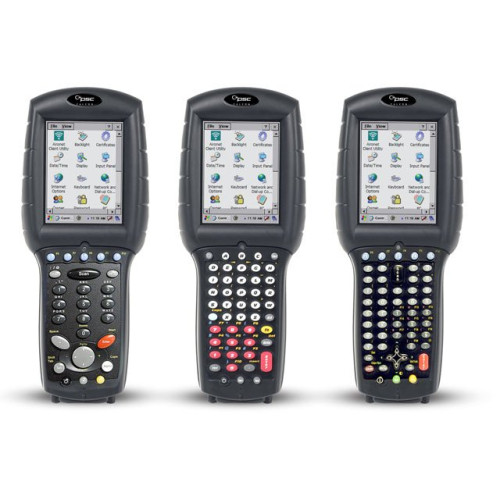

Datalogic Falcon 4420 Mobile Computer
Part #: 4420-11221 | SKU: 15222

The Falcon 4410 and 4420 package the power of the latest mobile computing technology in a rugged and ergonomic mobile computer designed to master your inventory management applications. Whether in the harsh environment of a distribution center or in a fast-paced retail-in-store environment, the Falcon 4410-4420 has the feature set, accessories, and tools to meet your needs.

Datalogic Falcon 4420 Mobile Computer

Part Details: Falcon 4420 Wireless Color Portable Data Terminal (Cisco, 64MB RAM, 64MB Flash, 52-Key Keypad and Standard Laser)

Need a different version of the Datalogic Falcon 4420 Mobile Computer? View all 76 configurations

Additional Information

Data Collection Type	Wireless
Display Resolution	No
Drop Rating	No
IP Rating	No
Manufacturer	No
Model Name	Falcon 4420
Operating System	No
Product Condition	No
RAM Memory	No
Scanner Type	Laser
Style	No

Falcon 4420 Specs (pdf)

Technical Information

Operating System: Windows CE .NET
Processor: Intel XScale 400MHz
Data Collection Type: Wireless
Wireless Security:
- Cisco Leap
- Cisco Peap
- EAP-TLS+ Microsoft PEAP
- EAP-FAST
Scanner Type: Laser Standard Range
Symbologies Supported:
- Codabar
- Code 39
- Code 93
- Code 128
- EAN-13
- EAN-8
- Interleaved 2 of 5
- MSI/PLESSEY
- Pharmacode 39
- Standard 2 of 5
- Trioptic
- UPC-A
- UPC-E
- UPC/EAN Extensions
- Code 32
- Code 16K
- Code 39 Full ASCII
- EAN-UCC Composite
- RSS-Limited
- RSS-14
- Matrix 2 of 5

General Information

Manufacturer: PSC Inc.
Product Line: Falcon
Product Name: Falcon 4420 Mobile Computer

Physical Characteristics

Display: 3.5" Color QVGA - Active Matrix TFT LCD
Display Resolution: 320 x 240
User Accessible Expansion Slot: PC Card Type I/II
Keyboard: 52 Key Alphanumeric Integrated
Battery Capacity: 2000 mAh
Battery Type: Lithium Ion - Included
Dimensions: 7.2" (183mm) x 3.4" (86mm) x 8.9" (226mm)
Weight: 19.4 oz

Agency Approvals

Agency Approvals:
- EN60950
- UL60950
- CSA60950
- IATA/UN
- FCC Part 15C
- EN55022
- VCCI
- ICES-003
- CNS 13438
- AS/NZS 3548
- CDRH Class II
- IEC 60825-1 Class 2

Environmental Conditions

Environmental Sealing: IP54
Temperature:
- -10Â°C (14Â°F) to 50Â°C (122Â°F) Operating
- -40Â°C (-40Â°F) to 70Â°C (158Â°F) Storage
Humidity: 5 to 95% Non-condensing
Electrostatic Discharge (ESD):
- 15kV Air Discharge
- 8kV Contact Discharge
Drop Spec: 5' To Concrete

Other

Package Contents:
- Falcon 4420 Mobile Computer
- Battery
- Falcon Management Utility
- Falcon Desktop Utility Software

Wireless Data Communications

Network Connectivity: WLAN 802.11b
Maximum RF Data Rate Supported: 11 Mbps
Output Power: 100mW
Antenna Connectors: Internal
Frequency Band/Bandwidth: 2.4GHz to 2.5GHz

Memory

RAM Memory: 64MB
Flash Memory: 64MB

Warranty

Manufacturer Warranty: 1 Year(s) Limited
