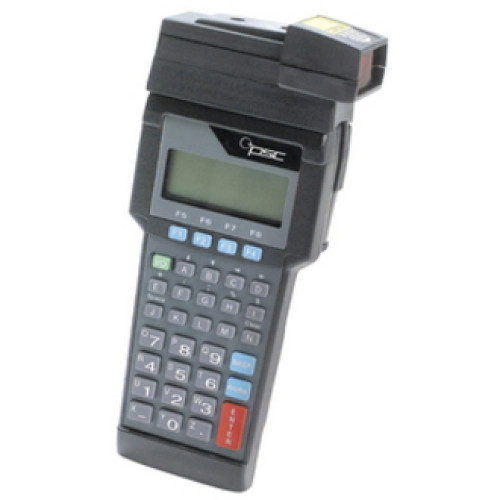

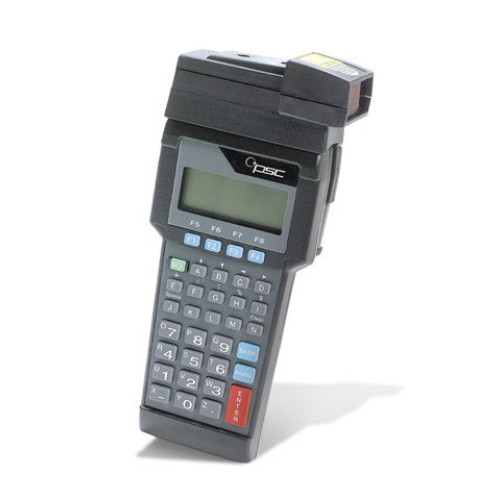

Datalogic Topgun Mobile Computer
Part #: 42-006-TG | SKU: 2713

TopGun consists of a PSC PT 2000 Portable Data Collection Terminal integrated with a TopGun Laser Module. Weighing 16 ounces (including three AA batteries) TopGun is lightweight and easy to use. It operates like any other handheld laser -- just aim it and pull the trigger. TopGun comes fully programmed ready to scan. Using PSC Program Generator (PPG) a Microsoft Windows-Based application program generator you can create custom programs for TopGun in minutes! TopGun is a cost-effective laser scanning solution. It provides the convenience of one-handed portable scanning combined with the speed and accuracy of laser input. Add the PT Dock for data transfer and battery recharging and you have the answer to all your portable needs.

Datalogic Topgun Mobile Computer

Part Details: TopGun Portable Batch Terminal (512K RAM and Integrated Laser)

Need a different version of the Datalogic Topgun Mobile Computer? View all 5 configurations

Additional Information

Data Collection Type	Batch
Display Resolution	No
Drop Rating	No
Manufacturer	No
Model Name	Topgun
Operating System	No
Product Condition	No
RAM Memory	No
Scanner Type	Laser

Topgun Specs (pdf)

Technical Information

Operating System: Proprietary 16-bit Proprietary
Processor: 16-bit CMOS
Data Collection Type: Batch
Scanner Type: Laser Standard Range
Symbologies Supported:
- UPC-A
- UPC-E
- EAN-8
- EAN-13
- JAN-13
- JAN-8
- Code 128
- Code 39
- Code 93
- Code 39 Full ASCII
- Codabar
- Interleaved 2 of 5

General Information

Manufacturer:
- PSC Inc.
- Datalogic S.p.A
Product Line: Falcon
Product Name:
- Falcon TopGun Handheld Terminal
- Falcon TopGun Portable Data Terminal

Physical Characteristics

Display: - 4 Lines x 16 Characters - Supertwist LCD
Keyboard: 34 Key Alphanumeric Integrated
Battery Type:
- Alkaline - Not Included
- Nickel Cadmium - Not Included
Dimensions: 4" (102mm) x 9" (229mm) x 1.8" (46mm)
Weight: 16 oz - With batteries

Other

Additional Information:
- 16-bit proprietary operating system
- 16-bit CMOS Microprocessor
- Four programmable function keys
Package Contents:
- Falcon TopGun Handheld Terminal
- Alkaline Batteries
- PAL Software
- 9-Pin Serial Cable
- Falcon TopGun Portable Data Terminal

Environmental Conditions

Temperature:
- -10Â°C (14Â°F) to 50Â°C (122Â°F) Operating
- -20Â°C (-4Â°F) to 70Â°C (158Â°F) Storage
Humidity: 5 to 95% Non-condensing
Drop Spec: 4' To Concrete Multiple

Agency Approvals

Agency Approvals:
- Complies to CE
- FCC Part 15 -Class A
- CDRH Class 2
- IEC Laser Class 2

Memory

RAM Memory: 512KB
Flash Memory: 128KB

Warranty

Manufacturer Warranty: 1 Year(s) Limited
