Datalogic Falcon 340 Mobile Computer Datalogic Falcon 340 Mobile Computer
Datalogic Barcode Scanner and Mobile Handheld Computer

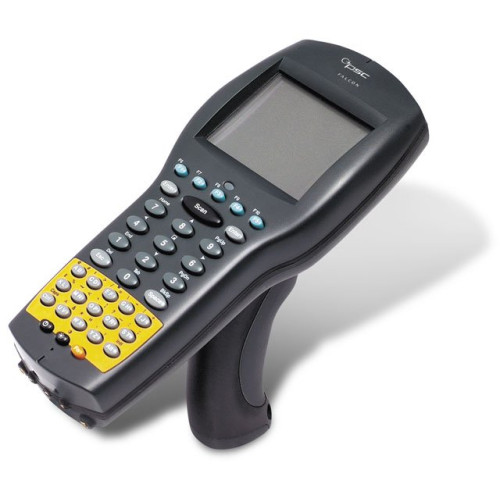

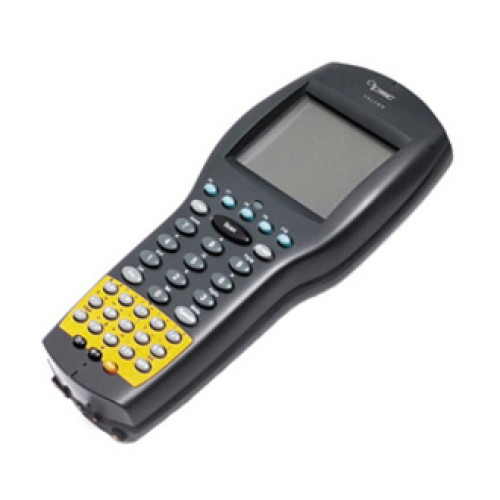

Datalogic Falcon 340 Mobile Computer
Part #: 340-0000-005 | SKU: 2678

The Falcon 340 is a member of the growing family of feature rich Falcon industrial data collection terminals from PSC. It is designed for easy integration in the supply chain of companies involved in logistics manufacturing retailing warehousing and distribution and in-store retail.--These sleek new portable terminals were ergonomically designed with the end-user in mind. They are the lightest weight unit in their class only 16.3 oz.-465 g. Engineered to reduce fatigue this weight is ideally balanced over the hand using a form-fit rubber-grip handle. Combine this with an integrated scan trigger a large 16-line back-lit display and a complete 38 key alphanumeric keypad and the user enjoys hours of high performance data collection. At the heart of the Falcon 340 portable data terminal is a powerful 32 bit 486 class processor running at 33MHz with 8MB of RAM and 2MB of Flash ROM. This flexible architecture also supports an internal PCMCIA Type II PC card for additional memory or wireless LAN connectivity. Because the Falcon 340 uses a standard operating system DOS 6.22 you can run applications previously developed for other Falcon terminals and other DOS terminals. You can also use popular PC-based development tools like PSC's Universal Program Generator (UPG) or RF SDK to create custom applications for your data collection needs. The Falcon 340 with the 486 processor and 8MB of RAM is one of the most powerful batch terminals on the market today. Fast lookup and validation of your data is critical to productivity.

Datalogic Falcon 340 Mobile Computer

Part Details: Falcon 340 Batch Portable Data Terminal (8MB RAM, 2MB Flash and Standard Laser)
Need a different version of the Datalogic Falcon 340 Mobile Computer? View all 8 configurations

Additional Information

Data Collection Type Batch
Manufacturer No
Model Name Falcon 340
Operating System No
Product Condition No
RAM Memory No
Scanner Type Laser
Style No
Falcon 340 Specs Falcon 340 Specs (pdf)

Technical Information

  • Scanner Range: Standard Range
  • Connectivity Technology: Batch
  • Light Source: Laser
  • Drop Specification: 48" To Concrete
  • Barcode Symbology Supported:
    • UPC-A
    • UPC-E
    • EAN-8
    • EAN-13
    • JAN-8
    • JAN-13
    • EAN Add-ons
    • Code 128
    • Interleaved 2 of 5
    • Code 39
    • Standard 2 of 5
    • Code 39 Full ASCII
    • Matrix 2 of 5
    • Code 93
    • MSI/PLESSEY
    • Code 11
    • Codabar
    • ISBN Conversion
    • Label Codes 4/5
    • Ames

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Datalogic
  • Manufacturer: Datalogic S.p.A
  • Product Model: 340
  • Product Name: Falcon 340 Portable Data Terminal
  • Product Line: Falcon

Physical Characteristics

  • Height: 1.6"
  • Width: 3.4"
  • Length: 7.8"
  • Weight (Approximate): 1.02 lb

Other

  • Package Contents:
    • Falcon 340 Portable Data Terminal
    • PAL Software
    • Falcon Developer's ToolKit<
    • Falcon 340 Portable Data Terminal
    • PAL Software
    • Falcon Developer's ToolKit<
  • Certifications & Standards:
    • Electrical:
    • EN60950
    • UL60950
    • CSA60950
    • Emissions:
    • FCC Part 15 - Class A
    • Laser Classification:
    • CDRH Class II
    • IEC 60825 Class 2

Display & Graphics

  • Display Screen Type: LCD
  • Number of Lines: 16
  • Number of Characters: 26
  • Display Color: Monochrome
  • Screen Resolution: 128 x 160

Memory

  • Flash Memory: 2 MB
  • Standard Memory: 8 MB

Keyboard/Keypad

  • Keyboard Type: Alphanumeric
  • Number of Keys: 38

Processor & Chipset

  • Processor Speed: 33 MHz

Warranty

  • Limited Warranty: 1 Year

Software

  • Operating System: DOS

I/O Expansions

  • Expansion Slot Type: PC Card Type II
Extended Details

Recommended Accessories for Model: Datalogic Falcon 340 Mobile Computer

  • Datalogic 330 & 335 Accessory
    Part #: F3X0-SERIAL-STARTER | SKU: 21579

    Falcon 330/340 Series Serial Starter Kit. Includes everything you need to run your Falcon 330/340: charging/communications cradle, serial cable, US power supply and battery.

  • Datalogic 320 & 325 Battery
    Part #: 95A201007 | SKU: 53017

    Datalogic Hi Capacity Battery - For Scanner - Battery Rechargeable - 3.6 V DC - 1650 mAh - Nickel Metal Hydride (NiMH) - 1

  • Datalogic 340 & 345 Spare Parts
    Part #: 95A151038 | SKU: 80055

    Dock (4-Slot/1 COM) for the F33x/34x)

  • Datalogic 340 & 345 Spare Parts
    Part #: 95ACC1139 | SKU: 52168

    Power Supply (110V) for the Falcon 3XX Single Slot Dock

  • Datalogic 320 & 325 Software
    Part #: 95A101027 | SKU: 68245

    Accessories, TN Client (F3X5, 4 in 1) for PSC
