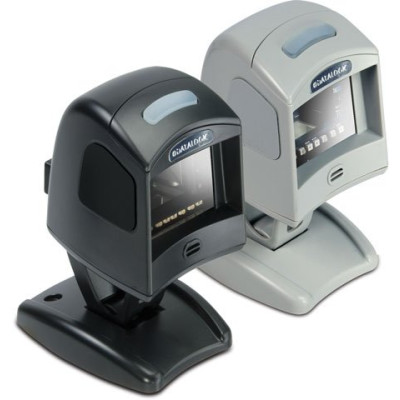

Datalogic Magellan 1000i Barcode Scanner
Datalogic Barcode Scanner and Mobile Handheld Computer

Datalogic Magellan 1000i Barcode Scanner

Datalogic Magellan 1000i Barcode Scanner

The Magellan 1000i is designed for small-counter retail environments incorporates several new design wins for the user. Our design objectives were simple: improve checkout productivity while protecting the customer's investment by adding capabilities that would extend the typical life of the scanner. We developed a new barcode scanner that is faster at capturing of hard-to-read labels, has outstanding ergonomics especially when handheld use is required, and has an excellent price to value ratio. The Magellan 1000i will also be very effective at protecting the user's investment by potentially extending the useful life of the scanner. Datalogic's new imaging technology has no moving parts providing excellent reliability and durability. This new technology also has a significant software component that will make adding new features and enhancements much easier. Features such as RFID coupling and new code symbologies can be enabled via software changes. And, like the entire Magellan family, the Magellan 1000i has multiple interface support built into each scanner that allows a new interface with a simple program parameter change and a cable switch.
Discontinued - Need Assistance
See all options
  • Optional targeted scanning mode for PLU Lists
  • Hands-free scanning for small, easily handled items, handheld scanning for bulkier items
  • New imaging technology eliminates moving parts associated with laser scanners for improved reliability
  • Precise imaging scan volume eliminates misreads caused by stray laser scan lines
  • Textured grip area and small size allow hands of all sizes to comfortably hold the scanner when needed
  • Aggressive imaging performance and intuitive operation reduces checker training and speeds checkout for better customer service
  • Checkpoint Systems EAS compatible
  • Optional tilting stand allows scan volume to be optimized for each user and has screw holes for fixed mounting
  • Small footprint and size allow for easy integration into point-of-sale and OEM applications
Datalogic Magellan 1000i Specs Datalogic Magellan 1000i Specs (pdf)

Omni-Directional Imaging Scanner

Features

  • Aggressive imaging performance and intuitive operation reduces checker training and speeds checkout for better customer service
  • New imaging technology eliminates moving parts associated with laser scanners for improved reliability
  • Hands-free scanning for small, easily handled items, handheld scanning for bulkier items
  • Precise imaging scan volume eliminates misreads caused by stray laser scan lines
  • Small footprint and size allow for easy integration into point-of-sale and OEM applications
  • Textured grip area and small size allow hands of all sizes to comfortably hold the scanner when needed
  • Checkpoint Systems EAS compatible
  • Optional targeted scanning mode for PLU Lists
  • Optional tilting stand allows scan volume to be optimized for each user and has screw holes for fixed mounting
  • Standard product is available in either Black or Gray. Other colors and custom logo options are available for a minimum quantity purchase.

Accessories

  • Tilting Riser Stand
  • Fixed Mounting Plate

New imaging technology provides aggressive performance in a space saving design
The is designed for "small-counter" retail environments incorporates several new design wins for the user. Our design objectives were simple: improve checkout productivity while protecting the customer’s investment by adding capabilities that would extend the typical life of the scanner.

We developed a new barcode scanner that is faster at capturing of hard-to-read labels, has outstanding ergonomics especially when handheld use is required, and has an excellent price to value ratio.

The will also be very effective at protecting the user’s investment by potentially extending the useful life of the scanner. PSC’s new imaging technology has no moving parts providing excellent reliability and durability. This new technology also has a significant software component that will make adding new features and enhancements much easier. Features such as RFID coupling and new code symbologies can be enabled via software changes. And, like the entire Magellan family, the has PSC’s multi-interface support built into each scanner that allows a new interface with a simple program parameter change and a cable switch.

The imaging technology allows users to scan barcodes in any orientation with either a sweep or a presentation style of scanning; a first for retail imaging scanners.



Specifications

Mechanical

Dimensions
Scanner
Stand
Scanner with Stand
Height
3.3" / 8.3 cm
2.3" / 5.8 cm
5.5" / 14.0 cm
Width
2.8" / 7.1 cm
2.9" / 7.4 cm
2.9" / 7.4 cm
Length
3.7" / 9.5 cm
3.8" / 9.7 cm
3.8" / 9.7 cm
Weight
7.0 oz / 198 g
6.6 oz / 187 g
13.6 oz / 385 g



Environmental

Temperature rating

  • Operating: 32° to 104° F / 0° to 40° C
  • Storage/transport: -40° to 158° F / -40° to 70° C

Humidity

  • 5 to 95% NC (non-condensing)

Shock

  • Multiple 4' / 1.2 m drops

Water & Dust resistance

  • IP52



Electrical

Operating Voltages

  • 5.0V model ± 5%
  • 7.0-12.0V model ± 5%

Operating Current (idle)

  • < 300mA

Operating Current (Label Read)

  • < 400mA



Communications

  • RS-232
  • USB
  • IBM USB
  • Keyboard Wedge
  • Wand Emulation
  • IBM 46xx / RS-485



Optical

Scan pattern

  • 100 line

Scan Rate

  • 1,000 digital scan lines/second

Single Line Activation

  • Optional Button

Scan Volume

  • 70.0 in³ / 178.0 cm³

Depth of Field- Range Comparisons

LABEL DENSITY
RANGE
5 mil
0.50- 1.75" / 0.64- 4.45 cm
7.5 mil
0.25-2.25" / 0.64-5.72 cm
10 mil
0-5" / 0-12.7 cm
13 mil UPC
0-6" / 0-15.2 cm
20 mil
0-6.75" / 0-17.15 cm

Minimum distance determined by symbol length and scan angle. Printing resolution, contrast, and ambient light dependent.

Minimum Resolution

  • 5 mil

Print Contrast

  • 25%

Roll

  • 0 - 360°

Pitch

  • ±65°

Yaw

  • ±75°

Ambient Light

  • Indoor: < 6,000 Lux / 557 foot candles
  • Outdoor: < 86,100 Lux / 7,999 foot candles



Decoding Capability

The autodiscriminates between the following supported symbologies:

Retail Codes:

  • UPC Versions A&E
  • UPC Supplementals (Bookland & Coupon Code)
  • UPC Add-ons (sub 2 or P2, sub 5 or P5 & C128)
  • Dual Barcodes for Japan (2 label read)
  • Reduced Space Symbology (RSS) RSS-14, RSS expanded, and RSS Stacked Omni-directional)
  • EAN 8 & 13 with full expansion 8 to 13
  • JAN 8 & 13 with full expansion 8 to 13
  • EAN/JAN two label
  • UCC/EAN 128
  • Italian Pharmacode
  • Supports GTIN

Industrial Codes:

  • Code 39 (with full ASCII)
  • Code 128 (Up to 80 characters, including Code 39 conversions)
  • Code 93
  • Interleaved 2 of 5
  • Standard 2 of 5
  • Codabar
  • MSI/Plessey

Safety and Regulatory

Electrical

  • Gost R
  • TÜV
  • UL
  • cUL

Emissions - Complies to:

  • FCC
  • EN 55022
  • AS/NZS 3548
  • VCCI

Other

EAS compatibility

  • Integrated EAS hardware works with Checkpoint Systems.
Extended Details
Refine Your Options
Shop By
Shopping Options
Scanner Capability
  1. 2D (5)
Included Cables
  1. USB (31)
  1. Datalogic Magellan 1000i Barcode Scanner

    Datalogic Magellan 1000i Barcode Scanner
    Part #: MG101010-000R | SKU: 62780

    Magellan 1000i, Omnidirectional Imaging Scanner (Scan Only, No Button, RS-232 and Cable) - Color: Gray.
  2. Datalogic Magellan 1000i Barcode Scanner

    Datalogic Magellan 1000i Barcode Scanner
    Part #: MG101010-102-106R | SKU: 62781

    Scanner Kit with RS232 Interface Cable, Tilting Stand, and Power Supply, Color: Gray. RoHS Compliant.
  3. Datalogic Magellan 1000i Barcode Scanner

    Datalogic Magellan 1000i Barcode Scanner
    Part #: MG101020-102-201R | SKU: 62782

    Omni-directional Scanner kit. IncludesPS2cable. RoHS Compliant.
  4. Datalogic Magellan 1000i Barcode Scanner

    Datalogic Magellan 1000i Barcode Scanner
    Part #: MG101041-000-411R | SKU: 62783

    Magellan 1000i, Omnidirectional Imaging Scanner (No Button and USB 12 ft. POT Cable #8-0481-16) - Color: Gray.
  5. Datalogic Magellan 1000i Barcode Scanner

    Datalogic Magellan 1000i Barcode Scanner
    Part #: MG101041-002-411R | SKU: 62784

    Magellan 1000i, Scanner Kit with Standard USB Cable, Tilting Stand, Color: Gray.
  6. Datalogic Magellan 1000i Barcode Scanner

    Datalogic Magellan 1000i Barcode Scanner
    Part #: MG102010-000R | SKU: 62785

    Magellan 1000i, Scanner Only, RS-232 Default Interface (all interfaces supported), Target Scanning Button, Color: Black.
  7. Datalogic Magellan 1000i Barcode Scanner

    Datalogic Magellan 1000i Barcode Scanner
    Part #: MG102010-100-106R | SKU: 62786

    Magellan 1000i, Omnidirectional Imaging Scanner (5V with Trigger, RS-232 DB9 12 ft. Cable and U/S Power supply) - Color: Black.
  8. Datalogic Magellan 1000i Barcode Scanner

    Datalogic Magellan 1000i Barcode Scanner
    Part #: MG102010-101-106R | SKU: 62787

    Omni-directional Scanner kit. IncludesRS-232cable. RoHS Compliant.
  9. Datalogic Magellan 1000i Barcode Scanner

    Datalogic Magellan 1000i Barcode Scanner
    Part #: MG103010-000R | SKU: 62789

    Magellan 1000i, Scanner Only, RS-232 Default Interface (all interfaces supported), Target Scanning Button, Color: Gray.
  10. Datalogic Magellan 1000i Barcode Scanner

    Datalogic Magellan 1000i Barcode Scanner
    Part #: MG103020-102-201R | SKU: 62790

    Scanner Kit with Keyboard Wedge Interface, PS2 Cable, Tilting Stand, Target Scanning Button, Color: Gray. RoHS Compliant.
