CradlePoint Charging Cradles and Telecommunications Products

CradlePoint Data Networking
Part #: MBR1400LE-VZ | SKU: 157791

Products and parts from CradlePoint.

CradlePoint Data Networking

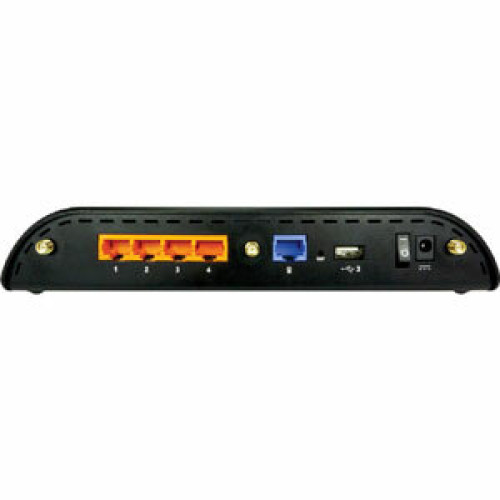

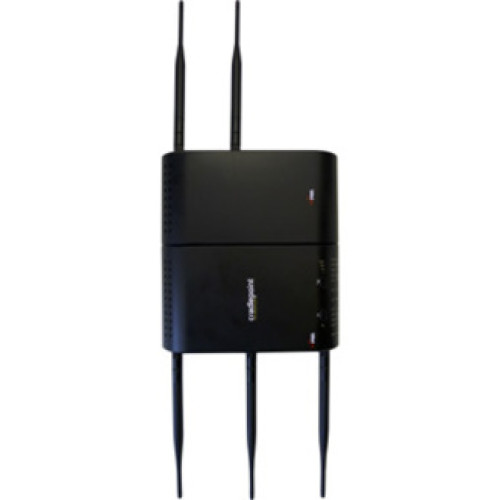

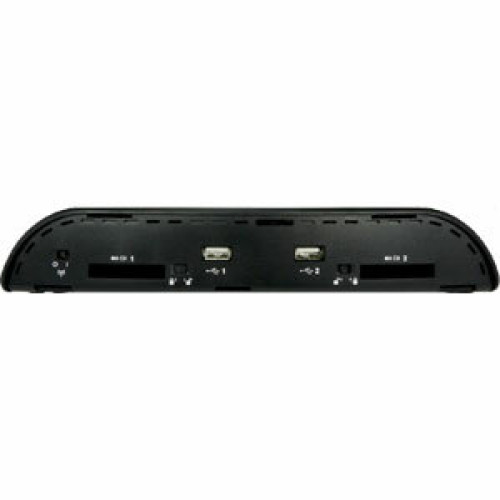

Part Details: CradlePoint ARC MBR1400LE IEEE 802.11n Wireless Router - 4G - 2.48 GHz ISM Band - 5.82 GHz UNII Band - 5 x Antenna - 750 ft Outdoor Range - 6.75 MB/s Wireless Speed - 4 x Network Port - 1 x Broadband Port - USB - Gigabit Ethernet - Desktop

Need a different version of the CradlePoint Accessory? View all 790 configurations

Additional Information

Manufacturer	No
Model Name	Parts
Product Condition	No

General Information

Product Type: Wireless Router
Product Series: MBR1400
Brand Name: CradlePoint
Manufacturer: CradlePoint, Inc
Product Model: MBR1400LE
Product Name: ARC MBR1400LE Wireless Router
Product Line: ARC

Physical Characteristics

Height: 1.6"
Width: 9.1"
Depth: 5.1"
Form Factor: Desktop

Interfaces/Ports

Ethernet Port: Yes
Fast Ethernet Port: Yes
Gigabit Ethernet Port: Yes
USB: Yes
Number of Network (RJ-45) Ports: 4
Number of Broadband (RJ-45) Ports: 1
PoE (RJ-45) Port: No
VGA: No
Network (RJ-11): No
Powerline: No
Management Port: No
Serial: No

Other

Package Contents:
- ARC MBR1400LE Wireless Router
- AC Power Adapter
- 3 x 2.4 GHz High Performance 802.11n Antennas
- Mounting Hardware
- CAT5 Ethernet Cable
- Setup Guide
- ARC MBR1400LE Wireless Router
- AC Power Adapter
- 3 x 2.4 GHz High Performance 802.11n Antennas
- Mounting Hardware
- CAT5 Ethernet Cable
- Setup Guide
Certifications & Standards:
- IEEE 802.11a
- IEEE 802.11b
- IEEE 802.11g
- IEEE 802.11n
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3ab
- FCC Part 15, 22, 24 & 27
- TIA/EIA/IS-2000
- IS-95-B
- 3GPP Rel 8
System Requirements:
- Operating Systems:
- Windows 2000
- Windows XP
- Windows 7
- Mac OS X
- Linux
- Web Browsers:
- Internet Explorer v6.0 or Higher
- Firefox v2.0 or Higher
- Safari v1.0 or Higher

Wireless Specifications

Broadband Transmission Technology: Cellular
Wireless LAN Standard: IEEE 802.11n
ISM Band: Yes
UNII Band: Yes
Outdoor Antenna Range: 750 ft
ISM Maximum Frequency: 2.48 GHz
UNII Maximum Frequency: 5.82 GHz
Cellular Data Connectivity Technology:
- EVDO
- LTE
Cellular Generation: 4G
Cellular Network Supported:
- CDMA2000 1X
- CDMA 1900
- CDMA 800
Total Number of Antennas: 5
Wireless Transmission Speed: 54 Mbps
ISM Minimum Frequency: 2.41 GHz
UNII Minimum Frequency: 5.18 GHz
Antenna Gain: 2 dBi
Antenna Type: High Gain Antenna
Antenna Connector: SMA Connector
Features:
- Quality of Service (QoS)
- MIMO Technology
Wireless Security:
- WPS
- WPA-Enterprise
- WPA2-Enterprise
- WPA-Personal
- WPA2-Personal
- WEP
- AES
- TKIP

Management & Protocols

Management:
- DHCP
- SNMP v1/v2c/v3
- CLI
- Server-Based Centralized Management
- Web Based Management
Security Features:
- VPN Pass-through
- PPTP
- L2TP
- PPPoE
- IPSec
- SSH
- RADIUS
- DES
- 3DES
- MD5
- SHA128/256/384/512
- GRE Tunneling
- NAT
- SPI
- Content Filtering
- Port Filtering
- MAC Address Filtering
- Website Filtering

Power Description

Input Voltage: 12 V DC
Power Source: AC Adapter

Warranty

Limited Warranty: 1 Year

Network & Communication

Ethernet Technology: Gigabit Ethernet

I/O Expansions

Expansion Slots: 2 x ExpressCard

Extended Details

Barcode Discount

CradlePoint Data Networking Part #: MBR1400LE-VZ | SKU: 157791
