Part #: IBR600LE-PWD | SKU: 206888

Products and parts from CradlePoint.

CradlePoint Products

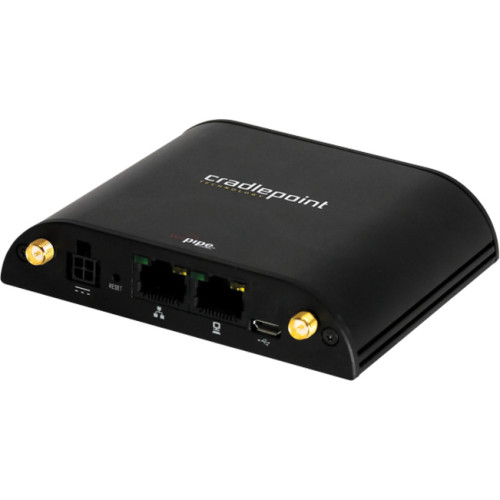

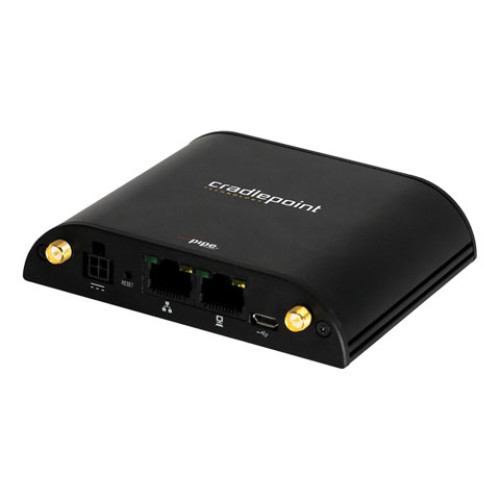

Part Details: CradlePoint COR IBR600LE IEEE 802.11n Wireless Router - 4G - 2.40 GHz ISM Band - 2 x Antenna - 6.75 MB/s Wireless Speed - 2 x Broadband Port - USB - Fast Ethernet - Desktop

Need a different version of the CradlePoint Accessory? View all 790 configurations

Additional Information

Manufacturer	No
Model Name	Parts
Product Condition	No

General Information

Product Type: Wireless Router
Product Series: IBR600
Brand Name: CradlePoint
Manufacturer: CradlePoint, Inc
Product Model: IBR600LE
Product Name: COR IBR600LE-PWD Active GPS with LTE for Verizon
Product Line: COR

Physical Characteristics

Height: 0.9"
Width: 4"
Depth: 3.3"
Form Factor: Desktop
Weight (Approximate): 7.20 oz

Interfaces/Ports

USB: Yes
Number of Broadband (RJ-45) Ports: 2
PoE (RJ-45) Port: No
VGA: No
Network (RJ-11): No
Powerline: No
Management Port: No

Wireless Specifications

Broadband Transmission Technology:
- Cellular
- Ethernet
Wireless LAN Standard: IEEE 802.11n
ISM Band: Yes
UNII Band: No
ISM Maximum Frequency: 2.40 GHz
Cellular Data Connectivity Technology:
- LTE
- EVDO
Cellular Generation: 4G
Cellular Network Supported:
- WCDMA 800
- WCDMA 1900
- LTE 700
Total Number of Antennas: 2
Wireless Transmission Speed: 54 Mbps
Antenna Gain: 2 dBi
Antenna Connector: RP-SMA Connector
Features:
- MIMO Technology
- Quality of Service (QoS)
Wireless Security:
- WEP
- WPA
- WPA2
- WPA2 Enterprise
- AES

Other

Package Contents:
- COR IBR600LE-PWD Active GPS with LTE for Verizon
- 2 x External 4G/3G Mobile Broadband Modem Antennas (SMA)
- 2 x External WiFi Antennas (Reverse SMA)
- Power Supply with Locking Connector
- GPIO/Power Cable
- Setup Guide
- COR IBR600LE-PWD Active GPS with LTE for Verizon
- 2 x External 4G/3G Mobile Broadband Modem Antennas (SMA)
- 2 x External WiFi Antennas (Reverse SMA)
- Power Supply with Locking Connector
- GPIO/Power Cable
- Setup Guide
Certifications & Standards:
- FCC
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.11b
- IEEE 802.11g
- IEEE 802.11n
System Requirements:
- Web Browsers:
- Internet Explorer 7
- Firefox 2
- Safari 1
- Google Chrome

Management & Protocols

Management:
- VLAN
- WiPipe Central
- SNMP v1/2c/3
- Command Line Interface (CLI)
Security Features:
- SPI
- NAT
- NAT-T
- URL Fltering
- IP & Traffic Filtering
- DMZ
- IPSec
- MD5
- SHA-1
- AES
- 3DES
- DES

Power Description

Input Voltage: 12 V DC
Power Source: AC Adapter

Network & Communication

Ethernet Technology: Fast Ethernet
Network Technology: 10/100Base-TX

Warranty

Limited Warranty: 1 Year

I/O Expansions

Expansion Slots: SIM Card

Extended Details

Barcode Discount

CradlePoint Products Part #: IBR600LE-PWD | SKU: 206888
