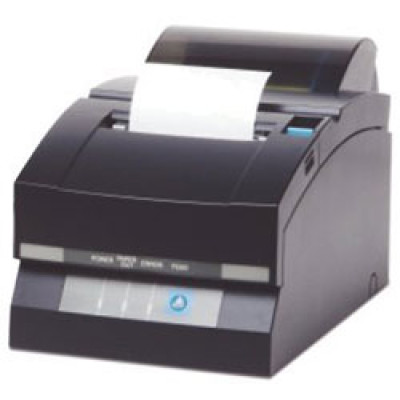

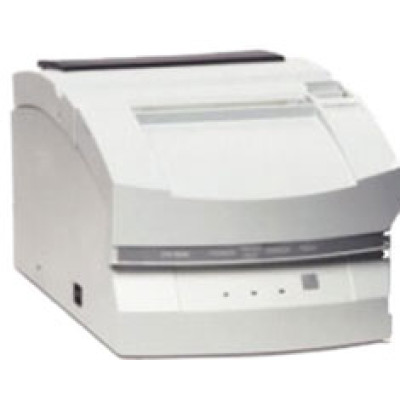

Citizen CD-S500 Receipt Printer

The Citizen CD-S500 is tabletop or wall mountable with an internal or external power supply. The CD-S500 includes built in non-volatile memory, which retains data if the power source is removed. The CD-S500 is designed to accommodate several printing applications including receipts, coupons, tickets, daily reports, kitchen slips and delivery slips. It features a logic seeking print head, is ESC/POS compatible and features a built-in buzzer. The CD-S500 also features two-color printing capability.

Discontinued - Need Assistance

See all options

Specs & Info
All Options

Built-in buzzer
Built-in NV memory
Drop-in paper handling
ESC/POS compatibility
High-speed printing
Logic-seeking control
Memory switches
Multiple interface options
Selectable paper width
Two color printing

Citizen CD-S500 Specs (pdf)

Drop-in Paper Loading, Dot Matrix Impact Printer

High-speed printing
Drop-in paper handling
Logic-seeking control
Selectable paper width
Two color printing
ESC/POS* compatibility
Built-in buzzer
Built-in NV memory
Multiple interface options
Memory switches

Specifications

Printing Method	Serial dot impact (Logic-seeking control)
Printing Direction	Bi-directional
Font	7x 9/9x9 matrix
Number of Columns	40/33 or 42/35 columns
Printing width	76/69.5/57.5mm
Printing Speed	5.0 lines/sec. (40 columns)
Character size (wxh)	1.25x3.12mm (7x9 dots), 1.57x3.12mm (9x9dots)
Character set	Alphanumeric, International, 9-Code page versions
Line Spacing	1/144inch
Line feed speed	40 lines/sec
Paper feed method	Friction
Paper	76/69.5/57.5mm +/- 0.5mm x Æ 83mm, plus one copy
Interface	Centronics Parallel, Serial, USB, 10/100 base T
Input buffer	4k/40 bytes
NV bit map data area	128k
Drawer kick-out	2 drawers
Ink ribbon	Red/black, Black, Purple Cassette
Power supply	DC24V +/- 7%
AC adaptor	Input: AC 100-230V, 1.3A Output: DC24V +/- 5%
Weight	2.8kg standard, 3.2kg with winder
Dimensions (wxdxh)	156 x 258.7 x 174.4mm (standard) 156 x 258.7 x 131.9mm (w/oAC adapter) 156 x 288.7 x 197.8mm (w/winder) 156 x 288.7 x 155.3mm (w/o AC adapter)
Operating environment	0-50°C, 10-90% RH
Storage environment	-20-70°C, 5-90%RH
Reliabilty	Printer:MCBF 7.5 million lines; Cutter 1 million cuts
Safety standards	UL, C-UL, FCC Class A, TUV-GS, CE Marking

Extended Details

Refine Your Options

Shop By

Manufacturer

Citizen (33)

Interface

Print Method

Impact (2)

Magstripe Option

No Magstripe (1)

Print Width

3.0 inches (1)

Column Capacity

40 (1)

Citizen CD-S500 Receipt Printer
Part #: CD-S500-AENU-BK | SKU: CIT47716

CD-S500, Impact Printer, 76 mm, 5 lps, 40 column, Ethernet interface with tear bar. Color: Black
Citizen CD-S500 Receipt Printer
Part #: CD-S500APAU-BK | SKU: CIT15419

CD-S500 Dot Matrix Impact Printer (76mm, 5.0 LPS, 40 Column, Parallel Interface with Tear Bar) - Color: Black
Citizen CD-S500 Receipt Printer
Part #: CD-S500APAU-WH | SKU: CIT15420

CD-S500 Dot Matrix Impact Printer (76mm, 5.0 LPS, 40 Column, Parallel Interface with Tear Bar) - Color: White
Citizen CD-S500 Receipt Printer
Part #: CD-S500ARSU-BK | SKU: CIT15421

CD-S500 Dot Matrix Impact Printer (76mm, 5.0 LPS, 40 Column, Serial Interface with Tear Bar) - Color: Black
Citizen CD-S500 Receipt Printer
Part #: CD-S500ARSU-WH | SKU: CIT15422

CD-S500 Dot Matrix Impact Printer (76mm, 5.0 LPS, 40 Column, Serial Interface with Tear Bar) - Color: White
Citizen CD-S500 Receipt Printer
Part #: CD-S503APAU-BK | SKU: CIT15431

CD-S500 Dot Matrix Impact Printer (76mm, 5.0 LPS, 40 Column, Parallel Interface, Cutter with Take-Up) - Color: Black
Citizen CD-S500 Receipt Printer
Part #: CD-S503APAU-WH | SKU: CIT15432

CD-S500 Dot Matrix Impact Printer (76mm, 5.0 LPS, 40 Column, Parallel Interface, Cutter with Take-Up) - Color: White
Citizen CD-S500 Receipt Printer
Part #: CD-S503ARSU-WH | SKU: CIT15434

CD-S500 Dot Matrix Impact Printer (76mm, 5.0 LPS, 40 Column, Serial Interface, Cutter with Take-Up) - Color: White
Citizen CD-S500 Receipt Printer
Part #: CD-S503AUBU-WH | SKU: CIT15436

Dot Matrix Impact Printer - CD-S500 - 5.0 lines per second - 40 Column - 76mm - Color: White - USB Interface - Cutter with Take-Up
Citizen CD-S500 Receipt Printer
Part #: CD-S501-AENU-BK | SKU: CIT31397

CD-S500 Dot Matrix Impact Printer (76 mm, 5.0 LPS, 40 Column, Ethernet Interface with Cutter) - Color: Black
