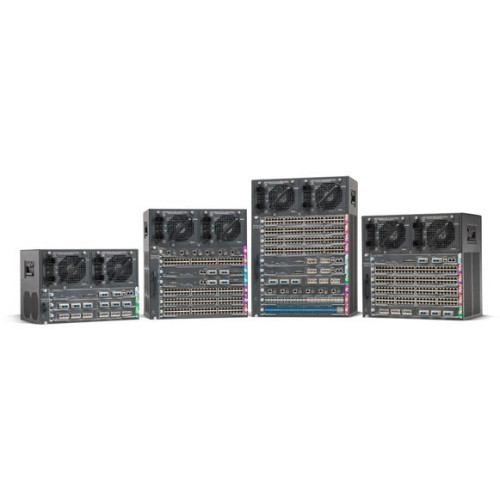

Cisco Catalyst 4500 Series Switch Data Networking
Part #: WS-X4516-10GE= | SKU: 40761

Each Cisco Catalyst 4500 Series chassis model has a different number of available card slots and can accommodate a variety of line card and supervisor options. Customers can choose 48-port 10/100, 10/100/1000 and Power over Ethernet line cards. These cards can be added to the chassis as needed to customize an access, distribution, or server aggregation platform.

Cisco Catalyst 4500 Series Switch Data Networking

Part Details: Catalyst 4500 Series Switch, (Supervisor, V-10GE 2X10GE X2 and 4X1GE SFP)

Need a different version of the Cisco Catalyst 4500 Series Switch Data Networking? View all 41 configurations

Additional Information

Manufacturer	No
Model Name	Catalyst 4500 Series Switch
Product Condition	No

Catalyst 4500 Series Switch Specs (pdf)

General Information

Product Type: Supervisor Engine
Brand Name: Cisco
Manufacturer: Cisco Systems, Inc
Product Name: Catalyst 4500 Supervisor Engine V-10GE

Technical Information

Application/Usage: Data Networking

Interfaces/Ports

Interfaces/Ports Details:
- 1 x RJ-45 Console Management
- 1 x RJ-45 10/100Base-TX Management

Other

Compatibility:
- Catalyst 4503
- Catalyst 4506
- Catalyst 4507R
- Catalyst 4510R
- Catalyst 4503
- Catalyst 4506
- Catalyst 4507R
- Catalyst 4510R
Certifications & Standards:
- IEEE 802.1s
- IEEE 802.1w
- IEEE 802.3ad
- IEEE 802.1Q
- IEEE 802.1x
- IEEE 802.1p
- GR-63-Core Network Equipment Building Systems (NEBS) Level 3
- GR-1089-Core Level 3
- ETS 300 019 Storage Class 1.1
- ETS 300 019 Transportation Class 2.3 (pending)
- ETS 300 019 Stationary Use Class 3.1
- ETS 300 386
- Management Standards:
- RFC 1213-MIB (MIB II)
- UDP-MIB
- TCP-MIB
- CISCO-FLASH-MIB
- CISCO-IMAGE-MIB
- RFC 2233 (IF-MIB)
- CISCO-CONFIG-MAN-MIB
- CISCO-MEMORY-POOL
- CISCO-CDP-MIB
- RMON-MIB lite (RFC 1757)
- RMON2-MIB lite (RFC 2021)
- HC-RMON-MIB
- SMON-MIB
- ENTITY-MIB (V1-RFC 2037) (V2- RFC 2737)
- CISCO-PROCESS-MIB
- CISCO-CONFIG-COPY-MIB
- CISCO-ENTITY-EXT-MIB
- CISCO-ENTITY-ASSET-MIB
- CISCO-ENTITY-FRU-CONTROL-MIB
- CISCO-ENTITY-SENSOR-MIB
- CISCO-ENVMON-MIB
- BRIDGE-MIB (RFC 1493)
- CISCO-PAGP-MIB
- CISCO-PRIVATE-VLAN-MIB
- CISCO-STP-EXTENSIONS-MIB
- CISCO-VLAN-MEMBERSHIP-MIB
- CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB
- IGMP-MIB
- PIM-MIB
- OSPF-MIB
- CISCO-ENTITY-VENDORTYPE-OID-MIB
- CISCO-SYSLOG-MIB
- BGP4-MIB
- CISCO-BULK-FILE-MIB
- CISCO-CLASS-BASED-QOS-MIB
- CISCO-FTP-CLIENT-MIB
- CISCO-HSRP-MIB
- CISCO-IGMP-FILTER-MIB
- CISCO-IPMROUTE-MIB
- CISCO-PORT-SECURITY-MIB
- CISCO-RMON-CONFIG-MIB
- CISCO-VTP-MIB
- ETHERLIKE-MIB
- EXPRESSION-MIB
- CISCO-PORT-STORM-CONTROL-MIB
- Regulatory compliance: CE marking
- Safety:
- UL 60950CAN/CSA-C22.2 No. 60950
- EN 60950
- IEC 60950
- TS 001
- AS/NZS 3260
- EMC:
- FCC Part 15 (CFR 47) Class A
- ICES-003 Class A
- EN55022 Class A
- CISPR22 Class A
- AS/NZS 3548 Class A
- VCCI Class A
- ETS 300 386
- EN 55022
- EN 55024
- EN 61000-6-1
- EN 50082-1
- EN 61000-3-2
- EN 61000-3-3
System Requirements:
- Minimum Software Requirement:
- Cisco IOS Software Release 12.2(25)EW or later
Additional Information:
- Active VLANs: 4000
- Multicast Entries: 128,000
- STP Instance: 3000
- Switched Virtual Interfaces (SVIS): 4000
- Internet Group Management Protocol (IGMP) Snooping
- NetFlow Data Export Versions 5 and 8 are supported
- QoS Sharing on all ports
- Switching Capacity: 136 Gbps
- Throughput: 102 mpps
- Support for 55,000 unicast + 16,000 multicast MAC addresses
- Support for 131,072 entries in routing table (shared between unicast and multicast)
- Multilayer Switching: Full Layer 2-4 services and routing
- Dynamic Buffer Limiting (DBL): Congestion-Avoidance Feature
- Broadcast Suppression
- Multicast Suppression
- CPU: 800 MHz
- 802.1-in-802.1 (QinQ) in hardware
- Layer 2 protocol tunneling
- Jumbo Frames (up to 9216 bytes)
- Baby Giants (up to 1600 bytes)
- NetFlow Features:
- Flow-table size: 85,000
- Aggregate policers: 8000 ingress; 8000 egress
- User-based rate-limiting profiles: 512
- User-based rate-limiting flows: 85,000
- Sophisticated QoS and Traffic Management:
- Support for four queues per port
- Strict priority queuing
- IP differentiated services code point (DSCP)
- Classification and marking based on IP type of service (ToS) or DSCP
- Classification and marking based on full Layer 3 and Layer 4 headers
- Input and output policing based on Layer 3 and Layer 4 headers
- Support for 8000 policers on ingress and 8000 policers on egress configured as aggregate or individual
- Shaping and sharing output queue management
- DBL: Congestion-avoidance feature
- No performance penalty for granular QoS functions
- Auto-QoS command-line interface (CLI) for VoIP deployments

Management & Protocols

Management:
- VLAN
- SNMP v1, v2, and v3 instrumentation, delivering comprehensive in-band management
- NetFlow statistics
- Optional Compact Flash memory card to store software images for backup and easy software upgrades
- CLI-based management console to provide detailed out-of-band management
- Remote Monitoring (RMON) software agent to support four RMON groups (history, statistics, alarms, and events) for enhanced traffic management, monitoring, and analysis
- Layer 2 traceroute
- Remote SPAN (RSPAN)
- Cisco Smartports macros
- SPAN ACL filtering
- Dynamic Host Configuration Protocol (DHCP) client autoconfiguration
- Enhanced SNMP MIB support
Security Features:
- Access Control Lists (ACL)
- TACACS+
- RADIUS
Protocols:
- TCP/IP
- SNMP
- STP
- LACP
- IGMP
- OSPF
- BGP v4
- HSRP
- FTP
- VTP
- CDP
- EIGRP
- IGRP
- IS-IS
- PAgP
- DTP
- PVST+
- ARP
- BootP
- TFTP
- TACACS+
- RADIUS

Controls/Indicators

Controls: Reset Switch
Status Indicators:
- Status
- Utilization
- Link
- Active

Media & Performance

Data Transfer Rate:
- 10 Mbps Ethernet
- 100 Mbps Fast Ethernet
- 1 Gbps Gigabit Ethernet
- 10 Gbps Gigabit Ethernet

Environmental Conditions

Altitude: -196.85 ft to 6561.68 ft Operating
Humidity: 10% to 90% Non-condensing Relative Humidity
Temperature:
- 32°F (0°C) to 104°F (40°C) Operating
- -40°F (-40°C) to 167°F (75°C) Storage

I/O Expansions

Expansion Slots:
- 1 x CompactFlash Card Slot
- 4 x SFP (mini-GBIC)
- 2 x X2

Memory

Memory:
- 512 KB NVRAM
- 512 MB SDRAM

Warranty

Limited Warranty: 90

Extended Details
