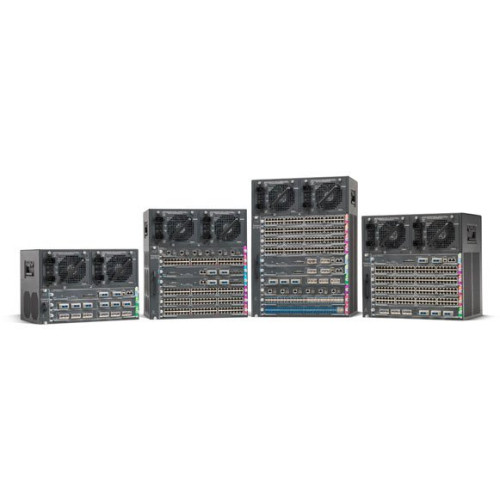

Cisco Catalyst 4500 Series Switch Data Networking
Part #: WS-X4418-GB= | SKU: 40757

Each Cisco Catalyst 4500 Series chassis model has a different number of available card slots and can accommodate a variety of line card and supervisor options. Customers can choose 48-port 10/100, 10/100/1000 and Power over Ethernet line cards. These cards can be added to the chassis as needed to customize an access, distribution, or server aggregation platform.

Cisco Catalyst 4500 Series Switch Data Networking

Part Details: Catalyst 4500 Series Switch, Catalyst 4500 GE Module (Server Switching 18-Ports GBIC)

Need a different version of the Cisco Catalyst 4500 Series Switch Data Networking? View all 41 configurations

Additional Information

Manufacturer	No
Model Name	Catalyst 4500 Series Switch
Product Condition	No

Catalyst 4500 Series Switch Specs (pdf)

General Information

Product Type: GBIC
Brand Name: Cisco
Manufacturer: Cisco Systems, Inc
Product Name: Catalyst GBIC Module

Technical Information

Application/Usage: Data Networking

Physical Characteristics

Dimensions: 1.8" Height x 14.4" Width x 10.5" Depth
Weight (Approximate): 4.80 lb

Interfaces/Ports

Interfaces/Ports Details: No

Other

Compatibility:
- Cisco Catalyst 4503 Switch
- Cisco Catalyst 4506 Switch
- Cisco Catalyst 4507R Switch
- Cisco Catalyst 4003 Switch
- Cisco Catalyst 4006 Switch
- Cisco Catalyst 4503 Switch
- Cisco Catalyst 4506 Switch
- Cisco Catalyst 4507R Switch
- Cisco Catalyst 4003 Switch
- Cisco Catalyst 4006 Switch
Certifications & Standards:
- Gigabit Ethernet: IEEE 802.3z, IEEE 802.3x, IEEE 802.3ab
- 1000BASE-X (GBIC): - 1000BASE-SX - 1000BASE-LX/LH - 1000BASE-ZX - CWDM Safety Certifications:
- UL 1950
- EN 60950
- CSA-C22.2 no 950
- IEC 950 Electromagnetic Emissions Certifications:
- FCC 15J Class A
- VCCI Class A
- CE Marking
- EN 55022 Class A
- EN 55024 Class A
- CISPR 22 Class A
- AS/NZ 3548
- NEBS Level 3 (GR-1089-CORE, GR-63-CORE)
- ETSI ETS-300386-2
Additional Information:
- The Gigabit Ethernet ports can be configured with any combination of SX, LX/LH, and ZX GBICs EtherChannel Technology:
- Gigabit EtherChannel technology: All 1000-Mbps ports - IEEE 802.3ad (Link Aggregation Control Protocol): All 1000-Mbps ports
- Number of ports per tuple: 8
- EtherChannel and 802.3ad technology across line cards: Yes Min/Max Interfaces per Chassis:
- Cisco Catalyst 4503: 18/36
- Cisco Catalyst 4506: 18/90
- Cisco Catalyst 4507R: 18/90

Environmental Conditions

Altitude: -196.84 ft to 13123.32 ft Operating
Humidity: 10% to 90% Non-condensing
Temperature:
- 32°F (0°C) to 104°F (40°C) Operating
- -40°F (-40°C) to 167°F (75°C) Non-operating

Controls/Indicators

Status Indicators:
- Status
- Link

I/O Expansions

Expansion Slots: 18 x GBIC

Media & Performance

Data Transfer Rate: 1 Gbps Gigabit Ethernet Full-duplex

Warranty

Limited Warranty: 90

Management & Protocols

Protocols: PAgP

Extended Details
