Cisco Accessories Accessory
Part #: WS-G5487= | SKU: 93980

Product Type: GBIC
Brand Name: Cisco
Manufacturer: Cisco Systems, Inc

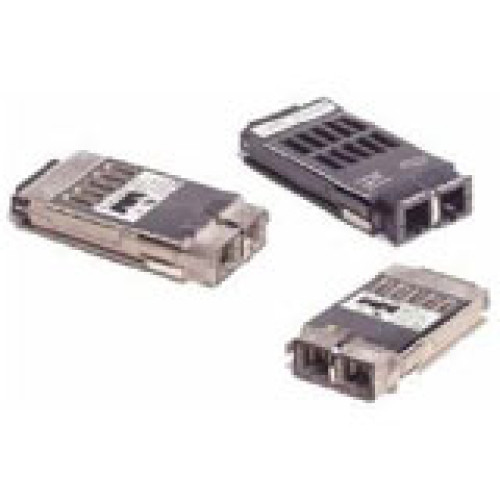

Product Name: 1000Base-ZX GBIC

Cisco Accessories Accessory

Part Details: Accessories, 1000Base-ZX Extended Reach GBI GBIC (Singlemode)

Need a different version of the Cisco Accessories Accessory? View all 1227 configurations

Compatibility:
- Catalyst 4000
- Catalyst 5000
- Catalyst 6000
- Catalyst 4000
- Catalyst 5000
- Catalyst 6000
Certifications & Standards:
- IEEE 802.3z Regulatory and Standards Compliance:
- Safety- Laser Class I 21CFR1040
System Requirements: A 5-dB or 10-dB inline optical attenuator should be inserted between the fiber-optic cable plant and the receiving port on the Cisco 1000BASE-ZX GBIC at each end of the link whenever the fiber-optic cable span is less than 15.5 miles (25 km)
Additional Information:
- The WS-G5487 1000Base-ZX GBIC provides an optical power budget of 21.5 dB. GBIC Channel Insertion Loss:
- Transmitter output power (minimum/maximum): 0/4.77 dBm
- Receiver maximum input power: -3 dBm
- Receiver sensitivity: -23 dBm
- 50 micron MMF: N/A
- 62.5 micron MMF: N/A
- 9 micron SMF: 21.5 dB
- Wavelength: 1550 Maximum Number of GBICs Per Platform:
- Catalyst 4000: - 12 to comply with EN55022 Class B and FCC Class A.
- Catalyst 5000: - 12 to comply with FCC Class A.
- Catalyst 6000: - 12 to comply with EN55022 Class B. - 24 to comply with FCC Class A.

Data Transfer Rate: 1 Gbps Gigabit Ethernet
Connectivity Media:
- 8.3/9/10 µm Single-mode Optical Fiber
- 8 µm Single-mode Optical Fiber
Distance Supported:
- 43.50 Mile 8.3/9/10 µm Optical Fiber
- 62.10 Mile 8 µm Optical Fiber

Temperature:
- 32°F (0°C) to 122°F (50°C) Operating
- -40°F (-40°C) to 185°F (85°C) Storage
