Cisco Catalyst 3750 Series Switch Data Networking
Cisco Telecommunications Products

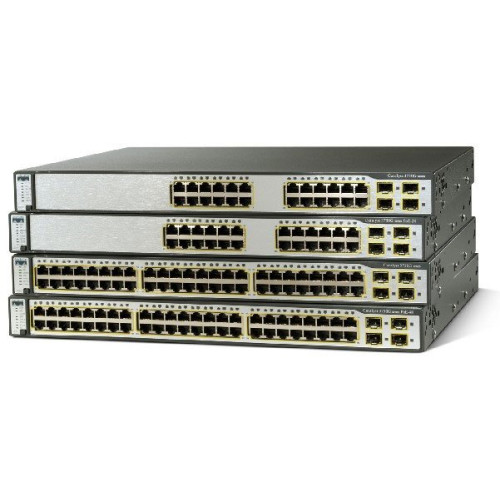

Cisco Catalyst 3750 Series Switch Data Networking
Part #: WS-C3750-24FS-S | SKU: 40683

The Cisco Catalyst 3750 Series Switch is an innovative product for midsize organizations and enterprise branch offices. Featuring Cisco StackWise technology, the switch improves LAN operating efficiency by combining ease of use and the highest resiliency available for stackable switches.

Cisco Catalyst 3750 Series Switch Data Networking

Part Details: Catalyst 3750 Series Switch, (24 100 Base FX and 2 SFP Standard Multilayer Imager)
Need a different version of the Cisco Catalyst 3750 Series Switch Data Networking? View all 61 configurations

Additional Information

Manufacturer No
Model Name Catalyst 3750 Series Switch
Product Condition No
Catalyst 3750 Series Switch Specs Catalyst 3750 Series Switch Specs (pdf)

General Information

  • Product Type: Ethernet Switch
  • Product Series: 3750
  • Brand Name: Cisco
  • Manufacturer: Cisco Systems, Inc
  • Product Model: 3750-24FS-24
  • Product Name: Catalyst 3750-24FS-24 Switch
  • Product Line: Catalyst

Physical Characteristics

  • Height: 1.7"
  • Width: 17.5"
  • Depth: 11.8"

Interfaces/Ports

  • Total Number of Network Ports: 24
  • Port/Expansion Slot Details:
    • 24 x Fast Ethernet Network
    • 2 x Fast Ethernet Expansion Slot
  • Number of MT-RJ Ports: 24

Other

  • Package Contents:
    • Catalyst 3750-24FS-24 Switch
    • Cisco StackWise 50CM Stacking Cable (CAB-STACK-50CM)
    • Catalyst 3750 Switch Hardware Installation Guide
    • About the Catalyst 3750 Documentation flyer
    • AC power cord
    • One RJ-45-to-DB-9 adapter cable
    • Mounting kit containing:
    • Four rubber feet for mounting the switch on a table
    • Two 19-inch rack-mounting brackets
    • Four Phillips machine screws for attaching the brackets to a rack
    • One cable guide and one black Phillips machine screw for attaching the cable guide to one of the mounting brackets
    • One RPS connector cover (for wall mounting)
    • Two Phillips pan-head screws (for attaching the RPS cover)
    • Four Phillips truss-head screws (for wall-mounting brackets)
    • Catalyst 3750-24FS-24 Switch
    • Cisco StackWise 50CM Stacking Cable (CAB-STACK-50CM)
    • Catalyst 3750 Switch Hardware Installation Guide
    • About the Catalyst 3750 Documentation flyer
    • AC power cord
    • One RJ-45-to-DB-9 adapter cable
    • Mounting kit containing:
    • Four rubber feet for mounting the switch on a table
    • Two 19-inch rack-mounting brackets
    • Four Phillips machine screws for attaching the brackets to a rack
    • One cable guide and one black Phillips machine screw for attaching the cable guide to one of the mounting brackets
    • One RPS connector cover (for wall mounting)
    • Two Phillips pan-head screws (for attaching the RPS cover)
    • Four Phillips truss-head screws (for wall-mounting brackets)
  • Additional Information:
    • Configurable up to 12,000 MAC addresses
    • Configurable up to 20,000 unicast routes
    • Configurable up to 1000 IGMP groups and multicast routes
    • MTBF: 269,011 hours (Cisco Catalyst 3750-24FS)
    • Jumbo Frames-Support for High-Demand Applications
    • High-Performance IP Routing
    • Advanced QoS
    • Granular Rate Limiting
    • IP Base Image installed

Media & Performance

  • Ethernet Technology: Fast Ethernet
  • Media Type Supported: Optical Fiber
  • Network Technology: 100Base-FX
  • Fiber Optic Cable Standard:
    • 62.5/125 µm
    • 50/125 µm
  • Fiber Mode Supported: Multi-mode

Management & Protocols

  • Manageable: Yes
  • Management:
    • Cisco StackWise Technology
    • Superior command-line interface (CLI)
    • Cisco Network Assistant Software
    • CiscoWorks Support
    • SNMP network management

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC
  • Redundant Power Supply: Yes
  • Power Source: Power Supply

Memory

  • Memory Technology: DRAM
  • Flash Memory: 32 MB
  • Standard Memory: 128 MB

I/O Expansions

  • Number of Total Expansion Slots: 2
  • Expansion Slot Type: SFP
  • Number of SFP Slots: 2

Network & Communication

  • Layer Supported: 3

Warranty

  • Limited Warranty: Lifetime
