Additional Information
| Manufacturer | No |
|---|---|
| Model Name | Catalyst 3560 Series Switch |
| Product Condition | No |

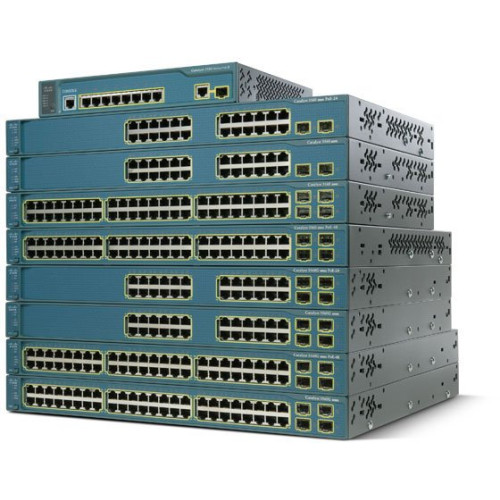

Catalyst 3560 Series Switch Specs
General Information
- Product Type: Ethernet Switch
- Product Series: 3560
- Brand Name: Cisco-IMSourcing
- Manufacturer: Cisco-IMSourcing
- Product Model: 3560G-48TS-E
- Product Name: Catalyst 3560G-48TS-E Ethernet Switch
- Product Line: Catalyst
Physical Characteristics
- Height: 1.7"
- Width: 17.5"
- Depth: 16.1"
- Weight (Approximate): 14 lb
Interfaces/Ports
- Number of Network (RJ-45) Ports: 48
- Total Number of Network Ports: 48
- Port/Expansion Slot Details:
- 48 x Gigabit Ethernet Network
- 4 x Gigabit Ethernet Expansion Slot
- Management Port: Yes
Other
- Package Contents:
- Catalyst 3560G-48TS-E Ethernet Switch
- Catalyst 3560 Switch Getting Started Guide
- Regulatory Compliance and Safety Information for the Catalyst 3560 Switch
- Product Registration Card
- AC Power Cord (AC-Powered Switches)
- 1 x RJ-45-to-DB-9 Adapter Cable
- Hardware Mounting Kit
- Catalyst 3560G-48TS-E Ethernet Switch
- Catalyst 3560 Switch Getting Started Guide
- Regulatory Compliance and Safety Information for the Catalyst 3560 Switch
- Product Registration Card
- AC Power Cord (AC-Powered Switches)
- 1 x RJ-45-to-DB-9 Adapter Cable
- Hardware Mounting Kit
- Certifications & Standards:
- IEEE 802.1s
- IEEE 802.1w
- IEEE 802.1x
- IEEE 802.3ad
- IEEE 802.3x
- IEEE 802.1D
- IEEE 802.1p
- IEEE 802.1Q
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3z
- Safety Certifications:
- UL to UL 60950, Third Edition
- C-UL to CAN/CSA C22.2 No. 60950-00, Third Edition
- TUV/GS to EN 60950:2000
- CB to IEC 60950 with all country deviations
- NOM to NOM-019-SCFI
- CE Marking
- Electromagnetic Emissions Certifications:
- FCC Part 15 Class A
- EN 55022: 1998 (CISPR22)
- EN 55024: 1998 (CISPR24)
- VCCI Class A
- AS/NZS 3548 Class A
- CE
- CNS 13438 Class A
- MIC
Management & Protocols
- Manageable: Yes
- Management:
- SNMP v1, 2c, 3
- CLI
- Resource Manager Essentials
- Web-based Management
- Cisco Network Assistant Software
- CiscoWorks
- VLAN
- RMON
- MIB
Warranty
- Additional Warranty Information:
- Product does not ship from original manufacturer
- Product may not be eligible for original manufacturer warranty, rebates or programs
- Direct replacement warranty provided by Ingram Micro (1 year for components, 3 year for systems)
- Product ships from IMSourcing facility within 2-3 days or from stock
- Product may ship in non-standard packaging
- All returns processed directly from IMSourcing
- Product condition subject to availability
- Replacement parts are from our Service inventory and meet our rigorous inspection and quality standards. Some will be new, some are manufacturer certified refurbished, some are considered 'as new' and have been tested, refurbished or remanufactured. All are fully warranted
- Where applicable, -IM indicates an Ingram Micro certified pre-owned product
Power Description
- Input Voltage:
- 110 V AC
- 220 V AC
- Redundant Power Supply: Yes
- Power Source: Power Supply
Media & Performance
- Ethernet Technology: Gigabit Ethernet
- Media Type Supported: Twisted Pair
- Network Technology: 10/100/1000Base-T
- Twisted Pair Cable Standard: Category 5
I/O Expansions
- Number of Total Expansion Slots: 4
- Expansion Slot Type: SFP
- Number of SFP Slots: 4
Memory
- Memory Technology: DRAM
- Flash Memory: 32 MB
- Standard Memory: 128 MB
Network & Communication
- Layer Supported: 4
Reliability
- MTBF: 173400 Hour
