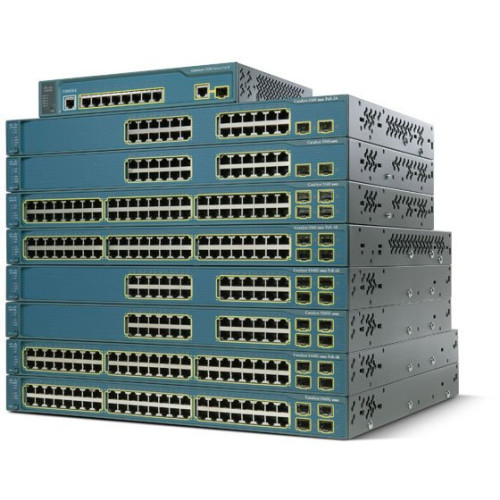

Cisco Catalyst 3560 Series Switch Data Networking
Part #: WS-C3560G-48PS-E | SKU: 40675

The Cisco Catalyst 3560 Series is a line of fixed-configuration, enterprise-class switches that include IEEE 802.3af and Cisco pre-standard Power over Ethernet (PoE) functionality in Fast Ethernet and Gigabit Ethernet configurations. These are ideal access layer switches for small enterprise LAN access or branch-office environments. Combining both 10/100/1000 and PoE configurations for maximum productivity and investment protection, they help you deploy new applications such as IP telephony, wireless access, video surveillance, building management systems, and remote video kiosks.

Cisco Catalyst 3560 Series Switch Data Networking

Part Details: Catalyst 3560 Series Switch, (48 Ethernet 10/100/1000 Ports and POE+4 SFP Enhanced Image)

Need a different version of the Cisco Catalyst 3560 Series Switch Data Networking? View all 52 configurations

Additional Information

Manufacturer	No
Model Name	Catalyst 3560 Series Switch
Product Condition	No

Catalyst 3560 Series Switch Specs (pdf)

General Information

Product Type: Ethernet Switch
Product Series: 3560
Brand Name: Cisco
Manufacturer: Cisco Systems, Inc
Product Model: 3560G-48PS-E
Product Name: Catalyst 3560 Gigabit Ethernet Switch
Product Line: Catalyst

Physical Characteristics

Height: 1.7"
Width: 17.5"
Depth: 16.1"
Weight (Approximate): 15.50 lb

Interfaces/Ports

Number of Network (RJ-45) Ports: 48
Total Number of Network Ports: 48
Port/Expansion Slot Details: 4 x Gigabit Ethernet Expansion Slot

Other

Certifications & Standards:
- IEEE:
- IEEE 802.1s
- IEEE 802.1w
- IEEE 802.1x
- IEEE 802.3ad
- IEEE 802.3af
- IEEE 802.3x
- IEEE 802.1D Spanning Tree Protocol
- IEEE 802.1p CoS Prioritization
- IEEE 802.1Q VLAN
- IEEE 802.3 10BASE-T specification
- IEEE 802.3u 100BASE-TX specification
- IEEE 802.3ab 1000BASE-T specification
- IEEE 802.3z 1000BASE-X specification
- Safety Certifications:
- UL to UL 60950, Third Edition
- C-UL to CAN/CSA C22.2 No. 60950-00, Third Edition
- TUV/GS to EN 60950:2000
- CB to IEC 60950 with all country deviations
- NOM to NOM-019-SCFI
- CE Marking
- Electromagnetic Emissions Certifications:
- FCC Part 15 Class A
- EN 55022: 1998 (CISPR22)
- EN 55024: 1998 (CISPR24)
- VCCI Class A
- AS/NZS 3548 Class A
- CE
- CNS 13438 Class A
- MIC
- MIB:
- BRIDGE-MIB
- CISCO-CDP-MIB
- CISCO-CLUSTER-MIB
- CISCO-CONFIG-MAN-MIB
- CISCO-ENTITY-FRU-CONTROL-MIB
- CISCO-ENVMON-MIB
- CISCO-FLASH-MIB
- CISCO-FTP-CLIENT-MIB
- CISCO-HSRP-MIB
- CISCO-HSRP-EXT-MIB
- CISCO-IGMP-FILTER-MIB
- CISCO-IMAGE-MIB
- CISCO-IP-STAT-MIB
- CISCO-L2L3-INTERFACE-CONFIG-MIB
- CISCO-MAC-NOTIFICATION-MIB
- CISCO-MEMORY-POOL-MIB
- CISCO-PAGP-MIB
- CISCO-PING-MIB
- CISCO-PROCESS-MIB
- CISCO-RTTMON-MIB
- CISCO-STP-EXTENSIONS-MIB
- CISCO-SYSLOG-MIB
- CISCO-TCP-MIB
- CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB
- CISCO-VLAN-MEMBERSHIP-MIB
- CISCO-VTP-MIB
- ENTITY-MIB
- ETHERLIKE-MIB
- IF-MIB
- IGMP-MIB
- IPMROUTE-MIB
- OLD-CISCO-CHASSIS-MIB
- OLD-CISCO-FLASH-MIB
- OLD-CISCO-INTERFACES-MIB
- OLD-CISCO-IP-MIB
- OLD-CISCO-SYS-MIB
- OLD-CISCO-TCP-MIB
- OLD-CISCO-TS-MIB
- OSPF-MIB (RFC 1253)
- PIM-MIB
- RFC1213-MIB
- RFC1253-MIB
- RMON-MIB
- RMON2-MIB
- SNMP-FRAMEWORK-MIB
- SNMP-MPD-MIB
- SNMP-NOTIFICATION-MIB
- SNMP-TARGET-MIB
- SNMPv2-MIB
- TCP-MIB
- UDP-MIB
Additional Information:
- Advanced IP routing
- Configurable up to 11,000 unicast routes
- Acoustic Noise: 52-58 dBa
- DC Input Voltages (RPS Input): 14A
- Power Rating: 0.56 kVA
- Configurable up to 1000 IGMP groups and multicast routes
- Telco: Common Language Equipment Identifier (CLEI) code
- Configurable maximum transmission unit (MTU) of up to 9000 bytes, with a maximum Ethernet frame size of 9018 bytes (Jumbo frames), for bridging on Gigabit Ethernet ports, and up to 1546 bytes for bridging of Multiprotocol Label Switching (MPLS) tagged frames on 10/100 ports.
- POE:
- Maximum power supplied per port: 15.4W
- QoS and Control:
- Advanced QoS
- Granular Rate Limiting: The Cisco Committed Information Rate (CIR) function guarantees bandwidth in increments as low as 8 kbps.

Management & Protocols

Manageable: Yes
Management:
- SNMPv1, SNMPv2c, and SNMPv3
- policy management
- Command-line interface (CLI)
- Resource Manager Essentials
- Web-based management
- Cisco Network Assistant Software
- Four thousand VLAN IDs are supported
- Management console port: RJ-45-to-DB-9 cable for PC connections
- Service Assurance Agent (SAA) support facilitates service-level management throughout the LAN.
- Up to 1024 VLANs per switch or stack and up to 128 spanning-tree instances per switch are supported
- Embedded Remote Monitoring (RMON) software agent supports four RMON groups (history, statistics, alarms, and events).
- VLAN trunks can be created from any port, using either standards-based 802.1Q tagging or the Cisco Inter-Switch Link (ISL) VLAN architecture.
- Remote SPAN (RSPAN) allows administrators to remotely monitor ports in a Layer 2 switch network from any other switch in the same network.

Media & Performance

Ethernet Technology: Gigabit Ethernet
Media Type Supported: Twisted Pair
Network Technology:
- 10Base-T
- 10/100/1000Base-T
Twisted Pair Cable Standard: Category 5

I/O Expansions

Number of Total Expansion Slots: 4
Expansion Slot Type: SFP
Number of SFP Slots: 4

Memory

Memory Technology: DRAM
Flash Memory: 32 MB
Standard Memory: 128 MB

Network & Communication

Layer Supported: 4

Reliability

MTBF: 147000 Hour
