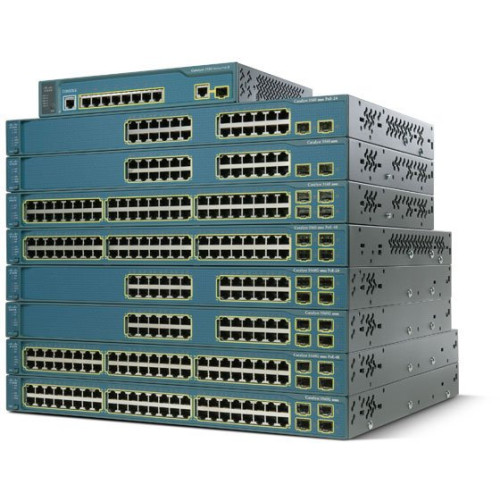

Cisco Catalyst 3560 Series Switch Data Networking
Part #: WS-C3560G-24PS-E | SKU: 40669

The Cisco Catalyst 3560 Series is a line of fixed-configuration, enterprise-class switches that include IEEE 802.3af and Cisco pre-standard Power over Ethernet (PoE) functionality in Fast Ethernet and Gigabit Ethernet configurations. These are ideal access layer switches for small enterprise LAN access or branch-office environments. Combining both 10/100/1000 and PoE configurations for maximum productivity and investment protection, they help you deploy new applications such as IP telephony, wireless access, video surveillance, building management systems, and remote video kiosks.

Cisco Catalyst 3560 Series Switch Data Networking

Part Details: Catalyst 3560 Series Switch, (24 10/100/1000T PoE + 4 SFP + IPS Image)

Need a different version of the Cisco Catalyst 3560 Series Switch Data Networking? View all 52 configurations

Additional Information

Manufacturer	No
Model Name	Catalyst 3560 Series Switch
Product Condition	No

Catalyst 3560 Series Switch Specs (pdf)

General Information

Product Type: Ethernet Switch
Product Series: 3560
Brand Name: Cisco
Manufacturer: Cisco Systems, Inc
Product Model: 3560G-24PS-E
Product Name: Catalyst 3560 Gigabit Ethernet Switch
Product Line: Catalyst

Physical Characteristics

Height: 1.7"
Width: 17.5"
Depth: 14.9"
Weight (Approximate): 13.50 lb

Interfaces/Ports

Number of Network (RJ-45) Ports: 24
Total Number of Network Ports: 24
Port/Expansion Slot Details: 4 x Gigabit Ethernet Expansion Slot

Other

Package Contents:
- Catalyst 3560 Switch
- Regatory Compliance and Safety Information for the Catalyst 3560 Switch
- Product registration card
- AC power cord (AC-powered switches)
- One RJ-45-to-DB-9 adapter cable
- <p><b>Mounting kit containing:
- <><li>Four rubber feet for mounting the switch on a table
- Two 19-inch rack-mounting brackets (also used for wall mounting)
- Six Phillips flat-head screws for attaching the brackets to the switch
- Four Phillips machine screws for attaching the brackets to a rack
- One cable guide and one black Phillips machine screw for attaching the cable guide to one of the mounting brackets
- One redundant power system (RPS) connector cover (for wall mounting)
- Two Phillips pan-head screws (for attaching the RPS cover)
- Four Phillips truss-head screws (for wall-mounting brackets)

Media & Performance

Ethernet Technology: Gigabit Ethernet
Media Type Supported: Twisted Pair
Network Technology:
- 10Base-T
- 10/100/1000Base-T

Power Description

Input Voltage:
- 110 V AC
- 220 V AC

I/O Expansions

Number of Total Expansion Slots: 4
Expansion Slot Type: SFP

Warranty

Limited Warranty: Lifetime

Management & Protocols

Manageable: Yes

Network & Communication

Layer Supported: 3

Extended Details
