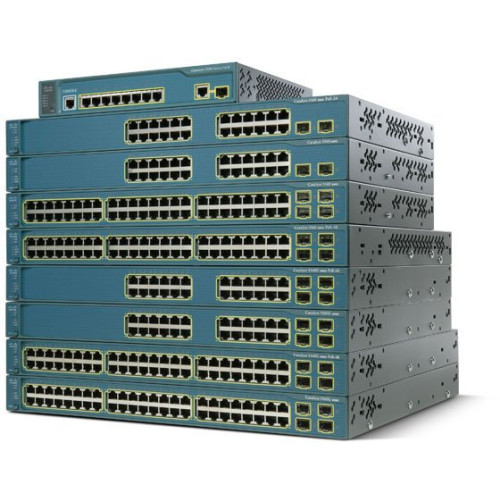

Cisco Catalyst 3560 Series Switch Data Networking
Part #: WS-C3560-8PC-S | SKU: 40655

The Cisco Catalyst 3560 Series is a line of fixed-configuration, enterprise-class switches that include IEEE 802.3af and Cisco pre-standard Power over Ethernet (PoE) functionality in Fast Ethernet and Gigabit Ethernet configurations. These are ideal access layer switches for small enterprise LAN access or branch-office environments. Combining both 10/100/1000 and PoE configurations for maximum productivity and investment protection, they help you deploy new applications such as IP telephony, wireless access, video surveillance, building management systems, and remote video kiosks.

Cisco Catalyst 3560 Series Switch Data Networking

Part Details: Catalyst 3560 Series Switch, (8 10/100 POE+1 T/SFP Standard Image)

Need a different version of the Cisco Catalyst 3560 Series Switch Data Networking? View all 52 configurations

Additional Information

Manufacturer	No
Model Name	Catalyst 3560 Series Switch
Product Condition	No

Catalyst 3560 Series Switch Specs (pdf)

General Information

Product Type:
- Ethernet Switch
- Ethernet Switch
Product Series:
- 3560
- 3560
Brand Name:
- Cisco
- Cisco-IMSourcing
Manufacturer:
- Cisco Systems, Inc
- Cisco-IMSourcing
Product Model:
- 3560-8PC
- 3560-8PC
Product Name:
- Catalyst 3560-8PC Managed Ethernet Switch with PoE
- Catalyst 3560-8PC Managed Ethernet Switch with PoE
Product Line:
- Catalyst
- Catalyst

Interfaces/Ports

Number of Network (RJ-45) Ports:
- 9
- 1
Total Number of Network Ports:
- 9
- 8
Port/Expansion Slot Details:
- 8 x Fast Ethernet Network
- 1 x Gigabit Ethernet Network
- 1 x Gigabit Ethernet Expansion Slot
- 8 x Fast Ethernet Network
- 1 x Gigabit Ethernet Network
- 1 x Gigabit Ethernet Expansion Slot
Number of PoE (RJ-45) Ports: 8

I/O Expansions

Number of Total Expansion Slots:
- 1
- 1
Expansion Slot Type:
- SFP
- SFP
Number of SFP Slots:
- 1
- 1
Shared SFP Slot:
- Yes
- Yes

Media & Performance

Ethernet Technology:
- Fast Ethernet
- Fast Ethernet
- Gigabit Ethernet
Network Technology:
- 10/100/1000Base-T
- 10/100Base-TX
- 10/100/1000Base-T
- 10/100Base-TX
Media Type Supported: Twisted Pair

Other

Additional Information:
- IP Base license (formerly SMI) installed
- IEEE 802.3af and Cisco prestandard Power over Ethernet
- Basic RIP and static routing, upgradable to full dynamic IP routing
- Enterprise-class intelligent services delivered to the network edge

Network & Communication

Layer Supported:
- 2
- 2

Management & Protocols

Manageable: Yes

Extended Details
