Cisco Catalyst 2960 Series Switch Data Networking
Part #: WS-C2960-48TC-S | SKU: 40631

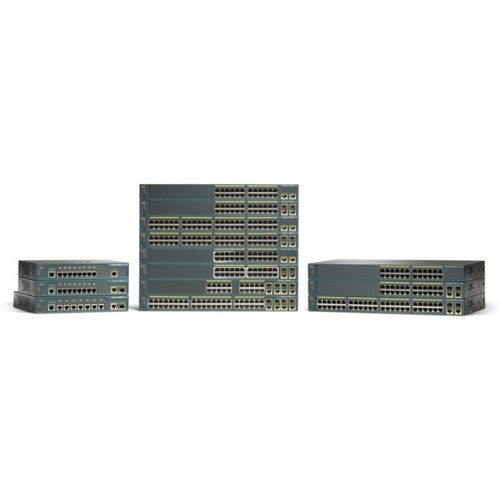

Cisco Catalyst 2960 Series Intelligent Ethernet Switches enable entry-level enterprise, medium-sized, and branch office networks to provide enhanced LAN services. This family of fixed-configuration, standalone devices provide desktop 10/100 Fast Ethernet and 10/100/1000 Gigabit Ethernet connectivity.

Cisco Catalyst 2960 Series Switch Data Networking

Part Details: Catalyst 2960 Series Switch, Catalyst 2960 Switch (48 10/10 Ports + 2 T/SFP LAN LITE Image)

Need a different version of the Cisco Catalyst 2960 Series Switch Data Networking? View all 51 configurations

Additional Information

Manufacturer	No
Model Name	Catalyst 2960 Series Switch
Product Condition	No

Catalyst 2960 Series Switch Specs (pdf)

General Information

Product Type: Ethernet Switch
Product Series: 2960
Brand Name: Cisco
Manufacturer: Cisco Systems, Inc
Product Model: 2960-48TC
Product Name: Catalyst 2960-48TC Managed Ethernet Switch
Product Line: Catalyst

Physical Characteristics

Height: 1.7"
Width: 17.5"
Depth: 9.3"
Weight (Approximate): 8 lb

Interfaces/Ports

Number of Network (RJ-45) Ports: 48
Total Number of Network Ports: 48
Port/Expansion Slot Details:
- 48 x Fast Ethernet Network
- 2 x Gigabit Ethernet Uplink
- 2 x Gigabit Ethernet Expansion Slot
Uplink Port: Yes

Other

Package Contents:
- Catalyst 2960-48TC Managed Ethernet Switch
- Console Cable
- AC Power Cord
- Four Rubber Feed
- Documentation
- Two 19-inch mounting brackets
- Four number-12 Phillips machine screws
- Four number-8 Phillips truss-head screws
- Six number-8 Phillips flat-head screws
- Connector cover for redundant power system
- Cable guide
- One black Phillips machine screw
- Catalyst 2960-48TC Managed Ethernet Switch
- Console Cable
- AC Power Cord
- Four Rubber Feed
- Documentation
- Two 19-inch mounting brackets
- Four number-12 Phillips machine screws
- Four number-8 Phillips truss-head screws
- Six number-8 Phillips flat-head screws
- Connector cover for redundant power system
- Cable guide
- One black Phillips machine screw

Management & Protocols

Manageable: Yes
Management:
- CLI
- Telnet
- Syslog
- DHCP
- Web interface
- CiscoWorks
- SNMPv1, v2c, and v3
- Cisco Express Setup
- IEEE 802.1p QoS
- IEEE 802.1Q VLAN
- Cisco Service Assurance Agent
- Cisco Network Assistant software
- RMON groups (history, statistics, alarms, and events)

Media & Performance

Ethernet Technology: Fast Ethernet
Media Type Supported: Twisted Pair
Network Technology:
- 10Base-T
- 100/1000Base-T
Twisted Pair Cable Standard: Category 5

Power Description

Input Voltage:
- 110 V AC
- 220 V AC
Redundant Power Supply: Yes
Power Source: Power Supply

Memory

Memory Technology: DRAM
Flash Memory: 32 MB
Standard Memory: 64 MB

I/O Expansions

Number of Total Expansion Slots: 2
Expansion Slot Type: SFP
Number of SFP Slots: 2

Network & Communication

Layer Supported: 2

Warranty

Limited Warranty: 90 Day

Extended Details

Barcode Discount

Cisco Catalyst 2960 Series Switch Data Networking Part #: WS-C2960-48TC-S | SKU: 40631
