Cisco Accessories Accessory
Part #: WS-C2960-48TC-L | SKU: 41133

Cisco Accessories Accessory

Part Details: Catalyst 2960 (48 10-100 + 2 T-SFP LAN Base Image)

Need a different version of the Cisco Accessories Accessory? View all 1227 configurations

MSRP: $2,859.98 Price: $2,561.12

Additional Information

Manufacturer	No
Model Name	Accessories
Product Condition	No

General Information

Product Type: Ethernet Switch
Product Series: 2960
Brand Name: Cisco
Manufacturer: Cisco Systems, Inc
Product Model: 2960-48TC-L

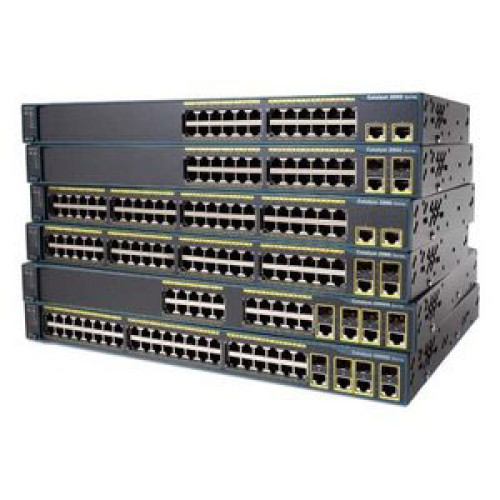

Product Name: Catalyst 2960-48TC Ethernet Switch
Product Line: Catalyst

Physical Characteristics

Height: 1.7"
Width: 17.5"
Depth: 9.3"
Form Factor:
- Rack-mountable
- Wall Mountable
- Desktop
Weight (Approximate): 8 lb

Interfaces/Ports

Number of Network (RJ-45) Ports: 48
Total Number of Network Ports: 48
Port/Expansion Slot Details:
- 48 x Fast Ethernet Network
- 2 x Gigabit Ethernet Uplink
- 2 x Fast Ethernet Expansion Slot
Uplink Port: Yes

Other

Package Contents:
- Catalyst 2960-48TC Managed Ethernet Switch
- Console Cable
- AC Power Cord
- 4 x Rubber Mounting Feet
- Documentation
- 2 x 19 inch Mounting Brackets
- 4 x Number-12 Phillips Machine Screws
- 4 x Number-8 Phillips Truss-head Screws
- 6 x Number-8 Phillips Flat-head Screws
- Connector Cover for RPS
- 2 x Number-4 Pan-head Screws
- Cable Guide
- 1 x Black Phillips Machine Screws
- Catalyst 2960-48TC Managed Ethernet Switch
- Console Cable
- AC Power Cord
- 4 x Rubber Mounting Feet
- Documentation
- 2 x 19 inch Mounting Brackets
- 4 x Number-12 Phillips Machine Screws
- 4 x Number-8 Phillips Truss-head Screws
- 6 x Number-8 Phillips Flat-head Screws
- Connector Cover for RPS
- 2 x Number-4 Pan-head Screws
- Cable Guide
- 1 x Black Phillips Machine Screws
Additional Information:
- Dual-purpose uplink port has one 10/100/1000 Ethernet port and one Small Form-Factor Pluggable (SFP)-based Gigabit Ethernet port, with one port active at a time
- LAN Base Image installed
- Configurable up to 8000 MAC addresses
- Configurable up to 255 IGMP groups
- Superior Redundancy for Fault Backup
- Integrated Cisco IOS Software Features for Bandwidth Optimization
- Advanced QoS
- Granular Rate Limiting
- Networkwide Security Features

Management & Protocols

Manageable: Yes
Management:
- Cisco Network Assistant
- CiscoWorks Support
- Device manager
- Cisco Express Setup
- CiscoView application
- Cisco Network Assistant Software
- Remote Monitoring (RMON)
- Trivial File Transfer Protocol (TFTP) reduces the cost of administering software upgrades by downloading from a centralized location
- Network Timing Protocol (NTP) provides an accurate and consistent timestamp to all intranet switches
- Cisco IOS CLI support provides a common user interface and command set with all Cisco routers and Cisco Catalyst desktop switches
- Cisco Service Assurance Agent (SAA) support facilitates service-level management throughout the LAN
- Switching Database Manager templates for security and QoS allow administrators to easily adjust memory allocation to the desired features based on deployment-specific requirements
- VLAN trunks can be created from any port using standards-based 802.1q tagging
- Up to 255 VLANs per switch or stack and up to 128 spanning-tree instances per switch are supported.
- Four thousand VLAN IDs are supported
- Voice VLAN simplifies telephony installations by keeping voice traffic on a separate VLAN for easier administration and troubleshooting
- Cisco VTP supports dynamic VLANs and dynamic trunk configuration across all switches
- SNMP v1, v2c, and v3 and Telnet interface support delivers comprehensive in-band management, and a CLI-based management console provides detailed out-of-band management
- Cisco Discovery Protocol Versions 1 and 2 help enable a CiscoWorks network-management station for automatic switch discovery

Media & Performance

Ethernet Technology: Fast Ethernet
Media Type Supported: Twisted Pair
Network Technology:
- 10Base-T
- 10/100/1000Base-T
Twisted Pair Cable Standard: Category 5

Power Description

Input Voltage:
- 110 V AC
- 220 V AC
Redundant Power Supply: Yes
Power Source: Power Supply

Memory

Memory Technology: DRAM
Flash Memory: 32 MB
Standard Memory: 64 MB

I/O Expansions

Number of Total Expansion Slots: 2
Expansion Slot Type: SFP
Number of SFP Slots: 2

Network & Communication

Layer Supported: 2

Warranty

Limited Warranty: Lifetime

Extended Details

Cisco Accessories Accessory Part #: WS-C2960-48TC-L | SKU: 41133
