Cisco Accessories Data Networking
Part #: VWIC2-2MFT-T1/E1= | SKU: 60032

Cisco Accessories Data Networking

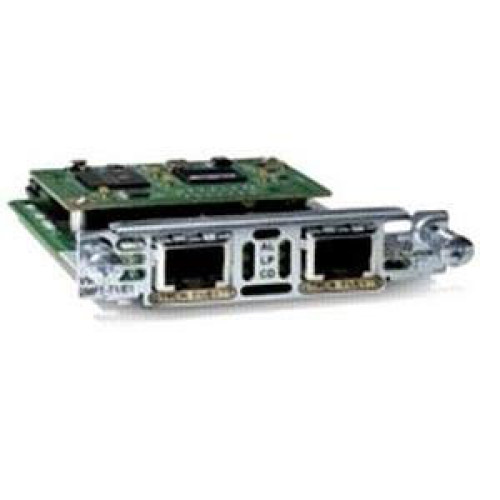

Part Details: Accessories, 2-Port 2nd GEN MultiFlex Trunk V/WAN INT Card

Need a different version of the Cisco Accessories Accessory? View all 1227 configurations

Product Type:
- Voice/WAN Interface Card
- Voice/WAN Interface Card
Brand Name:
- Cisco
- Cisco-IMSourcing
Manufacturer:
- Cisco Systems, Inc
- Cisco-IMSourcing
Product Name:
- Second-Generation 2-Port T1/E1 Multiflex Trunk Voice/WAN Interface Card
- Second-Generation 2-Port T1/E1 Multiflex Trunk Voice/WAN Interface Card

Interfaces/Ports:
- 2 x T1/E1 WAN
- 2 x T1/E1 WAN
Interfaces/Ports Details:
- 2 x RJ-48C T1/E1 WAN
- 2 x RJ-48 T1/E1 Network WAN

Compatibility:
- Cisco 2600XM series, Cisco 2691, Cisco 2800 series, Cisco 3700 series, and Cisco 3800 series routers
- Cisco 1700 Series Modular Access Routers
- NM-HDV
- NM-HDV2
- NM-HD-2VE
- NM-2W
- NM-1FE1R2W
- NM-1FE2W-V2
- NM-2FE2W-V2
- Cisco 2600XM series, Cisco 2691, Cisco 2800 series, Cisco 3700 series, and Cisco 3800 series routers
- Cisco 1700 Series Modular Access Routers
- NM-HDV
- NM-HDV2
- NM-HD-2VE
- NM-2W
- NM-1FE1R2W
- NM-1FE2W-V2
- NM-2FE2W-V2
- Cisco Routers Series:
- 2600XM
- 2691
- 2800
- 3700
- 3800
- 1700
- Cisco Routers Series:
- 2600XM
- 2691
- 2800
- 3700
- 3800
- 1700
Certifications & Standards:
- ITU-T G.164
- ITU-T G.165
- ITU-T G.168
- RFC 1406
- MIBs:
- RFC 1406 MIB
- T1 CSU MIB Support
- Port Module MIB
- T1/E1 Line Status Reporting
Additional Information:
- The card include an integrated data service unit/channel service unit (DSU/CSU)
- Shielded cables STP Cat 5 should be used on E1 ports
- Full support for T1 Facility Data Link (FDL)
- Controller local loopbacks
- Controller remote loopbacks
- Firmware to support T1 and E1 Layer 1 homologation
- User-initiated VWIC reset and field-programmable gate array (FPGA) download
- Voice support (includes DS0-group and PRI-group configuration)
- Drop and insert capability
- MFT VWIC2s have an onboard slot for a multiflex trunk dedicated echo cancellation module (EC-MFT-32 and EC-MFT-64), offering an enhanced echo cancellation capability for demanding network conditions.

Data Transfer Rate:
- 1.54 Mbps T1
- 2.05 Mbps E1
- 1.54 Mbps T1
- 2.05 Mbps E1
Connectivity Media:
- Category 5 STP/UTP
- Category 5 STP/UTP T1/E1

Management:
- MIB and Simple Network Management Protocol (SNMP)
- MIB
- Simple Network Management Protocol (SNMP)
Protocols: SNMP
