Cisco 7304 Series Router Port Adapter Carrier Card Data Networking
Part #: SPA-2XT3/E3= | SKU: 208007

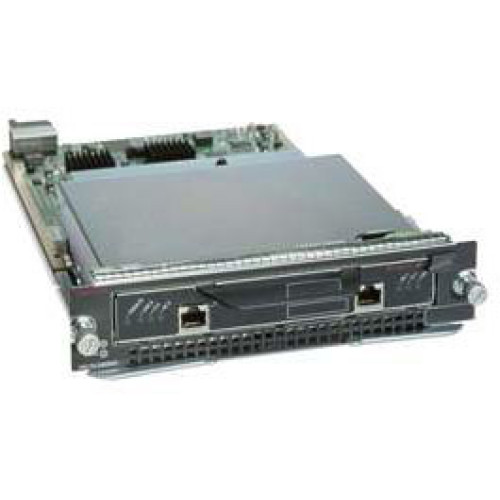

The Cisco 7304 Series Router Port Adapter Carrier Card combines the industry-proven Cisco 7200 and 7500 series port adapters with the performance and scalability of the Cisco 7304 Router. Each Cisco 7304 Series Router Port Adapter Carrier Card can accept one Cisco 7200 and 7500 series WAN/LAN port adapters and with an innovative architecture adapts the port adapter so that it integrates with the Cisco 7304 advanced processing architecture. The flexible media and technology support provides a wide array of connectivity options to enable delivery of next-generation applications while providing an easy migration path for existing networks. The Cisco 7304 Series Router Port Adapter Carrier Card also offers increased flexibility through a wider array of interfaces for the Cisco 7304 Router.

Cisco 7304 Series Router Port Adapter Carrier Card Data Networking

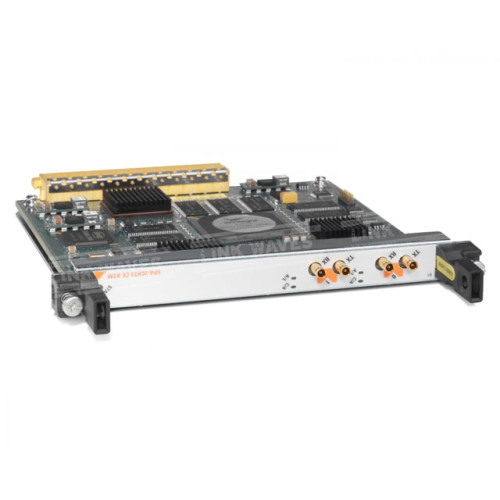

Part Details: 2-port Clear Channel T3/E3 Shared Port Adapter.

Need a different version of the Cisco 7304 Series Router Port Adapter Carrier Card Data Networking? View all 2 configurations

MSRP: $9,031.50 Price: $8,107.93

Additional Information

Manufacturer	No
Model Name	7304 Series Router Port Adapter Carrier Card
Product Condition	No

7304 Series Router Port Adapter Carrier Card Specs (pdf)

General Information

Product Type: Shared Port Adapter
Brand Name: Cisco
Manufacturer: Cisco Systems, Inc
Product Name: 2-Port Clear Channel T3/E3 Shared Port Adapter

Technical Information

Application/Usage: Data Networking

Physical Characteristics

Dimensions: 0.8" Height x 6.8" Width x 7.3" Depth
Weight (Approximate): 12 oz
Form Factor: Hot-swappable

Interfaces/Ports

Interfaces/Ports: 2 x T3/E3
Interfaces/Ports Details: 2 x RF T3/E3

Other

Compatibility:
- SIP 401
- SIP 501
- SIP 601
- Cisco 7600 SIP-200
- Cisco XR 12000 and 12000 Series SIP 600
- SIP 401
- SIP 501
- SIP 601
- Cisco 7600 SIP-200
- Cisco XR 12000 and 12000 Series SIP 600
Additional Information:
- Spare Product
- 1.0/2.3 RF connector (75-ohm impedance)
- 1.0/2.3 RF to BNC adapter cable option
- C-bit or M23 framing
- Binary 3-zero substitution (B3ZS) line coding
- T3 far-end alarm and control (FEAC) channel support
- Compliant with E3 pulse mask
- 16- and 32-bit cyclic redundancy check (CRC), 16-bit default
- Bit-error-rate-testing (BERT) pattern generation and detection per channel
- Up to 4 independent T3 or E3 ports configurable as either all T3 or all E3 only
- Interoperability with all Cisco T3/E3-capable products and from other leading T3/E3 DSU and Frame Relay equipment vendors

Media & Performance

Data Transfer Rate:
- 44.74 Mbps T3 Full-duplex
- 34.37 Mbps E3 Full-duplex
Connectivity Media: 75-ohm Coaxial

Warranty

Limited Warranty: 90

Management & Protocols

Management: SNMP
