Cisco Accessories Accessory
Part #: PA-2FE-TX= | SKU: CIS41055

Product Type: Port Adapter
Brand Name: Cisco
Manufacturer: Cisco Systems, Inc
Product Name: Port Adapter

Cisco Accessories Accessory

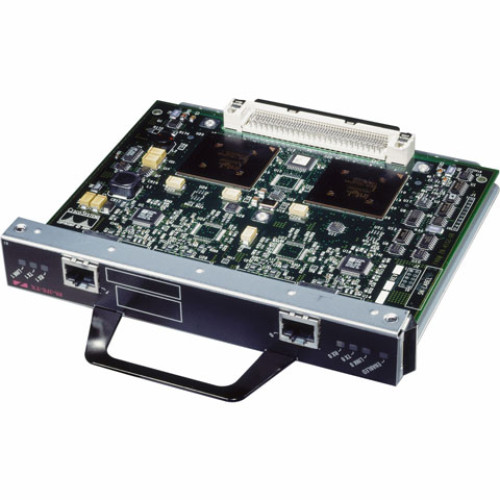

Part Details: Adapter (2-Port Fast Ethernet 100BASE TX Port Adapter)

Need a different version of the Cisco Accessories Accessory? View all 1227 configurations

Compatibility:
- Cisco 7200 and 7500 Series Routers
- Cisco 7200 and 7500 Series Routers
Certifications & Standards:
- IEEE 802.3u
- EIA/TIA-568 or EIA-TIA-568 TSB-36 compliant.<br><br> Safety Certifications:
- UL 1950
- IEC 60950
- CSA C22.2 No. 950
- EN60950
- TS001
- AS/NZS 3260
- EN 60825
- IEC 60825
- 21CFR 1040<br><br> Electromagnetic Emissions Certifications:
- CFR 47, Part 15, Class A
- CISPR-22 Class A
- EN55022A Class B
- VCCI Class B
- CE Marking
- ICES 003 Class A
- AS/NZS3548 Class A
- EN 55024
- EN 50082-1
- ETS 300-386
Additional Information:
- Thermal dissipation: 51 Btu/hr
- Signaling method: 4B/5B block coded, scrambled, with MLT-3 line coding
- Topology: Star/hub

Management:
- SNMP agent v1 (RFC 1155-1157)
- Ethernet MIB (RFC 1398)
- IEEE 802.3 LAN specification for CSMA/CD
- MIB for Network Management of TCP/IP-Based Internets: MIB-II (RFC 1213)
- Definition of Managed Objects for Bridges (RFC 1493)
- Evolution of Interfaces Group of MIB-II (RFC 1573)

Data Transfer Rate:
- 10 Mbps Ethernet Half/Full-duplex
- 100 Mbps Fast Ethernet Half/Full-duplex
Connectivity Media: Category 5 UTP
Distance Supported: 328 ft Category 5 UTP Full-duplex

Humidity: 10% to 90% Non-condensing Relative Humidity
Temperature:
- 32°F (0°C) to 104°F (40°C) Operating
- -4°F (-20°C) to 149°F (65°C) Storage
