Additional Information
| Manufacturer | No |
|---|---|
| Model Name | Accessories |
| Product Condition | No |
General Information
- Product Type: Layer 3 Switch
- Product Series: 3400
- Brand Name: Cisco
- Manufacturer: Cisco Systems, Inc
- Product Model: ME 3400

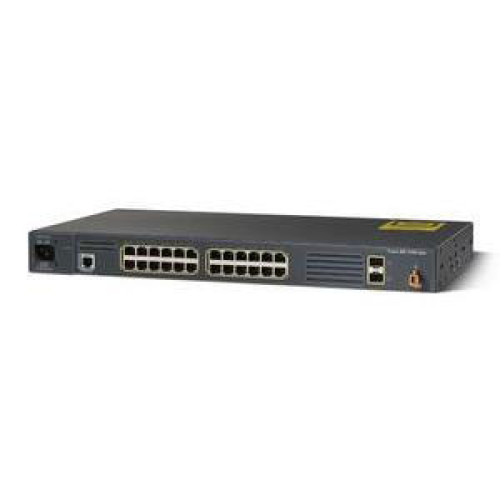

- Product Name: ME 3400 Ethernet Access Switch
Physical Characteristics
- Height: 1.7"
- Width: 17.5"
- Depth: 9.5"
- Form Factor:
- Rack-mountable
- Wall Mountable
- Weight (Approximate): 6.39 lb
Interfaces/Ports
- Number of Network (RJ-45) Ports: 24
- Total Number of Network Ports: 24
- Port/Expansion Slot Details:
- 24 x Fast Ethernet Network
- 2 x Fast Ethernet Expansion Slot
Other
- Package Contents:
- ME 3400 Ethernet Access Switch
- Regulatory Compliance and Safety Information
- Product registration card
- AC power cord
- AC power cord bail
- Two 19-inch rack-mounting brackets (also used for wall-mounting)
- Six Phillips flat-head screws for attaching the brackets to the switch
- Four Phillips machine screws for attaching the brackets to a rack
- One cable guide and one black Phillips machine screw
- Four Phillips truss-head screws (for wall-mounting brackets)
- ME 3400 Ethernet Access Switch
- Regulatory Compliance and Safety Information
- Product registration card
- AC power cord
- AC power cord bail
- Two 19-inch rack-mounting brackets (also used for wall-mounting)
- Six Phillips flat-head screws for attaching the brackets to the switch
- Four Phillips machine screws for attaching the brackets to a rack
- One cable guide and one black Phillips machine screw
- Four Phillips truss-head screws (for wall-mounting brackets)
- Certifications & Standards:
- IEEE:
- IEEE 802.1s
- IEEE 802.1w
- IEEE 802.1x
- IEEE 802.3ad
- IEEE 802.3x
- IEEE 802.1D Spanning Tree Protocol
- IEEE 802.1p CoS
- IEEE 802.1Q VLAN
- IEEE 802.3 10BASE-T
- IEEE 802.3u 100BASE-T
- IEEE 802.3ab 1000BASE-T
- IEEE 802.3z 1000BASE-X
- EMC:
-   FCC Part 15 Class A
- EN 55022B Class A (CISPR22 Class A)
- EN 55024
- EN 300 368
- GR-1089 CORE Class A
- VCCI Class I
- AS/NZS 3548 Class A or AS/NZS CISPR22 Class A
- MIC
- CE
- Safety:
- UL 60950, Third Edition
- UL to CAN/CSA 22.2 No.60950, Third Edition
- TUV/GS to EN 60950 with Amendment A1-A4 and A11
- CB to IEC 60950 with all country deviations
- NOM to NOM-019-SCFI
- AS/NZS 3260, TS001
- CE
- CLEI Coding
- ETSI:
- EN 300 019
- Storage: Class 1.2
- Transportation: Class 2.3
- In-Use: Class 3.2
- NEBS:
- GR-63-CORE
- GR-1089-CORE Level 3, Type 2
- Additional Information:
- Configurable up to 5000 unicast routes
- Configurable up to 1000 IGMP groups and multicast routes
- Up to 1546 bytes for bridging and routing on Fast Ethernet ports
Management & Protocols
- Manageable: Yes
- Management:
- SNMP versions 1, 2, and 3
- MIBs Support
Media & Performance
- Ethernet Technology: Fast Ethernet
- Media Type Supported: Twisted Pair
- Network Technology: 10/100Base-TX
- Twisted Pair Cable Standard: Category 5
I/O Expansions
- Number of Total Expansion Slots: 2
- Expansion Slot Type: SFP
- Number of SFP Slots: 2
Power Description
- Input Voltage:
- 110 V AC
- 220 V AC
Memory
- Memory Technology: DRAM
- Flash Memory: 32 MB
- Standard Memory: 128 MB
Warranty
- Limited Warranty: 90 Day
Network & Communication
- Layer Supported: 3
Reliability
- MTBF: 391823 Hour
