Cisco Accessories Accessory
Part #: HWIC-4ESW-POE= | SKU: CIS41001

Cisco Accessories Accessory

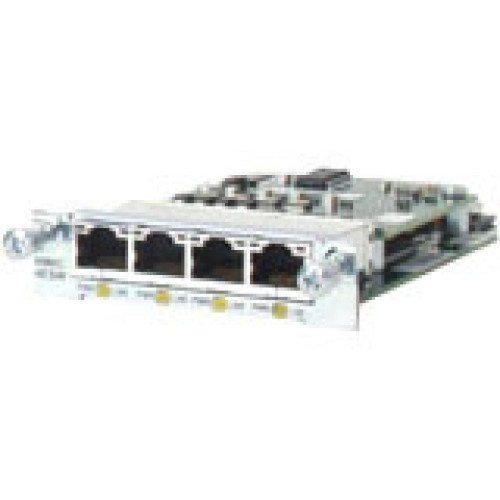

Part Details: 4-Port Ethernet Switch (HWIC with Power Over Ethernet)

Need a different version of the Cisco Accessories Accessory? View all 1227 configurations

Interfaces/Ports: 4 x 10/100Base-TX
Interfaces/Ports Details: 4 x RJ-45 10/100Base-TX Auto-sensing/Auto-negotiating/Auto MDI/MDI-X

Compatibility:
- 2801
- 2811
- 2821
- 2851
- 3825
- 3845
- 2801
- 2811
- 2821
- 2851
- 3825
- 3845
Certifications & Standards:
- IEEE 802.3: 10BASE-T Ethernet
- IEEE 802.3u: 100BASE-TX Fast Ethernet
- IEEE 802.1d: Spanning Tree Protocol
- IEEE 802.1p: CoS for Traffic Prioritization
- IEEE 802.1q: VLAN
- IEEE 802.1x: Security
- IEEE 802.3x: Full Duplex and Flow Control
- IEEE 802.3af: Power over Ethernet
- RFC:
- RFC 2284, PPP Extensible Authentication Protocol (EAP)
- MIBs:
- RFC 1213 IF MIB
- RFC 2037 ENTITY MIB
- CISCO-CDP-MIB
- CISCO-IMAGE-MIB
- CISCO-FLASH-MIB
- OLD-CISCO-CHASSIS-MIB
- CISCO-VTP-MIB
- CISCO-HSRP-MIB
- OLD-CISCO-TS-MIB
- CISCO-ENTITY-ASSET-MIB
- CISCO-ENTITY-FRU-CONTROL-MIB
- BRIDGE MIB (RFC 1493)
- CISCO-VLAN-MEMBERSHIP-MIB
- CISCO-VLAN-IFINDEX-RELATIONSHIP-MIB
- RMON1-MIB
- PIM-MIB
- CISCO-STP-EXTENSIONS-MIB
- OSPF MIB (RFC 1253)
- IPMROUTE-MIB
- CISCO-MEMORY-POOL-MIB
- ETHER-LIKE-MIB (RFC 1643)
- CISCO-ENTITY-FRU-CONTROL-MIB.my
- CISCO-RTTMON-MIB
- CISCO-PROCESS-MIB
- CISCO-COPS-CLIENT-MIB
System Requirements:
- Supported Platforms & Minimum IOS Versions:
- 3845 - 12.3(11)T
- 3825 - 12.3(11)T
- 2851 - 12.3(8)T
- 2821 - 12.3(8)T
- 2811 - 12.3(8)T
- 2801 - 12.3(8)T
Additional Information: Operating Altitude: derate 1.5°C per 1000 feet

Management:
- CiscoWorks network management software
- SNMP and Telnet interface support delivers comprehensive in-band management, and a CLI management console provides detailed out-of-band management
- Embedded Remote Monitoring (RMON) software agent supports four RMON groups (history, statistics, alarms, and events) for enhanced traffic management, monitoring, and analysis
- Switched Port Analyzer (SPAN) port can mirror traffic from one or many ports to another port for monitoring all nine RMON groups with an RMON probe or network analyzer
- Response Time Monitoring (RTTMON) MIB allows users to monitor network performance between the HWIC switch and a remote device
- Virtual LAN
Security Features: 802.1X Port-based Network Access Control
Protocols:
- TCP/IP
- SNMP v1
- SNMPv2
- SNMPv3
- Telnet
- TFTP
- IGMP
- NTP
- STP
- VTP
- CDPv1
- CDPv2
- PPP
- EAP
- OSPF
- HSRP

Data Transfer Rate:
- 10 Mbps Ethernet Half/Full-duplex
- 100 Mbps Fast Ethernet Half/Full-duplex
Connectivity Media:
- Category 3 UTP 10Base-T
- Category 4 UTP 10Base-T
- Category 5 UTP 10/100Base-TX

Humidity:
- 10% to 85% Non-condensing Operating
- 5% to 95% Non-condensing Non-operating
Temperature:
- 32°F (0°C) to 104°F (40°C) Operating
- -4°F (-20°C) to 149°F (65°C) Non-operating
