Cisco Accessories Accessory
Part #: GLC-SX-MM= | SKU: CIS40993

Cisco Accessories Accessory

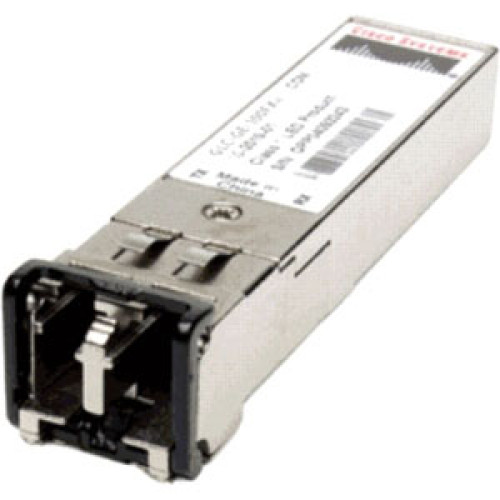

Part Details: GE SFP LC Connector SX TRANSCE Transceiver

Need a different version of the Cisco Accessories Accessory? View all 1227 configurations

Product Type:
- SFP (mini-GBIC)
- SFP (mini-GBIC)
Brand Name:
- Cisco
- Cisco-IMSourcing
Manufacturer:
- Cisco Systems, Inc
- Cisco-IMSourcing
Product Model:
- GLC-SX-MM
- GLC-SX-MM
Product Name:
- GLC-SX-MM 1000Base-SX SFP (mini-GBIC)
- GLC-SX-MM 1000Base-SX SFP (mini-GBIC)

Dimensions:
- 0.3" Height x 0.5" Width x 2.2" Depth
- 0.3" Height x 0.5" Width x 2.2" Depth

Interfaces/Ports:
- 1 x 1000Base-SX LAN
- 1 x 1000Base-SX LAN
Interfaces/Ports Details:
- 1 x LC Duplex 1000Base-SX LAN
- 1 x LC Duplex 1000Base-SX Network LAN

Compatibility:
- Cisco 7304
- Cisco 7301
- Cisco 12000
- Cisco CSS 11500
- Catalyst 2940
- Catalyst 2950
- Catalyst 3750
- Catalyst 6500
- Cisco 7304
- Cisco 7301
- Cisco 12000
- Cisco CSS 11500
- Catalyst 2940
- Catalyst 2950
- Catalyst 3750
- Catalyst 6500
- Cisco 7304
- Cisco 7301
- Cisco 12000
- Cisco CSS 11500
- Catalyst 2940
- Catalyst 2950
- Catalyst 3750
- Catalyst 6500
- Cisco 7304
- Cisco 7301
- Cisco 12000
- Cisco CSS 11500
- Catalyst 2940
- Catalyst 2950
- Catalyst 3750
- Catalyst 6500
Certifications & Standards:
- Safety:
- Laser Class I 21CFR1040
- IEEE:
- IEEE 802.3z
- Safety:
- Laser Class I 21CFR1040
- IEEE:
- IEEE 802.3z
Additional Information:
- Fiber Loss Budgets for 1000BASE-SX:
- Transmit (dBm): Max:-4
- Min:-9.5
- Receive (dBm): Max:0
- Min:-17
- Operating Wavelength:
- 850 nm<br><br><br>

Data Transfer Rate:
- 1 Gbps Gigabit Ethernet
- 1 Gbps Gigabit Ethernet
Connectivity Media:
- 62.5 µm Multi-mode Optical Fiber 1000Base-SX
- 50 µm Multi-mode Optical Fiber 1000Base-SX
- 62.5 µm Multi-mode Optical Fiber 1000Base-SX
- 50 µm Multi-mode Optical Fiber 1000Base-SX
Distance Supported:
- 772 ft 62.5 µm Optical Fiber 160 MHz
- 902 ft 62.5 µm Optical Fiber 200 MHz
- 1640 ft 50.0 µm Optical Fiber 400 MHz
- 1804 ft 50.0 µm Optical Fiber 500 MHz
- 772 ft 62.5 µm Optical Fiber 160 MHz
- 902 ft 62.5 µm Optical Fiber 200 MHz
- 1640 ft 50.0 µm Optical Fiber 400 MHz
- 1804 ft 50.0 µm Optical Fiber 500 MHz

Limited Warranty: 90
Additional Warranty Information:
- Product does not ship from original manufacturer
- Product may not be eligible for original manufacturer warranty, rebates or programs
- Direct replacement warranty provided by Ingram Micro (1 year for components, 3 year for systems)
- Product ships from IMSourcing facility within 2-3 days or from stock
- Product may ship in non-standard packaging
- All returns processed directly from IMSourcing
- Product condition subject to availability
- Replacement parts are from our Service inventory and meet our rigorous inspection and quality standards. Some will be new, some are manufacturer certified refurbished, some are considered 'as new' and have been tested, refurbished or remanufactured. All are fully warranted
- Where applicable, -IM indicates an Ingram Micro certified pre-owned product

Input Current:
- 300 mA Maximum
- 200 mA Typical
- 300 mA Maximum
- 200 mA Typical
Input Voltage:
- 3.1 V DCto 3.5 V DC Maximum
- 3.3 V DC Typical
- 3.1 V DCto 3.5 V DC Maximum
- 3.3 V DC Typical

Temperature:
- 32°F (0°C) to 122°F (50°C) Operating
- -40°F (-40°C) to 185°F (85°C) Storage
- 32°F (0°C) to 122°F (50°C) Operating
- -40°F (-40°C) to 185°F (85°C) Storage
