Cisco Accessory
Part #: CISCO2821 | SKU: 40967

Cisco Accessory

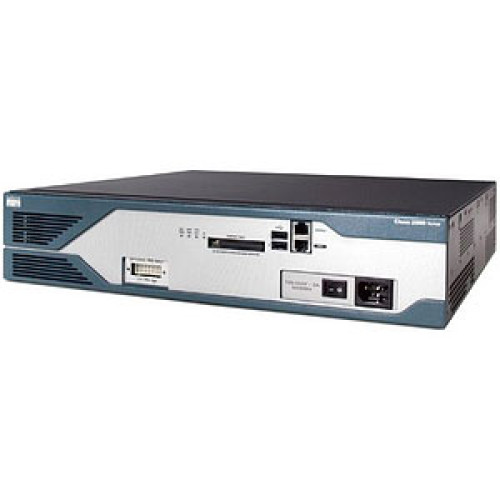

Part Details: 2821 Router (AC 2GE, 4HWICs 3PVDM, 1NME-X, 2AIM and IP Base)

Need a different version of the Cisco Accessories Accessory? View all 1227 configurations

Additional Information

Manufacturer	No
Model Name	Accessories
Product Condition	No

General Information

Product Type: Router
Product Series: 2800
Brand Name: Cisco
Manufacturer: Cisco Systems, Inc
Product Model: 2821
Product Name: 2821 Router

Physical Characteristics

Compatible Rack Unit: 2U
Height: 3.5"
Width: 17.3"
Depth: 16.4"
Form Factor: Rack-mountable

Interfaces/Ports

Number of Network (RJ-45) Ports: 2
Total Number of Ports: 2
USB: Yes
Management Port: Yes

Other

Package Contents:
- 2821 Router
- Cisco 2800 IOS IP BASE
- Device manager for routers (ROUTER-SDM)
- 256MB DDR DRAM Memory factory default for the Cisco 2800 (MEM2800-256D-INC)
- 64MB CF default for Cisco 2800 Series (MEM2800-64CF-INC)
- Blank WAN Interface Card Panel (WIC-BLANK-PANEL)
- Cisco 2800 and 3800 Series Blank network module panel (NM-28/38BLNK-PANEL)
- Cisco 2821/51 AC power supply (PWR-2821-51-AC)
- Power Cord, 110V (CAB-AC)
- RJ-45-to-DB-9 console cable and RJ-45-to-DB-25 modem cable for management access
- One pair of rack-mount brackets with screws for 19-inch racks
- Cisco Product Registration Card
- Cisco 2800 Series Regulatory Compliance and Safety Information document
- Cisco Router and Security Device Manager (SDM) Quick Start Guide document
- Cisco 2800 Series Integrated Services Routers Quick Start Guide
- 2821 Router
- Cisco 2800 IOS IP BASE
- Device manager for routers (ROUTER-SDM)
- 256MB DDR DRAM Memory factory default for the Cisco 2800 (MEM2800-256D-INC)
- 64MB CF default for Cisco 2800 Series (MEM2800-64CF-INC)
- Blank WAN Interface Card Panel (WIC-BLANK-PANEL)
- Cisco 2800 and 3800 Series Blank network module panel (NM-28/38BLNK-PANEL)
- Cisco 2821/51 AC power supply (PWR-2821-51-AC)
- Power Cord, 110V (CAB-AC)
- RJ-45-to-DB-9 console cable and RJ-45-to-DB-25 modem cable for management access
- One pair of rack-mount brackets with screws for 19-inch racks
- Cisco Product Registration Card
- Cisco 2800 Series Regulatory Compliance and Safety Information document
- Cisco Router and Security Device Manager (SDM) Quick Start Guide document
- Cisco 2800 Series Integrated Services Routers Quick Start Guide
Certifications & Standards:
- IEEE 802.3: 10BASE-T
- IEEE 802.3u: 100BASE-TX
- IEEE 802.3ab: 1000BASE-T
- USB 1.1
- Safety:
- UL 60950
- CAN/CSA C22.2 No. 60950
- IEC 60950
- EN 60950-1
- AS/NZS 60950
- Immunity:
- EN300386
- EN55024/CISPR24
- EN50082-1
- EN61000-6-2
- EMC:
- FCC Part 15
- ICES-003 Class A
- EN55022 Class A
- CISPR22 Class A
- AS/NZS 3548 Class A
- VCCI Class A
- EN 300386
- EN61000-3-3
- EN61000-3-2
- TELCOM:
- Interfaces comply with FCC Part 68, CS-03, JATE Technical Conditions, European Directive 99/5/EC and relevant TBR's
Additional Information:
- With the Cisco IOS Software Advanced Security feature set, the Cisco 2821 provides a robust array of common security features such as a Cisco IOS Software Firewall, intrusion prevention, IPsec VPN, Secure Shell (SSH) Protocol Version 2.0, and Simple Network Management Protocol (SNMPv3) in one secure solution set
- Cisco CME is an optional solution embedded in Cisco IOS Software that provides call processing for Cisco IP phones
- AC input surge current: 50A maximum, one cycle (-48V power included)
- Interface Card Slots:
- Each slot can support HWIC, WIC, VIC, or VWIC type modules
- RPS:
- External only, connector for RPS provided by default
- Operation Altitude (derate 1.5°C per 1000 ft):
- 27.5°C @ 15 kft
- 35°C @ 3km/10 kft
- 40°C @ sea level

I/O Expansions

Number of Total Expansion Slots: 11
Expansion Slot Type:
- NME
- EVM
- PVDM
- AIM

Memory

Flash Memory: 64 MB
Standard Memory: 256 MB
Memory Technology: DRAM
Maximum Memory: 1 GB

Power Description

Input Voltage:
- 110 V AC
- 220 V AC

Network & Communication

Ethernet Technology: Gigabit Ethernet
Network Technology: 10/100/1000Base-T

Warranty

Limited Warranty: 90 Day

Extended Details

Cisco Accessory Part #: CISCO2821 | SKU: 40967
