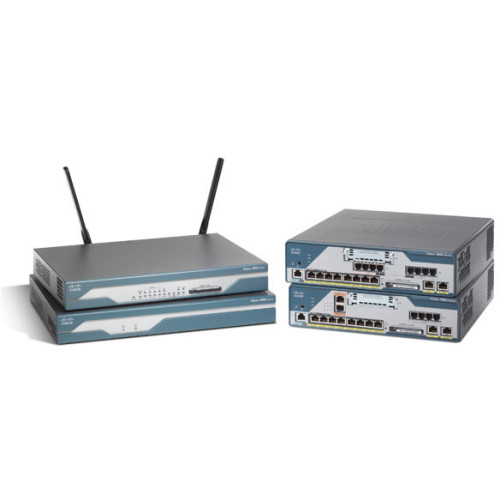

Cisco 1800 Series Data Networking
Part #: CISCO1841 | SKU: 40457

The award-winning Cisco 1800 Series integrated services routers, ideal for small to medium-sized businesses and small enterprise branch offices, enable businesses to reduce costs by deploying a single, resilient system for fast, secure, delivery of multiple mission-critical business services, including Data, Security, Unified Communications and Wireless. The integrated services routing architecture of the Cisco 1800 Series offers features that provide the complete functionality and flexibility to deliver secure Internet and intranet access.

Cisco 1800 Series Data Networking

Part Details: 1800 Series, 1841 Router (Modular Router with 2XFE, 2 WAN S Slots 32 FL-128 DR)

Need a different version of the Cisco 1800 Series Data Networking? View all 12 configurations

Additional Information

Manufacturer	No
Model Name	1800 Series
Product Condition	No

1800 Series Specs (pdf)

General Information

Product Type:
- Router
- Router
Product Series:
- 1800
- 1800
Brand Name:
- Cisco
- Cisco-IMSourcing
Manufacturer:
- Cisco Systems, Inc
- Cisco-IMSourcing
Product Model:
- 1841
- 1841
Product Name:
- 1841 Router
- 1841 Integrated Service Router

Physical Characteristics

Height:
- 1.7"
- 1.7"
Width:
- 13.5"
- 13.5"
Depth:
- 10.8"
- 10.8"
Form Factor:
- Desktop
- Wall Mountable
- Desktop
- Rack-mountable
Weight (Approximate):
- 6 lb
- 6 lb
Compatible Rack Unit: 1U

Interfaces/Ports

Number of Network (RJ-45) Ports:
- 2
- 2
Total Number of Ports:
- 2
- 2
USB:
- Yes
- Yes
Management Port:
- Yes
- Yes

Other

Package Contents:
- 1841 Router
- Cisco 1841 IOS IP BASE
- Device manager for routers (ROUTER-SDM)
- 32MB Cisco 1800 Compact Flash (MEM1800-32CF)
- Blank WAN Interface Card Panel (WIC-BLANK-PANEL)
- One blue RJ-45-to-DB-9 console cable
- One DB-9-to-DB-25 modem adapter
- Power Cord
- Cisco product registration card
- Regulatory Compliance and Safety Information for Cisco 1840 Routers document
- Cisco Router and Security Device Manager (SDM) Quick Start Guide document
- Cisco 1800 Series Integrated Services Routers (Modular) Quick Start Guide
- 1841 Router
- Cisco 1841 IOS IP BASE
- Device manager for routers (ROUTER-SDM)
- 32MB Cisco 1800 Compact Flash (MEM1800-32CF)
- Blank WAN Interface Card Panel (WIC-BLANK-PANEL)
- One blue RJ-45-to-DB-9 console cable
- One DB-9-to-DB-25 modem adapter
- Power Cord
- Cisco product registration card
- Regulatory Compliance and Safety Information for Cisco 1840 Routers document
- Cisco Router and Security Device Manager (SDM) Quick Start Guide document
- Cisco 1800 Series Integrated Services Routers (Modular) Quick Start Guide
Certifications & Standards:
- IEEE 802.3: 10BASE-T
- IEEE 802.3u: 100BASE-TX
- USB 1.1
- Safety:
- UL60950-1
- CAN/CSA 60950-1
- AS 3260
- EN60950-1
- EMI:
- EN 55022, 1998, class A
- CISPR22, 1997, class A
- CFR47, Part 15, Subpart B, 1995, class A
- EN61000-3-2 Harmonic Current Emission (only for equipment >75W but <16A)
- EN61000-3-3 Voltage Fluctuation and Flicker (only for equipment £16A)
- Immunity:
- CISPR24, 1997 ITE-Immunity characteristics, Limits and methods of measurement
- EN 55024,1998 ITE-Immunity characteristics, Limits and methods of measurement
- EN50082-1, 1997 Electromagnetic compatibility-Generic immunity standard, Part 1
- EN 300 386, 1997 Telecommunications network equipment EMC requirements
- The requirements are covered by the following standards:
- IEC 61000-4-2:1995 Immunity to Electrostatic Discharges
- IEC 61000-4-3:1995 Immunity to Radio Frequency Electromagnetic Fields
- IEC 61000-4-4:1995 Immunity to Electrical Fast Transients
- IEC 61000-4-5:1995 Immunity to Power Line Transients (Surges)
- IEC 61000-4-6:1996 Immunity to Radio Frequency Induced Conducted Disturbances
- IEC 61000-4-11:1995 Immunity to Voltage Dips, Voltage Variations, and Short Voltage Interruptions
- Network homologation:
- USA-TIA-968-A, T1.TRQ.6-2001
- Canada-CS-03
- European Union-RTTE Directive 5/99
- Argentina-CTR 21
- Australia-AS/ACIF S002, S003, S016 , S031, 3043
- Brazil-225-540-788, CTR3, 225-100-717 Edition 3, NET 001/92 1990
- China-ITU-G.992.1, ITU-G.992.1, ITU-G.991.2, CTR3, ITU I.431 1993
- Hong Kong-HKTA 2033, HKTA 2033, HKTA 2014, HKTA 2017 Issue 3 2003, HKTA 2011 Issue 1, HKTA 2011 Issue 2, HKTA 2013 Issue 1
- India-I_DCA_18_02_Jun_99-199, S/ISN-01/02 Issue 1999 S/ISN-02 1 1998, IR/PRI-01/02 Issue 1 1998, S/INT-2W/02 MAY 2001, S/INT-2W/02 MAY 2001
- Israel-U.S. approval accepted
- Japan-Technical condition (DoC acceptance in process)
- Korea-U.S. approval accepted
- Mexico-U.S. approval accepted
- New Zealand-PTC 270/272, CTR 3, ACA 016 Revision 4 1997, PTC 200
- Singapore-IDA TS ADSL1 Issue 1, IDA TS ADSL 2, IDA TS HDSL, IDA TS ISDN 1 Issue 1 1999, IDA TS ISDN 3 Issue 1 1999, IDA TS PSTN 1 Issue 4 , IDA TS PSTN 1 Issue 4, IDA TS PSTN 1 Issue 4
- South Africa-U.S. approval accepted
- Taiwan-U.S. approval accepted
- Safety:
- UL60950-1
- CAN/CSA 60950-1
- AS 3260
- EN60950-1
- EMI:
- EN 55022, 1998, class A
- CISPR22, 1997, class A
- CFR47, Part 15, Subpart B, 1995, class A
- EN61000-3-2
- EN61000-3-3
- Immunity:
- CISPR24, 1997
- EN 55024,1998
- EN50082-1, 1997
- EN 300 386, 1997
- IEC 61000-4-2:1995
- IEC 61000-4-3:1995
- IEC 61000-4-4:1995
- IEC 61000-4-5:1995
- IEC 61000-4-6:1996
- IEC 61000-4-11:1995
Additional Information:
- Interface Card Slots:
- Both slots on the Cisco 1841 router are HWIC slots and provide compatibility with WICs and multiflex trunk (VWICs) interface cards (for data only)
- VoIP support:
- Voice-over-IP (VoIP) pass-through only
- Operating altitude:
- 10,000 feet (3000 meters) @ 77°F (25°C)
- Noise level:
- Normal operating temperature:
- >78°F/25.6°C through
- >104°F/40°C: 42 dBA

Warranty

Limited Warranty:
- 1 Year
- 3 Year
Additional Warranty Information:
- Product does not ship from original manufacturer
- Product may not be eligible for original manufacturer warranty, rebates or programs
- Direct replacement warranty provided by Ingram Micro (1 year for components, 3 year for systems)
- Product ships from IMSourcing facility within 2-3 days or from stock
- Product may ship in non-standard packaging
- All returns processed directly from IMSourcing
- Product condition subject to availability
- Replacement parts are from our Service inventory and meet our rigorous inspection and quality standards. Some will be new, some are manufacturer certified refurbished, some are considered 'as new' and have been tested, refurbished or remanufactured. All are fully warranted
- Where applicable, -IM indicates an Ingram Micro certified pre-owned product

Memory

Flash Memory:
- 32 MB
- 64 MB
Standard Memory:
- 128 MB
- 128 MB
Memory Technology:
- DRAM
- DRAM
Maximum Memory:
- 384 MB
- 384 MB

Power Description

Input Voltage:
- 110 V AC
- 220 V AC
- 110 V AC
- 220 V AC
Power Source:
- Power Supply
- Power Supply
Redundant Power Supply: No
PoE (RJ-45) Port: No

Management & Protocols

Security Features:
- Encryption support in software and hardware:
- DES, 3DES, AES 128, AES 192, AES 256
- DES
- 3DES
- SSL VPN
- IPSec VPN
- URL Filtering
- AES 128/192/256-bit

I/O Expansions

Number of Total Expansion Slots:
- 3
- 7
Expansion Slot Type:
- AIM
- WAN Module
- HWIC
- AIM

Network & Communication

Ethernet Technology:
- Fast Ethernet
- Fast Ethernet
Network Technology:
- 10/100Base-TX
- 10/100Base-TX
VoIP Supported: Yes

Extended Details

Cisco 1800 Series Data Networking Part #: CISCO1841 | SKU: 40457
