Additional Information
| Manufacturer | Cisco |
|---|---|
| Model Name | Accessories |
| Product Condition | No |
General Information
- Product Type: Advanced Integration Module
- Brand Name: Cisco
- Manufacturer: Cisco Systems, Inc

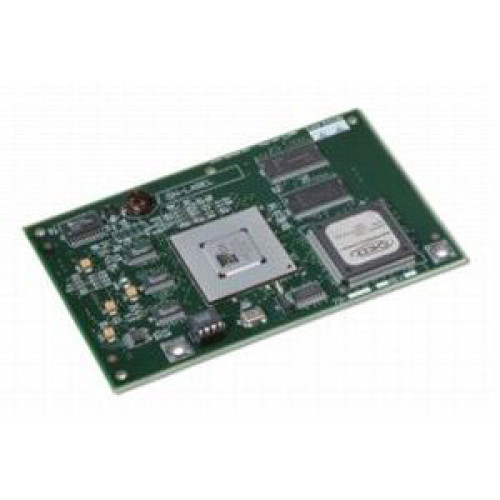

- Product Name: High Performance ATM Advanced Integration Module
Technical Information
- Application/Usage: Voice
Other
- Compatibility:
- Cisco 2851
- Cisco 2821
- Cisco 2811
- 3845
- 3825
- 3745
- 3725
- 3660 series
- 2691
- 2650
- 2600XM Series
- 2600 series
- Cisco 2851
- Cisco 2821
- Cisco 2811
- 3845
- 3825
- 3745
- 3725
- 3660 series
- 2691
- 2650
- 2600XM Series
- 2600 series
- Certifications & Standards:
- H.323
- RFC 1483 support for multiple encapsulations over ATM
- RFC 1577 support for routing over ATM
- ATM standards:
- AAL2
- AAL5
- UNI 3.0
- UNI 3.1
- UNI 4.0
- System Requirements:
- AIM slot
- Required Cisco IOS Image: Any Cisco IOS Plus or SP Services Feature Sets
- Supported Platforms & Minimum IOS Versions:
- Cisco 2851 - 12.3(8)T4
- Cisco 2821 - 12.3(8)T4
- Cisco 2811 - 12.3(8)T4
- 3845 - 12.3(11)T
- 3825 - 12.3(11)T
- 3745 - 12.2(11)YT or 12.2(13)T
- 3725 - 12.2(11)YT or 12.2(13)T
- 3660 series - 12.2.4T
- 2691 - 12.2(11)YT or 12.2(13)T
- 2650 - 12.2.4T
- 2600XM Series - 12.2(8)T1
- 2600 series - 12.2.4T
- Additional Information:
- ATM Edge Connectivity
- It requires VWIC-1MFT-T1, VWIC-1MFT-E1, VWIC-2MFT-T1, or VWIC-2MFT-E1 Voice/Wan Inetrface Card
- All voice interface cards are supported: FXS, FXO, Analog-DID, E&M, and BRI
- The AIM-ATM supports the following ATM services:
- Supports up to four ATM T1/E1 ports per AIM, using two 2-port multiflex T1/E1 VWICs in WIC slots, NM-xFE2W, NM-2W, or NM-HDV
- ATM class of service (CoS) features CBR, VBR-nrt, VBR-rt, ABR, and UBR
- AAL5: H.323 VoIP, up to four T1/E1 channels of AAL5 (with IMA support)
- VoATM-AAL2 (trunked only)
- If used in conjunction with a T1/E1 multiflex trunk voice/WAN interface card (VWIC-MFT) for circuit-mode data and frame-mode data over ATM infrastructures
- Supports QoS features
- Permanent virtual circuit (PVC) and switched virtual circuits (SVC) support, where SVC is for data only
- ATM Forum UNI 3.0, UNI 3.1, and UNI 4.0
- LAN Emulation 2.0 Client and Server
- Per VC queuing for segmentation
- Support for up to 1024 AAL5 VCs for data/voice features
- Support for up to1024 AAL2 VCs with up to 255 subchannels each for voice per AIM
- 1-Kbps resolution for sustained cell rate (SCR) and peak cell rate (PCR)
- 32-Kbps minimum traffic rate
- 13-bit range for VPI/VCI per interface
- Maximum Burst Size (MBS) is up to 255 cells per VC
- Dynamic management of the cell scheduler table
- Operations and management (OAM) support (F5)
- Early Packet Discard
- AAL5 reassembly time-outs
- AAL2 subcell multiplexing support
Management & Protocols
- Protocols:
- ATM
- RSVP
- MpoA
- PPPoA
- NHRP
- VoIP
- VoATM
Environmental Conditions
- Humidity:
- 10% to 85% Non-condensing Relative Humidity Operating
- 10% to 85% Non-condensing Relative Humidity Non-operating
- Temperature:
- 32°F (0°C) to 104°F (40°C) Operating
- -4°F (-20°C) to 149°F (65°C) Non-operating
Warranty
- Limited Warranty: 90
