Brecknell 6700U Series Scale

6710U, 15 kg x 0.005 kg / 30 lb x 0.01 lb (9" cable with remote and magnetic mounting display)

MSRP: $785.00 Price: $656.10

See Price in Cart (Why?)

Product was successfully added to your shopping cart.

Continue Shopping

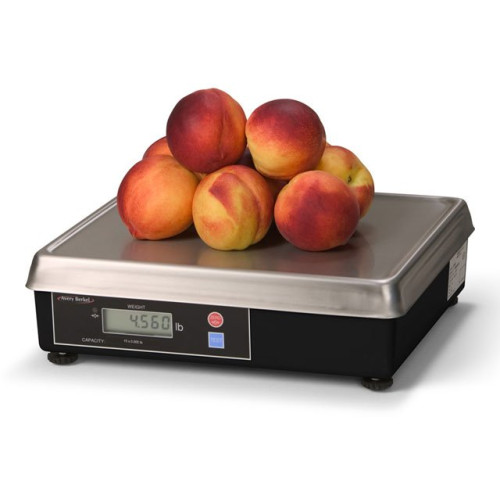

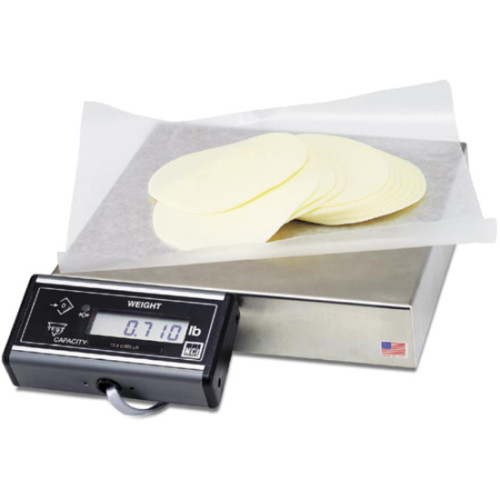

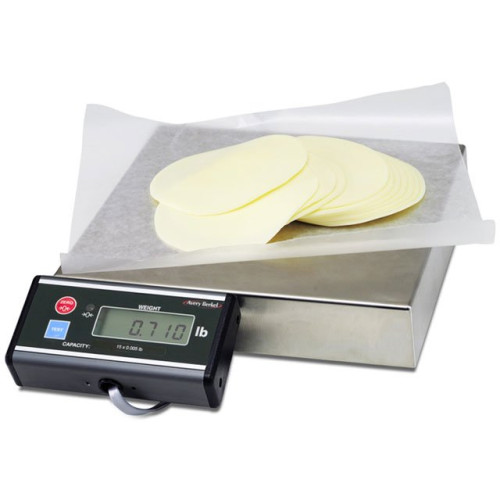

Brecknell 6710 Scale
Part #: 9504-16452 | SKU: 177936

The Brecknell 6710 is a standard point-of-sale interface scale for linking to electronic cash registers or POS systems. It features a six digit LCD external display with large 0.5" characters, tactile keys.The Brecknell is accurate and reliable since it's electronics ensure repeatable weight measurements and troublefree operation. The 6710 is easy to install because of it's Bi-directional 9-pin RS232 port. It also interfaces to most electronic cash registers and point-of-sale software programs.

Brecknell 6710 Scale

Part Details: Avery Weigh-Tronix Berkel 6710 Digital POS Scale - Steel

Need a different version of the Brecknell 6710 Scale? View all 4 configurations

Additional Information

Manufacturer	No
Model Name	6710
Product Condition	No

6710 Specs (pdf)

Technical Information

Display Type: LCD
Weight Capacity & Resolution: 30lb (0.01lb)
Interfaces/Ports:
- Serial
- Parallel
Input Voltage Range: 120 V AC
Maximum Weight Capacity (SI): 15 kg
Weight Increment (SI): 5 g
Measurement Type: Kilogram
Features: Auto Zero Function
Application/Usage: Grocery Store

General Information

Manufacturer:
- Weigh-Tronix
- Avery Weigh-Tronix
Product Name:
- 6710 POS Scale
- Berkel 6710 Digital POS Scale
Product Type: Digital POS Scale
Product Series: 6700
Brand Name: Avery Weigh-Tronix
Product Model: 6710

Physical Characteristics

Platter Dimensions: 10" x 10"
Dimensions:
- 2.5" (64mm) x 10.4" (264mm) x 10.4" (264mm)
- 2.5" (64mm) x 10.4" (264mm) x x 10.4" (264mm)
Width: 10"
Depth: 10"
Material: Steel Platform

Interfaces/Ports

Interfaces/Ports: DB-9 RS-232 - Serial

Other

Package Contents:
- 6710 POS Scale
- 7 ft. Interface cable
Certifications & Standards:
- Agency Approvals:
- NTEP COC # 95-070
- Canada W&M
- COC AM-5076
- UL Listed
- CSA certified power supply
Additional Information:
- Easy to Read: Six digit LCD external display with large 0.5" characters, tactile keys
- Accurate and Reliable - Quality load cell and electronics ensure repeatable weight measurements and trouble free operation
- Easy to Install: Bi-directional 9-pin RS232 port. Interfaces to most electronic cash registers and point-of-sale software programs
- Quick Disconnects: Makes all cable connections easy
- OPOS Compatible: OPOS developers tool kit available for POS systems integration
- Display Brackets
- 230 VAC, 50 Hz power supply
- Interface cables

Agency Approvals

Agency Approvals:
- United States NTEP Class III, COC #95-070A6
- Canada MOI approval #AM-5076 Rev. 2
- UL
- CSA

Controls/Indicators

Controls:
- Manual control when out of range
- Alternate Calibration Points
Status Indicators: Zero light indicator

Environmental Conditions

Temperature: 41Â°F (5Â°C) to 104Â°F (40Â°C) Operating
Humidity: 10 to 90% Operating Non-condensing

Warranty

Manufacturer Warranty: 1 Year(s)

Display & Graphics

Display Screen Type: LCD

Power Description

Input Voltage: 120 V AC
