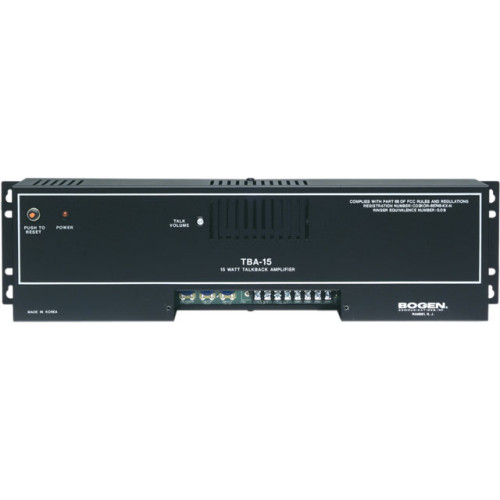

Bogen TBA15 Public Address Equipment
Part #: TBA15 | SKU: 32321

The TBA15 amplifier allows a paging system to be used for hands-free, two-way conversation between a telephone system and remote speakers.The TBA15 uses the system's speakers as microphones and feeds this signal out to a telephone line.When the TBA15 senses an audio signal on the telephone line, it automatically switches its 15W amplifier on and uses the speakers in the system conventionally. Control of speech direction is maintained at the telephone handset.

Bogen TBA15 Public Address Equipment

Part Details: Bogen TBA15 Talkback Amplifier

Need a different version of the Bogen TBA15 Public Address Equipment? View all 1 configurations

Additional Information

Manufacturer	No
Model Name	TBA15
Product Condition	No

General Information

Product Type: Amplifier
Brand Name: Bogen
Manufacturer: Bogen Communications International, Inc
Product Model: TBA15
Product Name: TBA15 Talkback Amplifier

Physical Characteristics

Height: 5.3"
Width: 19"
Depth: 2.9"
Color: Black
Weight (Approximate): 7 lb

Other

Additional Information:
- Features:
- Adjustable switch-back delay prevents chopping of pages and provides smooth 2-way conversations
- Hands-free 2-way conversations through the paging system
- Adjustable sensitivity control for switching from listen to talk
- 600-ohm transformer-coupled telephone line input
- Resettable circuit breaker with thermal protection
- Mute input forces amplifier to go into page mode
- Features:
- Adjustable switch-back delay prevents chopping of pages and provides smooth 2-way conversations
- Hands-free 2-way conversations through the paging system
- Adjustable sensitivity control for switching from listen to talk
- 600-ohm transformer-coupled telephone line input
- Resettable circuit breaker with thermal protection
- Mute input forces amplifier to go into page mode
Certifications & Standards: FCC Part 68

Power Description

Input Voltage: 120 V AC
