APC Back-UPS Series Accessory
Part #: SURTD3KRMXL3U-TF5 | SKU: 81207

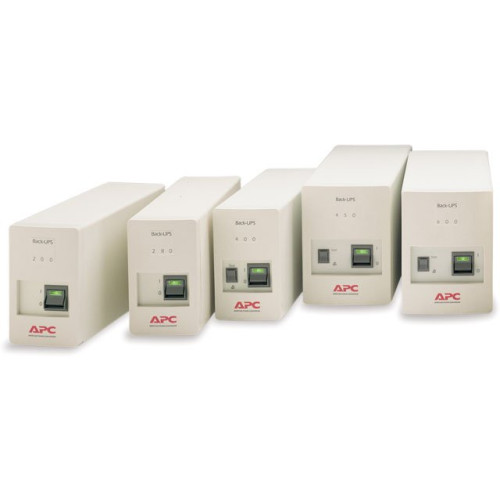

APC Back-UPS ES, 550VA/330W, Input 120V/Output 120V

APC Back-UPS Series Accessory

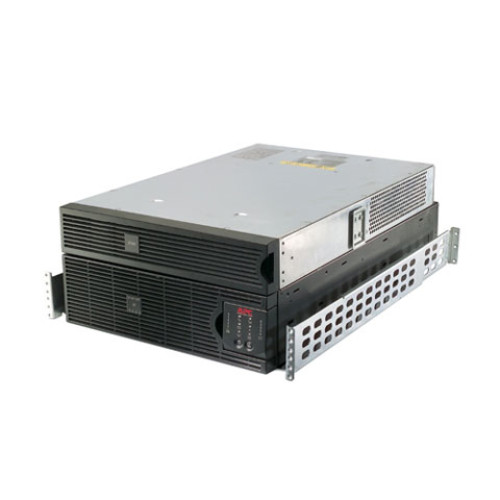

Part Details: APC Smart-UPS RT 3000VA Tower/Rack-Mountable UPS - 3000VA/2100W - 14.1 Minute Full Load - 1 x NEMA L6-30R, 2 x NEMA L6-20R, 12 x NEMA 5-20R

Need a different version of the APC Back-UPS Series Accessory? View all 568 configurations

Additional Information

Manufacturer	No
Model Name	Back-UPS Series
Product Condition	No

Back-UPS Series Specs (pdf)

Technical Information

Receptacles:
- 1 x NEMA L6-20R
- 12 x NEMA 5-20R
- 2 x NEMA L6-30R
Plug/Connector Type: NEMA L6-30P
Bypass Switch:
- Automatic
- Internal
- Manual
Emergency Power OFF: Yes

General Information

Product Type: Dual Conversion Online UPS
Product Series: RT
Brand Name: APC
Manufacturer: American Power Conversion Corp
Product Name: Smart-UPS RT 3000VA Tower/Rack-Mountable UPS
Product Line: Smart-UPS

Physical Characteristics

Height: 8.6"
Width: 19"
Depth: 26"
Rack Height: 5U
Form Factor: Tower/Rack Mountable
Weight (Approximate): 221 lb

Interfaces/Ports

Serial Port: Yes
Total Number of Expansion Slots: 1

Other

Package Contents:
- Smart-UPS RT 3000VA Tower/Rack-Mountable UPS
- CD with Software
- Rack Mounting Support Rails
- Smart UPS Signaling RS-232 Cable
- User Manual
- 2 x Battery Modules
- Smart-UPS RT 3000VA Tower/Rack-Mountable UPS
- CD with Software
- Rack Mounting Support Rails
- Smart UPS Signaling RS-232 Cable
- User Manual
- 2 x Battery Modules
Certifications & Standards:
- CSA
- FCC Part 15 Class A
- UL 1778
- UL 1449
Software Included: PowerChute Management Software

Battery Information

Maximum Battery Recharge Time: 2.50 Hour
Backup/Run Time (Half Load): 33.90 Minute
Backup/Run Time (Full Load): 14.10 Minute
Battery Characteristics: Maintenance-free, Sealed, Spill-proof
Battery Chemistry: Sealed Lead Acid
Hot Swappable: Yes

Power Description

Load Capacity (VA): 3000 VA
Load Capacity (Watt): 2100 W
Input Voltage: 220 V AC
Output Voltage: 208 V AC

Warranty

Limited Warranty: 2 Year

Extended Details

Barcode Discount

APC Back-UPS Series Accessory Part #: SURTD3KRMXL3U-TF5 | SKU: 81207
