APC UPS
Part #: SURTA2000RMXL | SKU: 46893

Products and parts from APC.

APC UPS

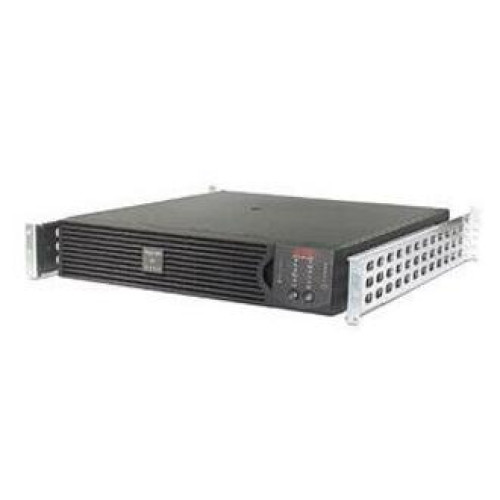

Part Details: APC SMART-UPS RT 2000VA - 2000VA/1400W - 5 Minute Full Load

Need a different version of the APC Accessory? View all 626 configurations

Additional Information

Manufacturer	No
Model Name	Parts
Product Condition	No

General Information

Product Type: Dual Conversion Online UPS
Product Series: RT
Brand Name: APC
Manufacturer: American Power Conversion Corp
Product Name: SMART-UPS RT 2000VA
Product Line: Smart-UPS

Technical Information

Receptacles: 6 x NEMA 5-15R
Plug/Connector Type: NEMA 5-20P
Cord Length: 6 ft
Bypass Switch: Automatic
Emergency Power OFF: Yes

Physical Characteristics

Height: 3"
Width: 17"
Depth: 22"
Rack Height: 3U
Weight (Approximate): 61 lb
Color: Black

Interfaces/Ports

USB: Yes
Serial Port: Yes
Total Number of Expansion Slots: 1

Other

Package Contents:
- SMART-UPS RT 2000VA
- CD with software
- Documentation CD
- Installation Guide
- Rack Mounting support rails
- Smart UPS signalling RS-232 cable
- USB cable
- User Manual
- SMART-UPS RT 2000VA
- CD with software
- Documentation CD
- Installation Guide
- Rack Mounting support rails
- Smart UPS signalling RS-232 cable
- USB cable
- User Manual
Certifications & Standards:
- BSMI
- CSA
- FCC Part 15 Class B
- UL 1778
Additional Information:
- Automatic internal bypass
- Automatic restart of loads after UPS shutdown
- Automatic self-test
- Cold-start capable
- Flash-upgradeable firmware
- Frequency and voltage regulation
- Generator Compatible
- InfraStruXure Manager Compatible

Controls/Indicators

Status Indicators:
- Load bar-graphs
- Battery bar-graphs
- On Line
- On Battery
- Replace Battery
- Overload
- Bypass

Power Description

Load Capacity (VA): 2000 VA
Load Capacity (Watt): 1400 W
Input Voltage: 110 V AC
Output Voltage: 120 V AC
Surge Energy Rating: 540 J
Waveform Type: Sine Wave

Battery Information

Backup/Run Time (Half Load): 15.20 Minute
Backup/Run Time (Full Load): 5 Minute
Battery Characteristics: Spill-proof, Maintenance-free
Battery Chemistry: Sealed Lead Acid
Hot Swappable: Yes

Management

Battery Management: Intelligent Battery Management
Alarm:
- On Battery
- Low Battery
- Overload

Warranty

Limited Warranty: 2 Year

Environmental Conditions

Temperature: 122°F (50°C)

Extended Details

Barcode Discount

APC UPS Part #: SURTA2000RMXL | SKU: 46893
