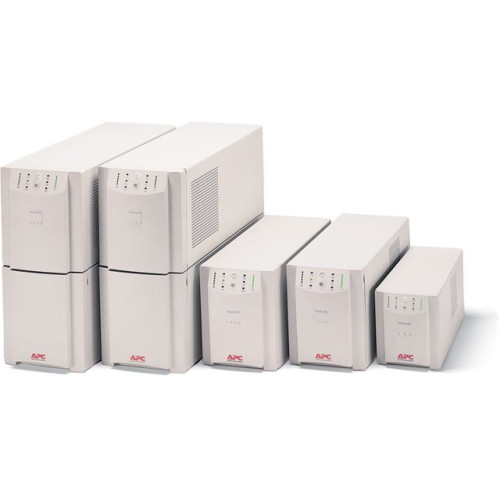

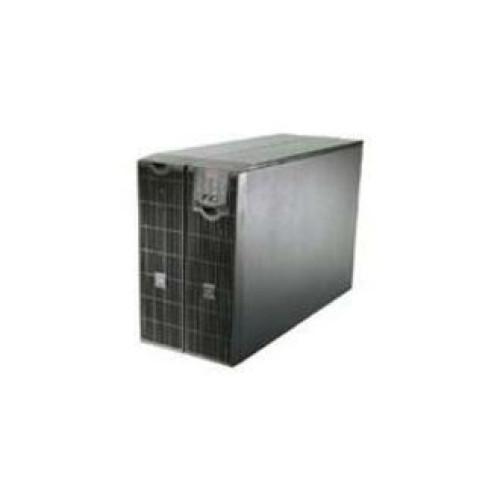

APC Smart-UPS Series UPS
Part #: SURT5000XLT-1TF3 | SKU: 32280

APC Rack Automatic Transfer Switch , Input: 208V , Input Connections: NEMA L6-20P , Cord Length: 6 feet ( 1.83 meters ) , Output: 208V , Output Connections: NEMA L6-20R

APC Smart-UPS Series UPS

Part Details: APC Smart-UPS 5000VA Rack/Tower with Transformer - 5000VA/3500W - 5 Minute Full Load - 8 x NEMA 5-20R, 1 x NEMA L14-30R, 4 x NEMA L6-20R, 2 x NEMA L6-30R

Need a different version of the APC Smart-UPS Series Accessory? View all 57 configurations

Additional Information

Manufacturer	No
Model Name	Smart-UPS Series
Product Condition	No

Technical Information

Receptacles:
- 8 x NEMA 5-20R
- 1 x NEMA L14-30R
- 4 x NEMA L6-20R
- 2 x NEMA L6-30R
Plug/Connector Type: NEMA L6-30P
Cord Length: 10 ft
Bypass Switch: Automatic & Manual
Emergency Power OFF: Yes

General Information

Product Type: Dual Conversion Online UPS
Product Series: RT
Brand Name: APC
Manufacturer: American Power Conversion Corp
Product Name: Smart-UPS 5000VA Rack/Tower with Transformer
Product Line: Smart-UPS

Physical Characteristics

Height: 10"
Width: 17"
Depth: 26"
Rack Height: 6U
Form Factor: Tower/Rack Mountable
Weight (Approximate): 245 lb
Color: Black

Interfaces/Ports

Serial Port: Yes

Other

Package Contents:
- Smart-UPS 5000VA Rack/Tower with Transformer
- CD with software
- Service Manual
- Smart UPS signalling RS-232 cable
- User Manual
- Web/SNMP Management Card
- Smart-UPS 5000VA Rack/Tower with Transformer
- CD with software
- Service Manual
- Smart UPS signalling RS-232 cable
- User Manual
- Web/SNMP Management Card
Certifications & Standards:
- CSA
- FCC Part 15 Class A
- UL 1778
- UL 1449
Additional Information:
- Automatic restart of loads after UPS shutdown
- Automatic self-test
- Cold-start capable
- Disconnected battery notification
- Generator compatible
- Plug-and-Play external batteries
- Power conditioning
- Predictive failure notification

Controls/Indicators

Status Indicators:
- Load bar-graphs
- Battery bar-graphs
- On Line
- On Battery
- Replace Battery
- Overload
- Bypass

Power Description

Load Capacity (VA): 5000 VA
Load Capacity (Watt): 3500 W
Input Voltage: 220 V AC
Output Voltage: 208 V AC
Surge Energy Rating: 480 J
Waveform Type: Sine Wave

Management

Network Management: SNMP Manageable
Battery Management: Intelligent Battery Management
Alarm:
- On Battery
- Low Battery
- Overload

Battery Information

Backup/Run Time (Half Load): 15.40 Minute
Backup/Run Time (Full Load): 5 Minute
Battery Characteristics: Spill-proof, Maintenance-free
Battery Chemistry: Sealed Lead Acid
Hot Swappable: Yes

Warranty

Limited Warranty: 2 Year

Environmental Conditions

Temperature: 113°F (45°C)
