APC Smart-UPS Series UPS
Part #: SUA750 | SKU: 24313

APC Rack Automatic Transfer Switch , Input: 208V , Input Connections: NEMA L6-20P , Cord Length: 6 feet ( 1.83 meters ) , Output: 208V , Output Connections: NEMA L6-20R

APC Smart-UPS Series UPS

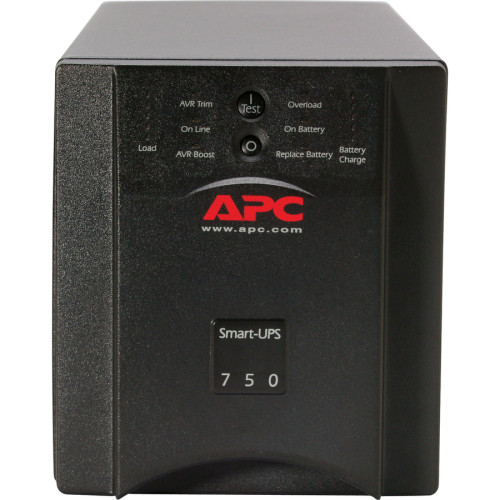

Part Details: Smart-UPS 750VA USB and Serial 120V

Need a different version of the APC Smart-UPS Series Accessory? View all 57 configurations

Additional Information

Manufacturer	No
Model Name	Smart-UPS Series
Product Condition	No

General Information

Product Type: Line-interactive UPS
Brand Name: APC
Manufacturer: American Power Conversion Corp
Product Name: Smart-UPS 750VA
Product Line: Smart-UPS

Technical Information

Receptacles: 6 x NEMA 5-15R
Plug/Connector Type: NEMA 5-15P
Cord Length: 6 ft
Emergency Power OFF: Optional

Physical Characteristics

Height: 6"
Width: 5"
Depth: 14"
Weight (Approximate): 29 lb
Color: Black

Interfaces/Ports

USB: Yes
Serial Port: Yes
Total Number of Expansion Slots: 1

Other

Package Contents:
- Smart UPS 750VA
- CD with software
- Smart UPS signalling RS-232 cable
- USB cable
- User Manual
- Smart UPS 750VA
- CD with software
- Smart UPS signalling RS-232 cable
- USB cable
- User Manual
Certifications & Standards:
- BSMI
- CSA
- FCC Part 15 Class A
- UL 1778
- UL Listed
- VCCI
- UL 1449
Additional Information:
- Temperature compensated battery charging
- Automatic restart of loads after UPS shutdown
- Automatic self test
- Boost and Trim Automatic Voltage Regulation (AVR)
- Serial Connectivity
- USB Connectivity
- Predictive failure notification
- Adjustable voltage transfer points
- Adjustable voltage sensitivity
- Field replaceable power distribution panel

Power Description

Load Capacity (VA): 750 VA
Load Capacity (Watt): 500 W
Input Voltage: 110 V AC
Output Voltage: 120 V AC
Surge Energy Rating: 540 J
Waveform Type: Sine Wave

Controls/Indicators

Status Indicators:
- On Line
- On Battery
- Replace Battery
- Overload Indicators

Battery Information

Backup/Run Time (Half Load): 15.90 Minute
Backup/Run Time (Full Load): 4.60 Minute
Battery Characteristics: Spill-proof, Maintenance-free
Battery Chemistry: Sealed Lead Acid
Hot Swappable: Yes

Management

Battery Management: Intelligent Battery Management
Alarm:
- On Battery
- Low Battery
- Configurable Delay

Environmental Conditions

Temperature: 113°F (45°C)
Thermal Dissipation: 90 BTU/h

Warranty

Limited Warranty: 2 Year

Extended Details
