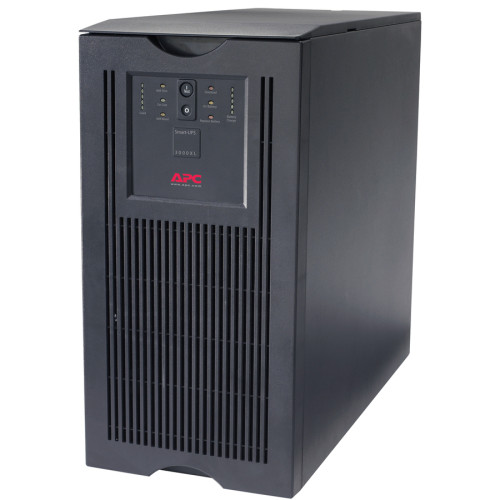

APC Smart-UPS Series UPS
Part #: SUA3000XL | SKU: 36293

APC Rack Automatic Transfer Switch , Input: 208V , Input Connections: NEMA L6-20P , Cord Length: 6 feet ( 1.83 meters ) , Output: 208V , Output Connections: NEMA L6-20R

APC Smart-UPS Series UPS

Part Details: APC - IMSourcing NEW F/S Smart-UPS XL 3000VA Tower/Rack-mountable - 5U Tower - 3 Hour Recharge - 5.50 Minute Stand-by - 110 V AC Input - 9 x NEMA 5-15R, 2 x NEMA 5-20R

Need a different version of the APC Smart-UPS Series Accessory? View all 57 configurations

Additional Information

Manufacturer	No
Model Name	Smart-UPS Series
Product Condition	No

General Information

Product Type: Line-interactive UPS
Product Series: XL
Brand Name: APC
Manufacturer: American Power Conversion Corp
Product Name: Smart-UPS XL 3000VA Tower/Rack-mountable
Product Line: Smart-UPS

Technical Information

Receptacles:
- 9 x NEMA 5-15R
- 2 x NEMA 5-20R
Plug/Connector Type: NEMA L5-30P
Emergency Power OFF: Optional

Physical Characteristics

Height: 17"
Width: 7.7"
Depth: 19.8"
Rack Height: 5U
Form Factor: Tower
Weight (Approximate): 121 lb

Interfaces/Ports

Serial Port: Yes
Total Number of Expansion Slots: 1

Other

Package Contents:
- Smart-UPS XL 3000VA Tower/Rack-mountable
- CD with software
- Smart UPS signaling RS-232 cable
- User manual
- Smart-UPS XL 3000VA Tower/Rack-mountable
- CD with software
- Smart UPS signaling RS-232 cable
- User manual
Certifications & Standards:
- UL 1449
- CSA
- FCC Part 15 Class A
- UL 1778

Battery Information

Maximum Battery Recharge Time: 3 Hour
Number of Batteries: 1
Backup/Run Time (Half Load): 13.60 Minute
Backup/Run Time (Full Load): 5.50 Minute
Battery Characteristics: Spill-proof, Maintenance-free
Battery Chemistry: Sealed Lead Acid

Power Description

Load Capacity (VA): 3000 VA
Load Capacity (Watt): 2700 W
Input Voltage: 110 V AC
Output Voltage: 120 V AC

Warranty

Limited Warranty: 2 Year

Extended Details
