APC Back-UPS Series UPS
Part #: SUA2200XLI | SKU: 155284

APC Back-UPS ES, 550VA/330W, Input 120V/Output 120V

APC Back-UPS Series UPS

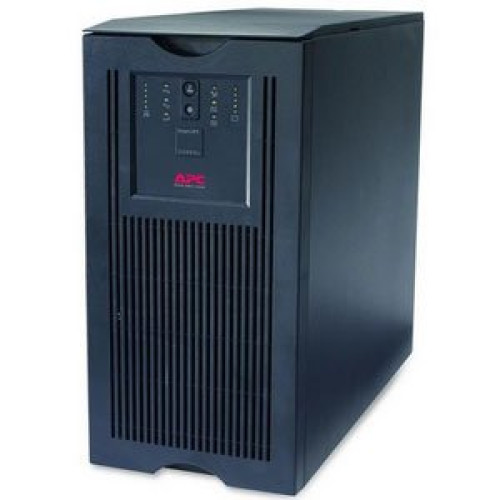

Part Details: APC Smart-UPS XL 2200VA Tower/Rack-mountable UPS - 2200VA/1980W - 9.3 Minute Full Load - 8 x IEC 320-C13, 1 x IEC 320-C19, 2 x IEC Jumper

Need a different version of the APC Back-UPS Series Accessory? View all 568 configurations

Additional Information

Manufacturer	No
Model Name	Back-UPS Series
Product Condition	No

Technical Information

Receptacles:
- 8 x IEC 320-C13
- 2 x IEC Jumper
- 1 x IEC 320-C19
Plug/Connector Type:
- IEC 320-C20
- SCHUKO CEE 7 EU1-16P
- British BS1363A
Emergency Power OFF: Optional

General Information

Product Type: Line-interactive UPS
Product Series: XL
Brand Name: APC
Manufacturer: American Power Conversion Corp
Product Model: SUA2200XLI
Product Name: Smart-UPS XL 2200VA Tower/Rack-mountable UPS
Product Line: Smart-UPS

Physical Characteristics

Height: 17.5"
Width: 8.7"
Depth: 19.5"
Rack Height: 5U
Form Factor: Tower/Rack Mountable
Weight (Approximate): 121 lb

Interfaces/Ports

USB: Yes
Serial Port: Yes
Total Number of Expansion Slots: 1

Other

Package Contents:
- Smart-UPS XL 2200VA Tower/Rack-mountable UPS
- CD with software
- Smart UPS signalling RS-232 cable
- USB cable
- User Manual
- Smart-UPS XL 2200VA Tower/Rack-mountable UPS
- CD with software
- Smart UPS signalling RS-232 cable
- USB cable
- User Manual
Green Compliant: Yes
Green Compliance Certificate/Authority: RoHS
Certifications & Standards:
- UL 1449
- C-tick
- CE
- EN 50091-1
- EN 50091-2
- GOST
- VDE
- UL
- FCC
Software Included: PowerChute Management Software
Additional Information: International Version

Battery Information

Maximum Battery Recharge Time: 3 Hour
Backup/Run Time (Half Load): 26.10 Minute
Backup/Run Time (Full Load): 9.30 Minute
Battery Characteristics: Spill-proof, Maintenance-free
Battery Chemistry: Sealed Lead Acid

Power Description

Load Capacity (VA): 2200 VA
Load Capacity (Watt): 1980 W
Input Voltage: 220 V AC
Output Voltage: 230 V AC

Warranty

Limited Warranty: 2 Year

Extended Details
