APC UPS
Part #: SUA2200R2X106 | SKU: 46873

Products and parts from APC.

APC UPS

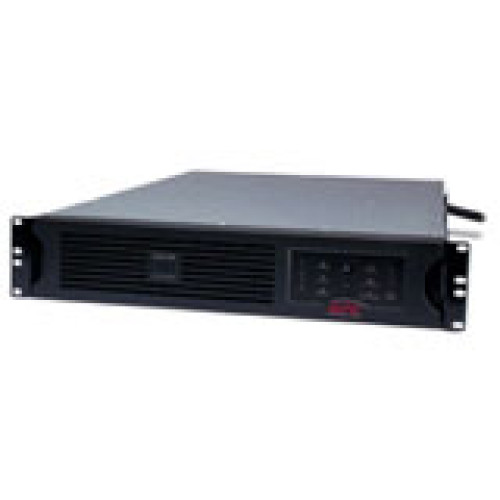

Part Details: APC Smart-UPS 2200VA Rackmountable - 2200VA/1980W - 5.2 Minute Full Load - 6 x NEMA 5-15R - Battery/Surge-protected, 2 x NEMA 5-20R - Battery/Surge-protected

Need a different version of the APC Accessory? View all 626 configurations

Additional Information

Manufacturer	No
Model Name	Parts
Product Condition	No

Technical Information

Receptacles:
- 2 x NEMA 5-20R
- 6 x NEMA 5-15R
Plug/Connector Type: NEMA L5-20P
Bypass Switch: Not Provided
Emergency Power OFF: Yes

General Information

Product Type: Line-interactive UPS
Brand Name: APC
Manufacturer: American Power Conversion Corp
Product Name: Smart-UPS 2200VA Rackmountable
Product Line: Smart-UPS

Physical Characteristics

Height: 3.5"
Width: 19"
Depth: 26"
Rack Height: 2U
Weight (Approximate): 96 lb

Interfaces/Ports

USB: Yes
Serial Port: Yes

Other

Package Contents:
- Smart-UPS 2200VA Rackmountable
- CD with software
- Rack Mounting Brackets
- Rack Mounting support rails
- USB cable
- User Manual
- Smart-UPS 2200VA Rackmountable
- CD with software
- Rack Mounting Brackets
- Rack Mounting support rails
- USB cable
- User Manual
Certifications & Standards:
- CE
- CSA
- C-Tick
- FCC
- UL 1449
- UL 1778
Software Included: PowerChute Software
Additional Information:
- Output Voltage Distortion: Less than 5% at full load
- Crest Factor: Up to 5 : 1
- Replacement battery cartridge quantity: 1
- Units per Pallet: 8
- Automatic Voltage Regulation (AVR)
- Power conditioning
- Automatic restart of loads after UPS shutdown
- Cold-start capable
- Generator compatible
- Disconnected battery notification
- InfraStruXure Manager compatible
- Predictive failure notification

Battery Information

Maximum Battery Recharge Time: 3 Hour
Backup/Run Time (Half Load): 15.70 Minute
Backup/Run Time (Full Load): 5.20 Minute
Battery Characteristics: Spill-proof, Maintenance-free
Battery Chemistry: Sealed Lead Acid
Hot Swappable: Yes

Power Description

Load Capacity (VA): 2200 VA
Load Capacity (Watt): 1980 W
Input Voltage: 110 V AC
Output Voltage: 120 V AC

Warranty

Limited Warranty: 2 Year
