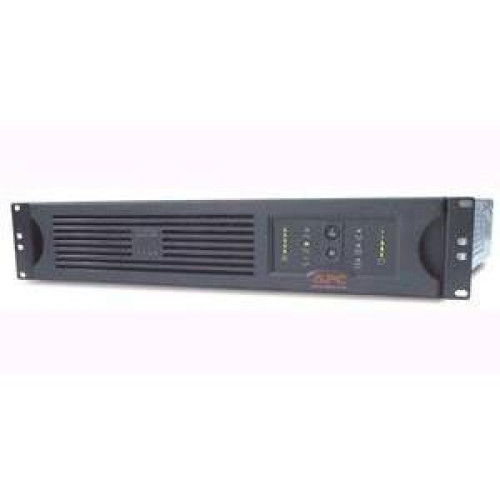

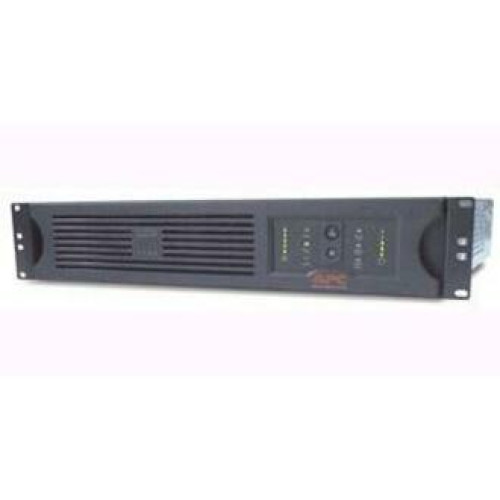

APC Back-UPS Series Accessory
Part #: SUA1500RMUS | SKU: 87198

APC Back-UPS ES, 550VA/330W, Input 120V/Output 120V

APC Back-UPS Series Accessory

Part Details: APC Smart-UPS 1500VA USB & Serial - 1440VA/980W - 7.4 Minute Full Load

Need a different version of the APC Back-UPS Series Accessory? View all 568 configurations

Additional Information

Manufacturer	No
Model Name	Back-UPS Series
Product Condition	No

Back-UPS Series Specs (pdf)

General Information

Product Type: Line-interactive UPS
Brand Name: APC
Manufacturer: American Power Conversion Corp
Product Name: Smart-UPS 1500VA USB & Serial
Product Line: Smart-UPS

Technical Information

Receptacles: 6 x NEMA 5-15R
Plug/Connector Type: NEMA 5-15P
Cord Length: 8 ft
Emergency Power OFF: Optional

Physical Characteristics

Height: 4"
Width: 19"
Depth: 18"
Rack Height: 2U
Form Factor: Tower
Weight (Approximate): 63 lb
Color: Black

Interfaces/Ports

USB: Yes
Serial Port: Yes
Total Number of Expansion Slots: 1

Other

Package Contents:
- Smart-UPS 1500VA USB & Serial
- CD with software
- Rack Mounting support rails
- Smart UPS signalling RS-232 cable
- USB cable
- User Manual
- Smart-UPS 1500VA USB & Serial
- CD with software
- Rack Mounting support rails
- Smart UPS signalling RS-232 cable
- USB cable
- User Manual
Certifications & Standards:
- UL 1449
- CSA
- FCC Part 15 Class A
- UL 1778
Additional Information:
- Boost and Trim Automatic Voltage Regulation (AVR)
- Automatic restart of loads after UPS shutdown
- Temperature-compensated battery charging

Power Description

Load Capacity (VA): 1440 VA
Load Capacity (Watt): 980 W
Input Voltage: 110 V AC
Output Voltage: 120 V AC
Surge Energy Rating: 459 J
Waveform Type: Sine Wave

Controls/Indicators

Status Indicators:
- On Line
- On Battery
- Replace Battery
- Overload
- Wiring Fault

Battery Information

Backup/Run Time (Half Load): 26.50 Minute
Backup/Run Time (Full Load): 7.40 Minute
Battery Characteristics: Spill-proof, Maintenance-free
Battery Chemistry: Sealed Lead Acid
Hot Swappable: Yes

Management

Battery Management: Intelligent Battery Management
Alarm:
- On Battery
- Low Battery
- Configurable Delay

Environmental Conditions

Temperature: 113°F (45°C)
Thermal Dissipation: 171 BTU/h

Warranty

Limited Warranty: 2 Year

Extended Details
