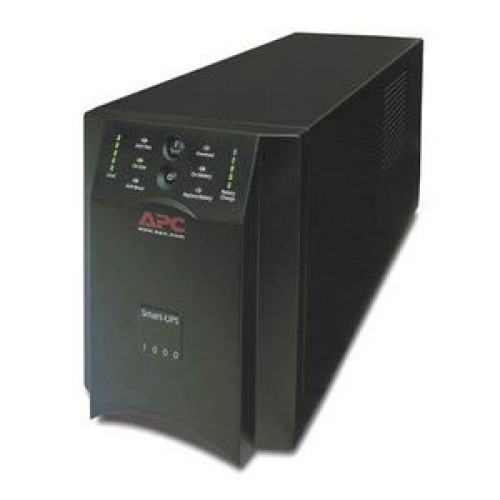

APC Back-UPS Series UPS
Part #: SUA1000US | SKU: 195226

APC Back-UPS ES, 550VA/330W, Input 120V/Output 120V

APC Back-UPS Series UPS

Part Details: APC Smart-UPS 1000VA - 1000VA - 6.1 Minute Full Load - 8 x NEMA 5-15R

Need a different version of the APC Back-UPS Series Accessory? View all 568 configurations

Additional Information

Manufacturer	No
Model Name	Back-UPS Series
Product Condition	No

Back-UPS Series Specs (pdf)

General Information

Product Type: Line-interactive UPS
Brand Name: APC
Manufacturer: American Power Conversion Corp
Product Name: Smart-UPS 1000VA
Product Line: Smart-UPS

Technical Information

Receptacles: 8 x NEMA 5-15R
Plug/Connector Type: NEMA 5-15P
Cord Length: 6 ft
Emergency Power OFF: Optional

Physical Characteristics

Height: 8.5"
Width: 6.7"
Depth: 17.3"
Weight (Approximate): 42.10 lb
Color: Black

Interfaces/Ports

USB: Yes
Serial Port: Yes
Total Number of Expansion Slots: 1

Other

Package Contents:
- CD with software
- Smart UPS signalling RS-232 cable
- User Manual
- USB cable
- CD with software
- Smart UPS signalling RS-232 cable
- User Manual
- USB cable
Certifications & Standards:
- BSMI
- CSA
- FCC Part 15 Class A
- UL 1778
Additional Information:
- Automatic Self Test
- Automatic Voltage Regulation (AVR)
- Building wiring fault indicator
- Load Meter
- Network-grade line conditioning
- Replace Batt Indicator
- Software
- USB Connectivity
- User Replaceable batteries
- Wide input voltage range

Battery Information

Maximum Battery Recharge Time: 3 Hour
Backup/Run Time (Half Load): 20.60 Minute
Backup/Run Time (Full Load): 6.10 Minute
Battery Characteristics: Maintenance-free
Battery Chemistry: Sealed Lead Acid
Hot Swappable: Yes

Power Description

Load Capacity (VA): 1000 VA
Power Consumption: 670 W
Input Voltage: 110 V AC
Output Voltage: 120 V AC
Surge Energy Rating: 459 J
Waveform Type: Sine Wave

Management

Network Management: SNMP Manageable
Battery Management: Intelligent Battery Management
Alarm:
- On Battery
- Low Battery

Environmental Conditions

Temperature: 113°F (45°C)
Thermal Dissipation: 100 BTU/h
Sound Emission: 41 dB(A)

Warranty

Limited Warranty: 2 Year

Controls/Indicators

Status Indicators: LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators

Extended Details

Barcode Discount

APC Back-UPS Series UPS Part #: SUA1000US | SKU: 195226
